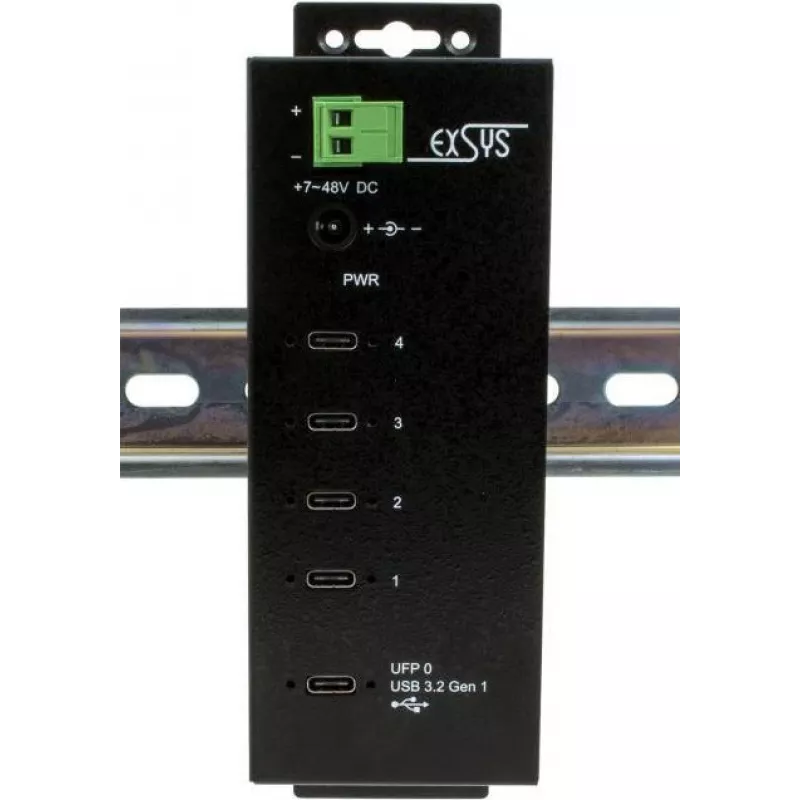

EXSYS EX-1144HMVS Hub USB-C, USB 3.2 Gen 1, Negro

The EXSYS EX-1144HMVS is a robust, industrial-grade USB-C hub with four USB 3.2 Gen1 (formerly USB 3.0 or 3.1 Gen1) C downstream ports. It supports data transfer rates up to 5 Gbit/s and is backward compatible to USB 1.1. The hub can be powered via USB bus power, DC jack, or a two-wire terminal block (+7V to +48V DC).

Key features

• USB 3.2 Gen1 metal hub with four C downstream ports
• 15KV ESD overvoltage protection for each output
• Power supply +7V to +48V DC via terminal block or DC jack
• Power supply alternatively via USB bus +5V
• Easy installation with integrated DIN rail mounting
• Compact industrial design
• Automatic detection of data transfer rate for connected peripherals
• 900mA power on all 4 ports
• Automatic detection of input polarity on power terminal block
• Supports Multi Transaction Translator (TT) per hub
• Rugged metal housing
• 1 x LED power indicator

Specifications

• Brand: Exsys
• MPN: EX-1144HMVS
• Product colour: Black
• Data transfer rate: up to 5 Gbit/s
• Backward compatible to USB 1.1
• Power input: +7V to +48V DC via terminal block or DC jack; USB bus +5V
• Ports: 4 x USB-C downstream
