Hub USB CLUB3D USB 3.2 Gen1 Type-A con 3 puertos y Gigabit Ethernet

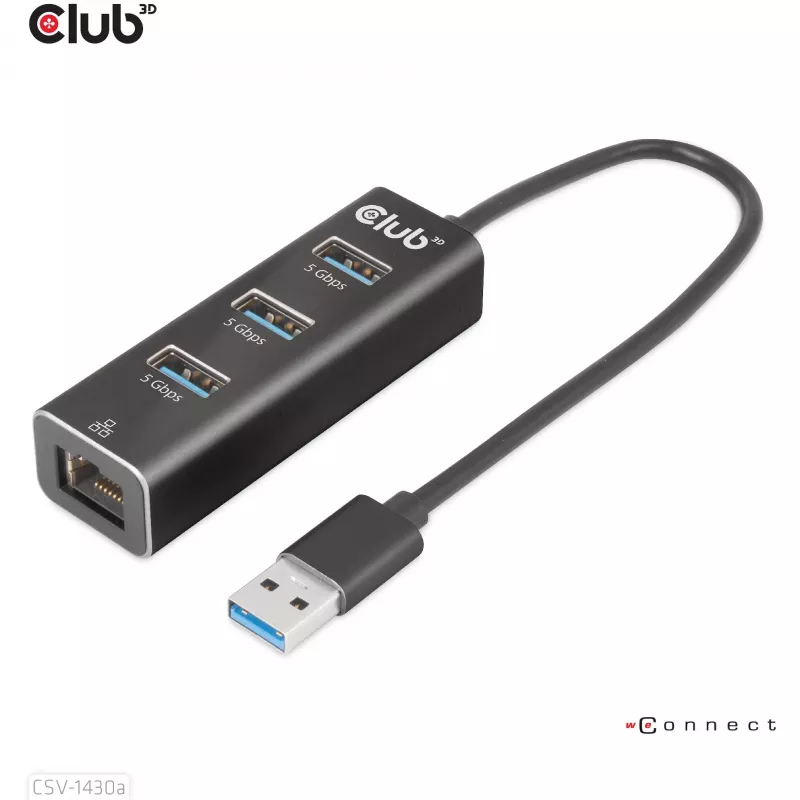

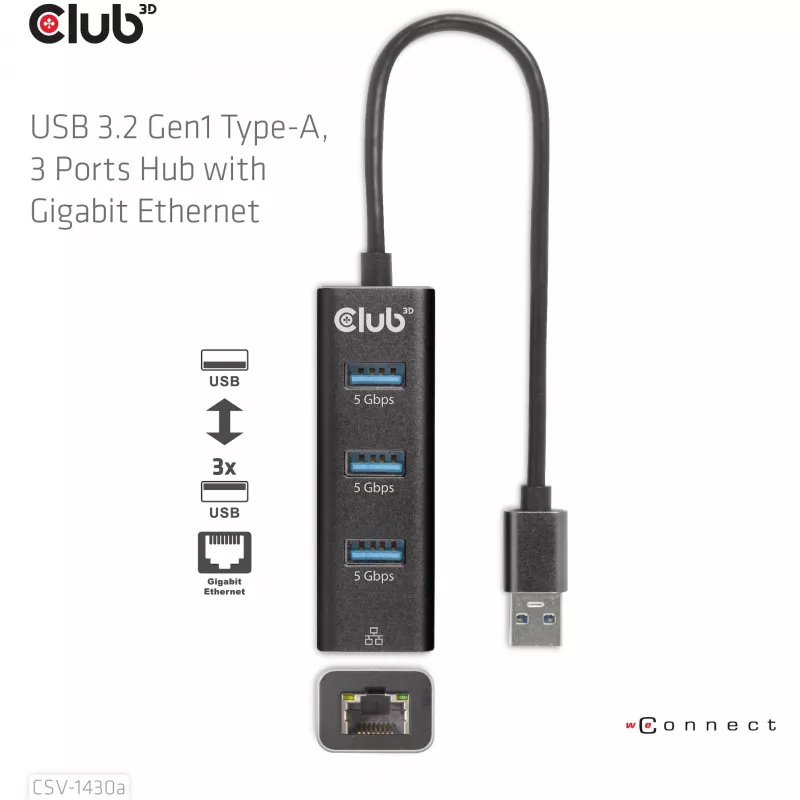

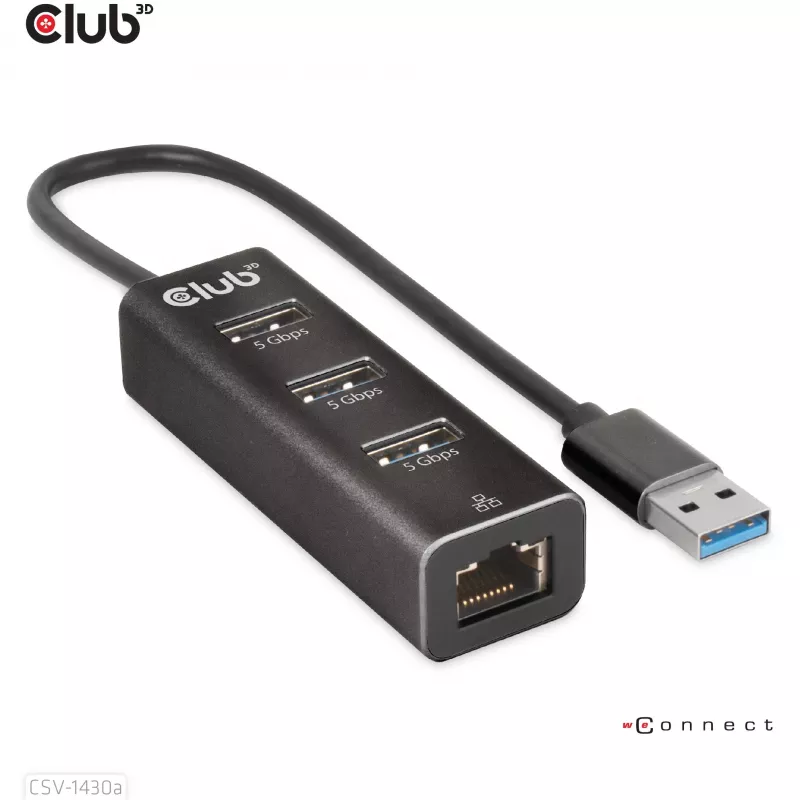

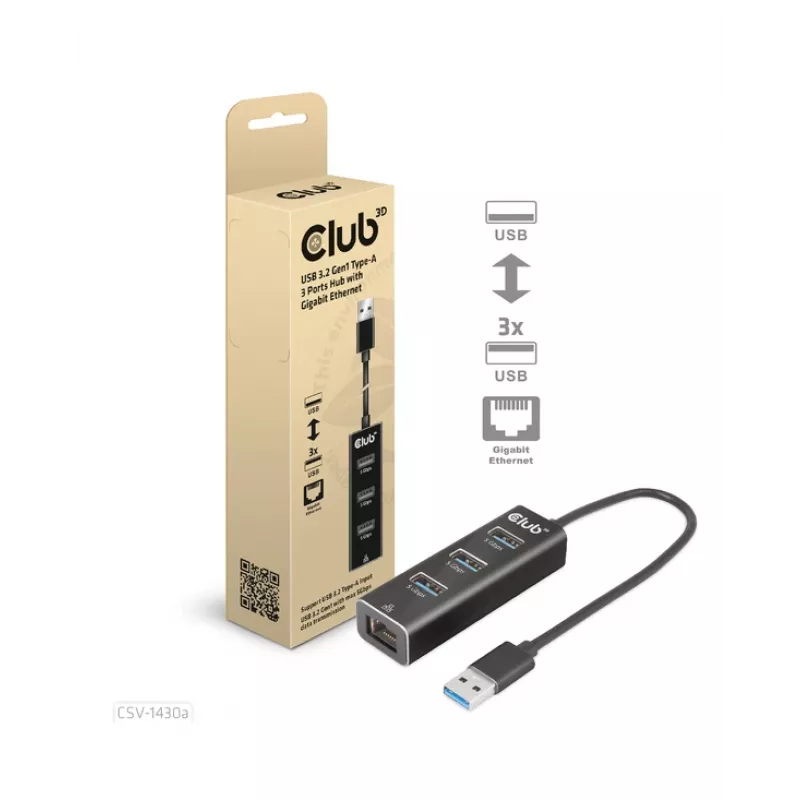

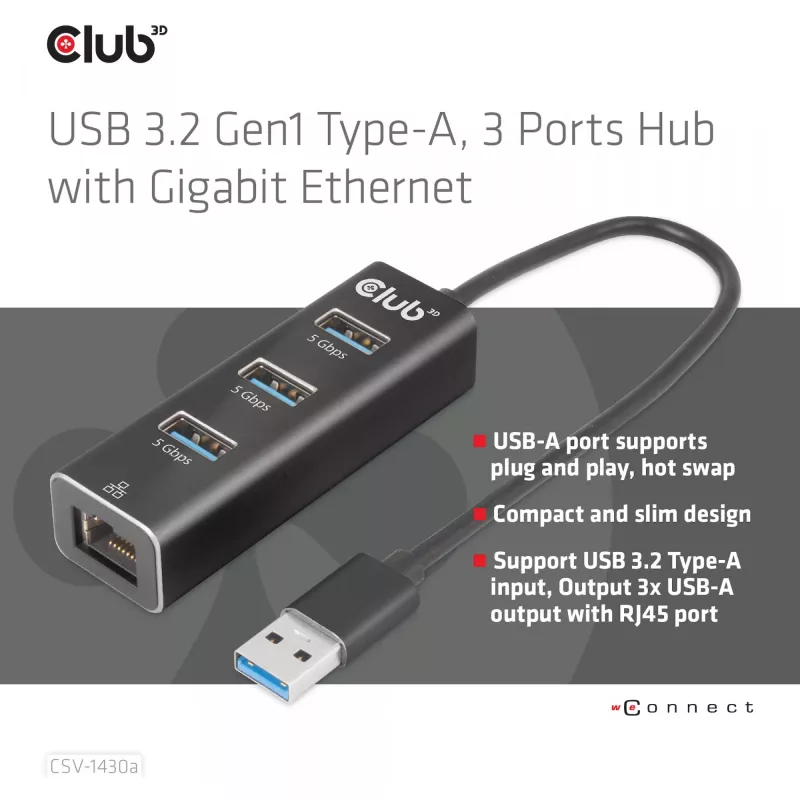

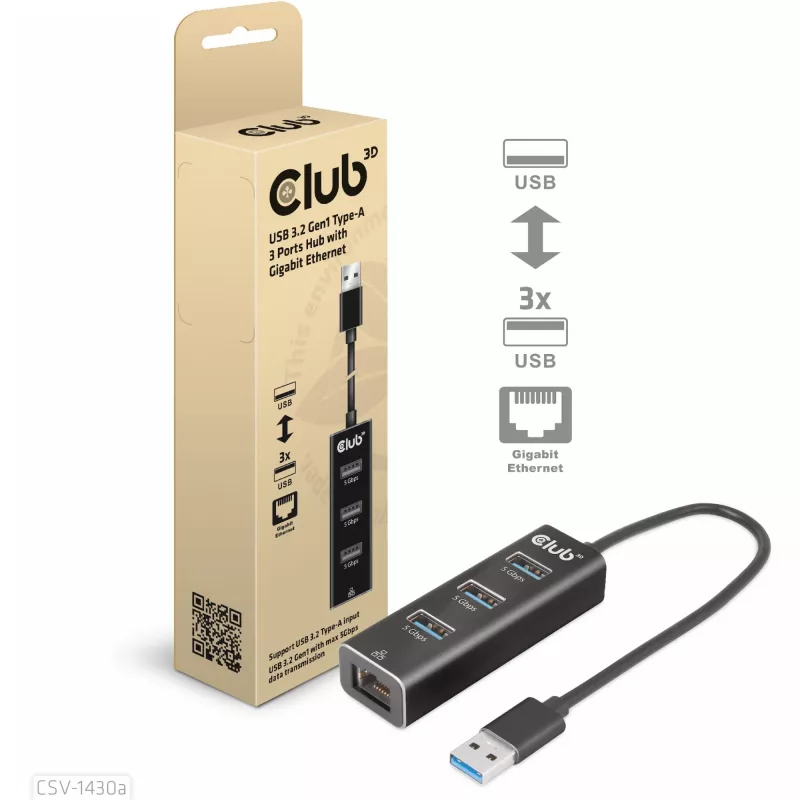

The Club 3D CSV-1430a is a compact USB 3.2 Gen1 Type-A hub with three USB-A ports and a Gigabit Ethernet (RJ45) port. It connects to a host via a single USB 3.2 Gen1 Type-A uplink and provides simultaneous access to all downstream ports. The hub is slim and portable, compatible with USB 2.0 hosts (with reduced performance), and supports plug-and-play operation on Windows and macOS.

Advantages

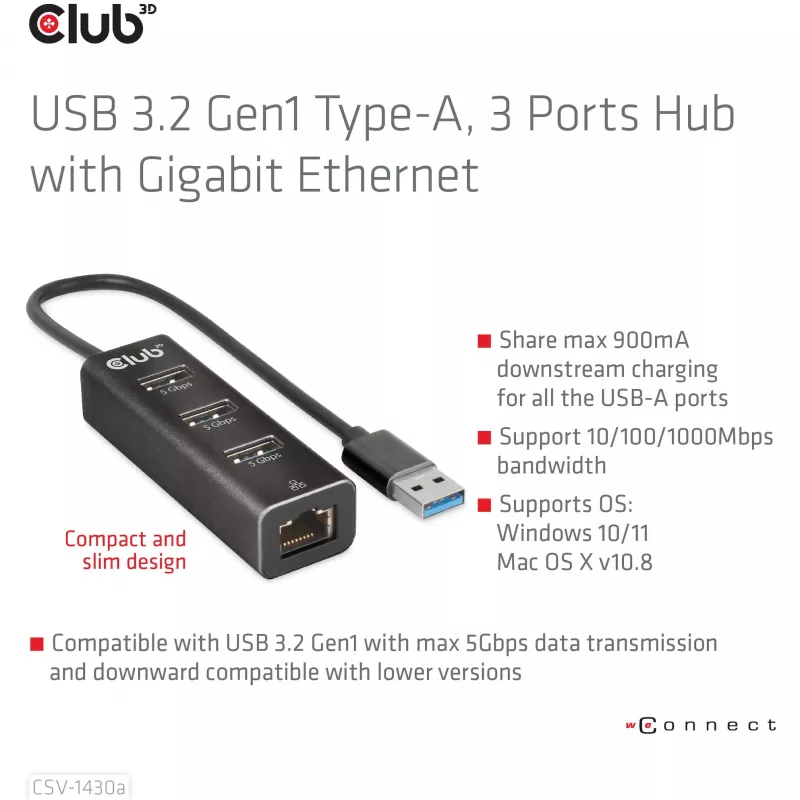

The hub delivers up to 5 Gbps data transfer on each USB 3.2 Gen1 Type-A port and provides a 10/100/1000 Mbps Gigabit Ethernet connection for reliable wired networking. Its compact, slim design makes it easy to carry with laptops and mobile workstations. Downward compatibility with USB 2.0 ensures basic functionality on older systems, while plug-and-play and hot-swap support simplify setup without additional drivers on supported operating systems.

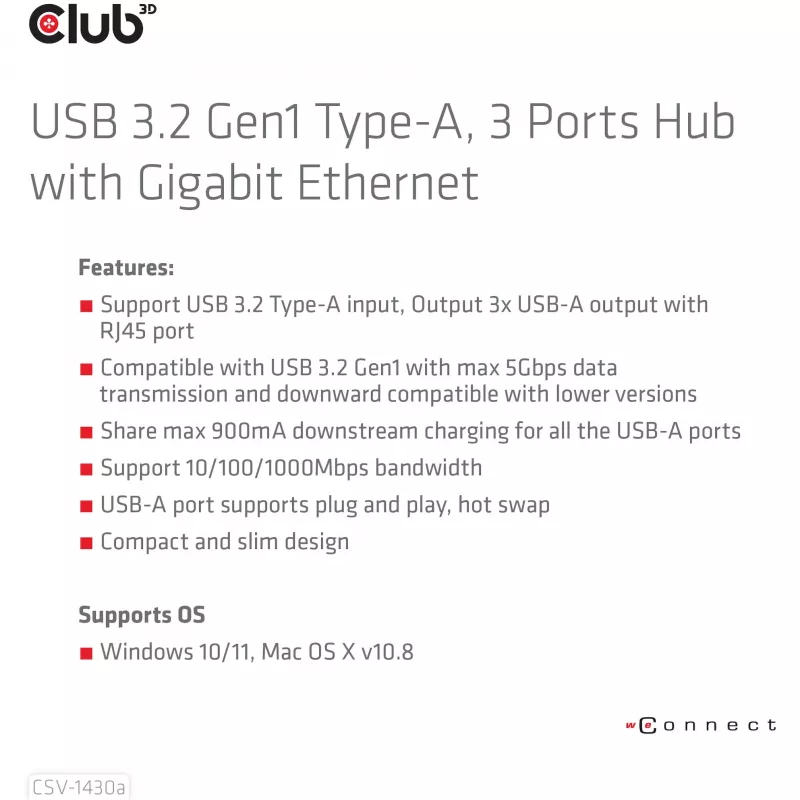

Key specifications

• Model: Club 3D CSV-1430a
• Interface: USB 3.2 Gen1 Type-A uplink
• Downstream ports: 3 × USB 3.2 Gen1 Type-A (up to 5 Gbps each)
• Ethernet: Gigabit Ethernet 10/100/1000 Mbps (RJ45), full duplex with flow control
• Downstream charging: shared up to 900 mA across USB-A ports
• Compatibility: USB 2.0 downward compatible (reduced performance)
• Supported OS: Windows 10/11, macOS X v10.8 and later

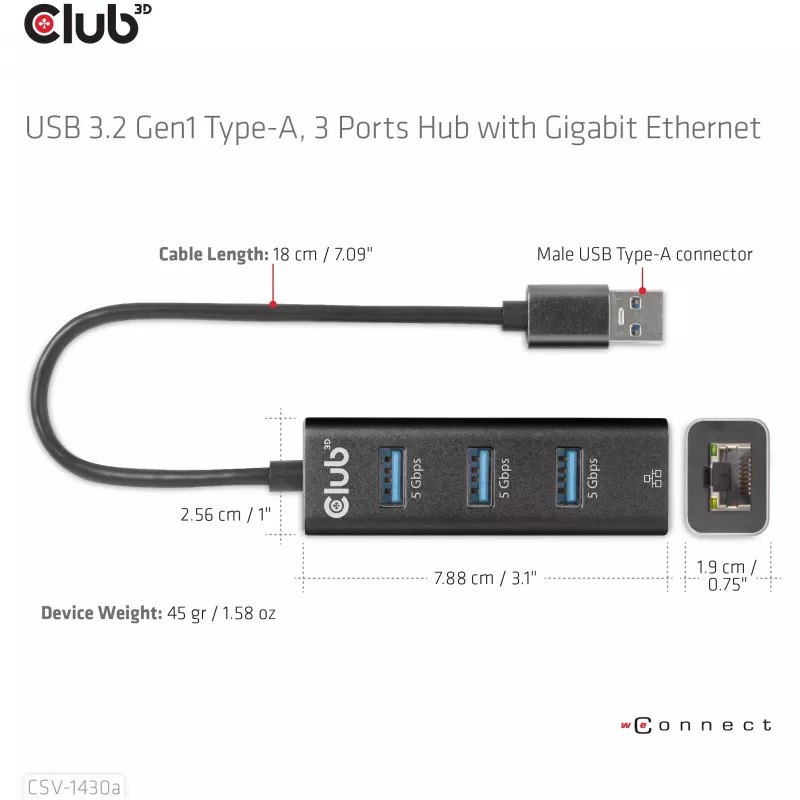

• Design: compact, slim, portable

How to use

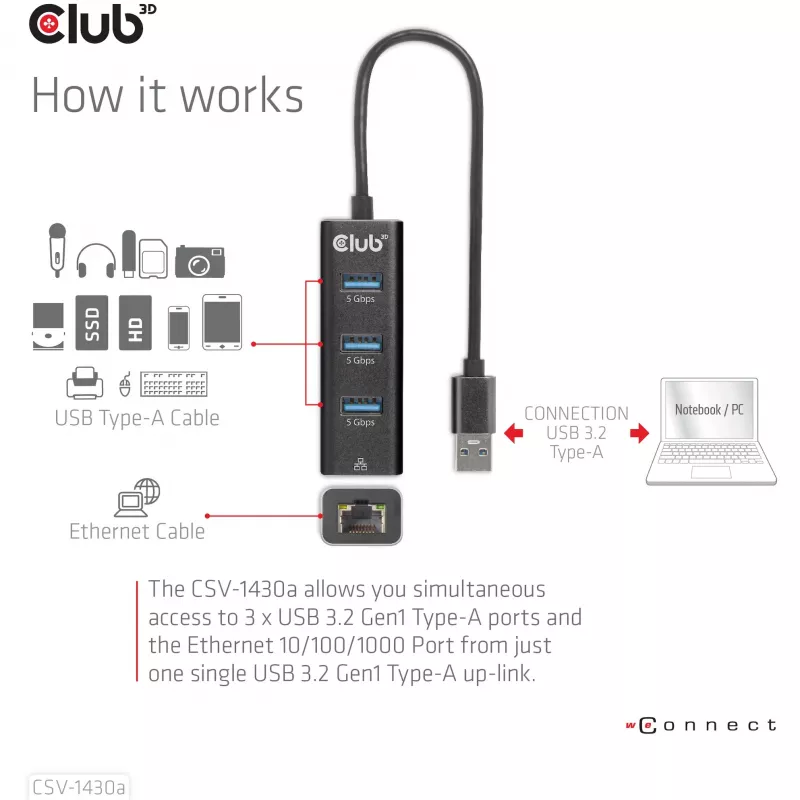

Connect the CSV-1430a to a computer's USB 3.2 Gen1 Type-A port using the built-in uplink. Plug USB devices into the three USB-A ports and connect an Ethernet cable to the RJ45 port for wired network access. The hub supports plug-and-play and hot-swap; on supported systems it should be recognized automatically. If connected to a USB 2.0 port, data transfer speeds will be limited by the host port.

Recommendations

For best performance, use the hub with a USB 3.2 Gen1 Type-A port on your computer and a Cat5e or Cat6 Ethernet cable for Gigabit speeds. Monitor the total current draw of connected USB devices to avoid exceeding the shared 900 mA downstream charging limit.
