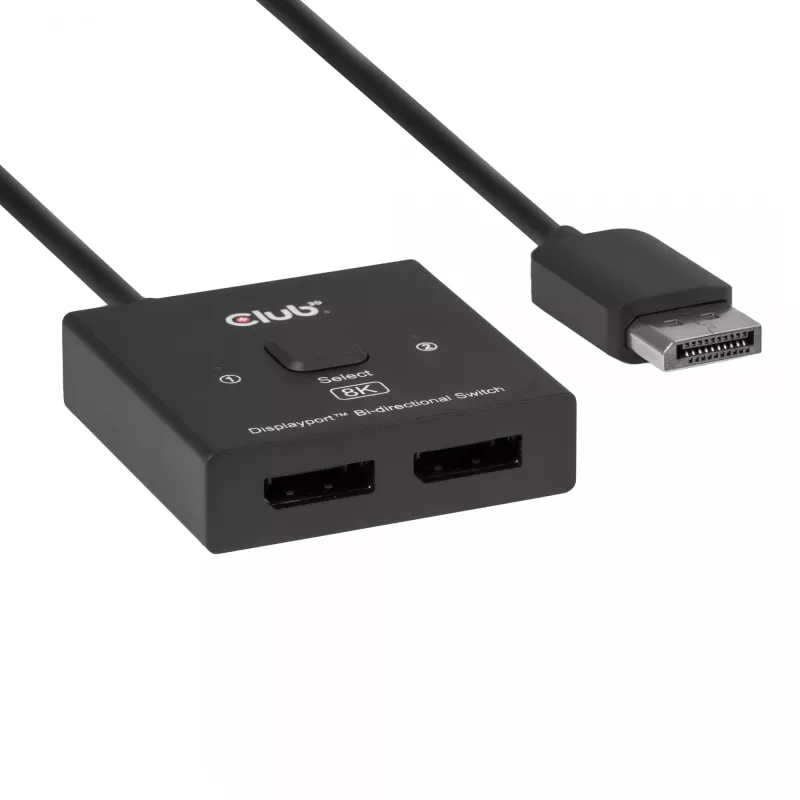

Switch bidireccional DisplayPort 2 en 1 CLUB3D CSV-1009 — 2 salidas DisplayPort, 8K@60Hz, negro

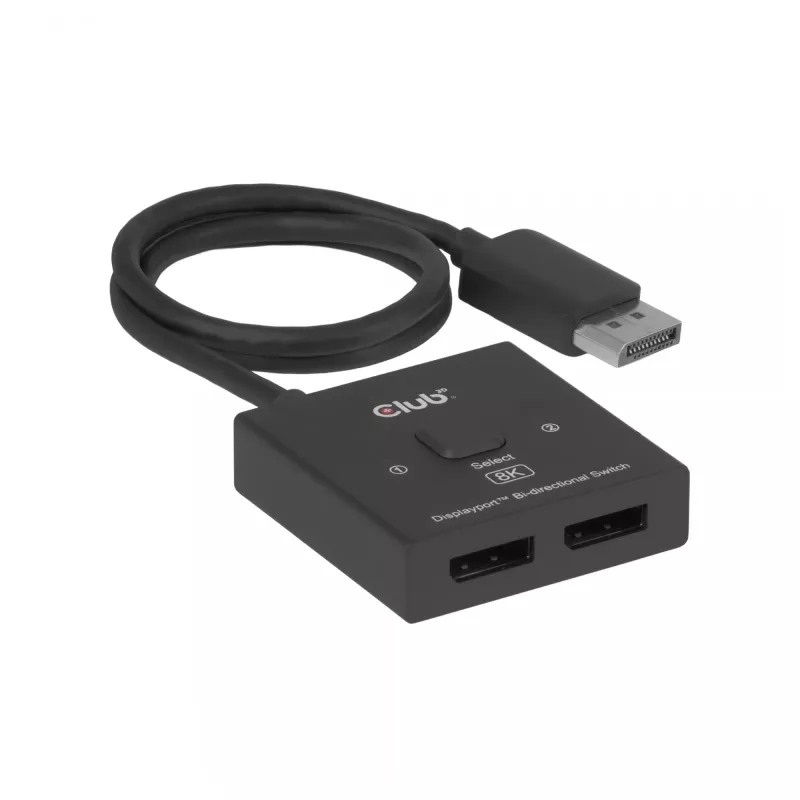

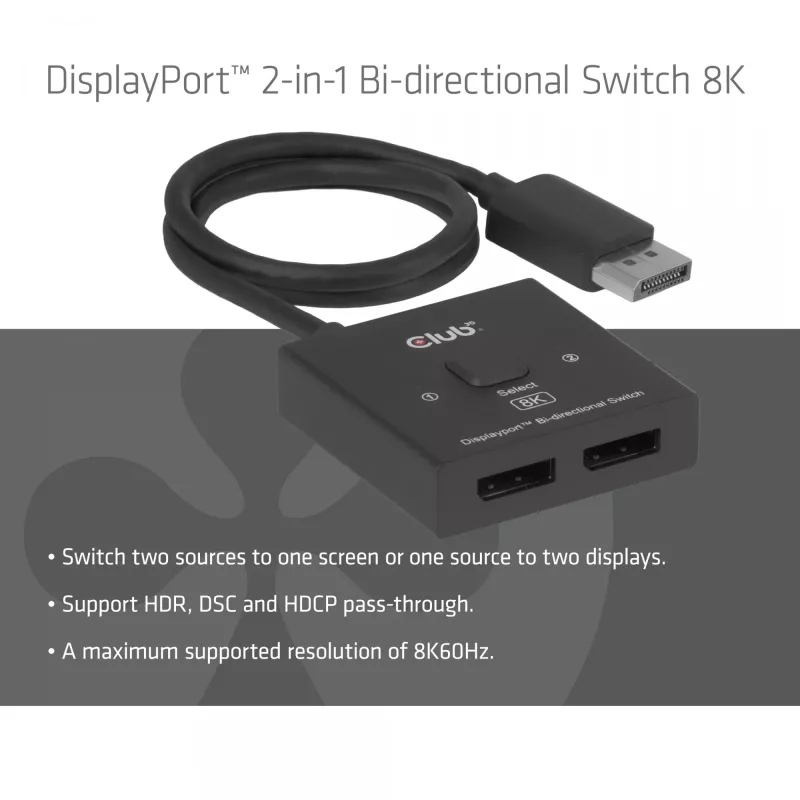

CLUB3D CSV-1009 is a compact bi-directional DisplayPort switch that lets you connect and switch between two DisplayPort video sources or two displays using a single device. The switch supports DisplayPort 1.4 features including HDR, DSC and HDCP pass-through, and can handle resolutions up to 7680×4320 (8K) at 60 Hz. Its one-button, plug-and-play operation enables quick switching without drivers, and the unit is supplied in a small black enclosure suitable for space-saving setups.

Advantages

The switch provides instant source selection with a single toggle button and clear blue LED indicators showing the active port. It supports high-resolution video up to 8K@60Hz and advanced DisplayPort features (HDR, DSC, HDCP) for compatible content. Plug-and-play operation requires no software or drivers, and the device can draw power from the DisplayPort connection or alternatively accept power via a Type-C female port when needed.

Suitable for (tasks / use cases)

• Switching a single monitor between a work laptop and a home PC without reconnecting cables
• Connecting two DisplayPort sources to one monitor for quick source selection
• Connecting two monitors to one source when manual switching is required
• Small or space-constrained desktop setups that need a compact switch

Key specifications

• DisplayPort specification: DP 1.4
• Maximum supported resolution: up to 7680×4320 (8K) at 60 Hz
• Supported features: HDR, Display Stream Compression (DSC), HDCP pass-through

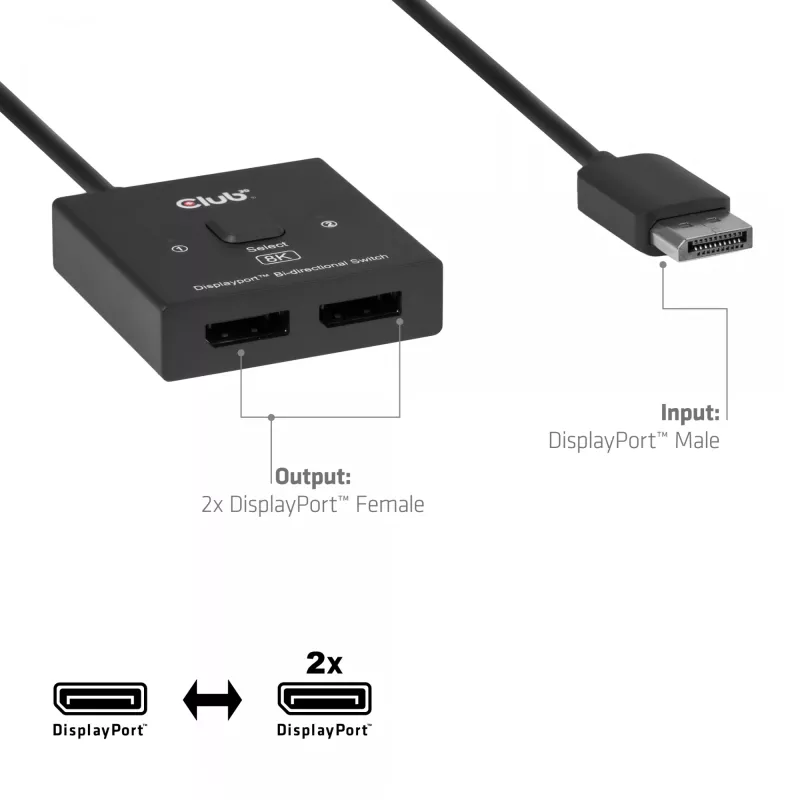

• Video ports: 2 × DisplayPort
• Switching method: single toggle button with LED indicators

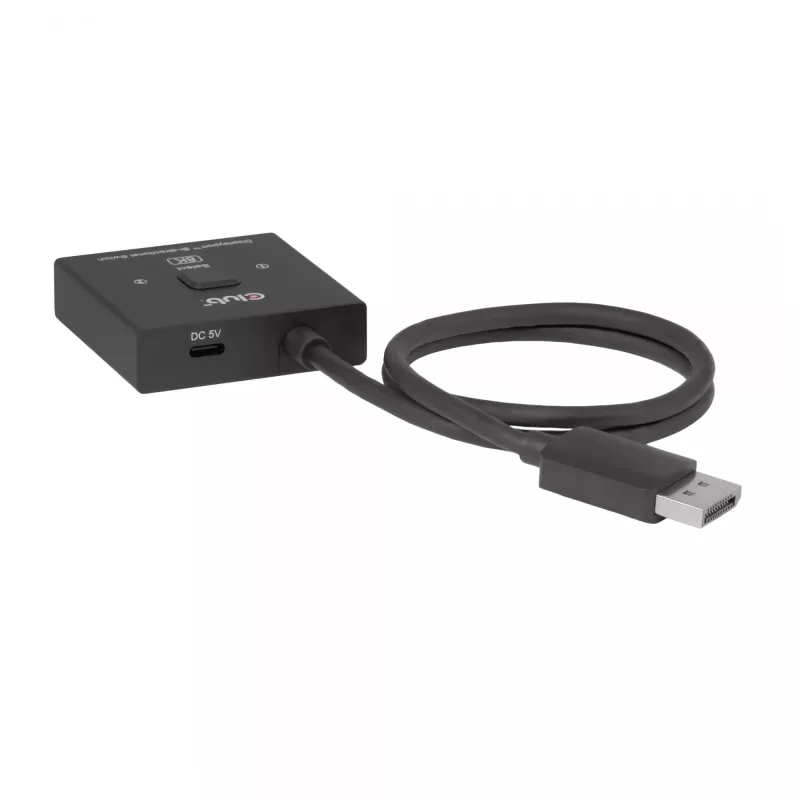

• Power: can draw power via DisplayPort connector or via Type-C female port as alternative
• Color and enclosure: black, compact form factor

How to use

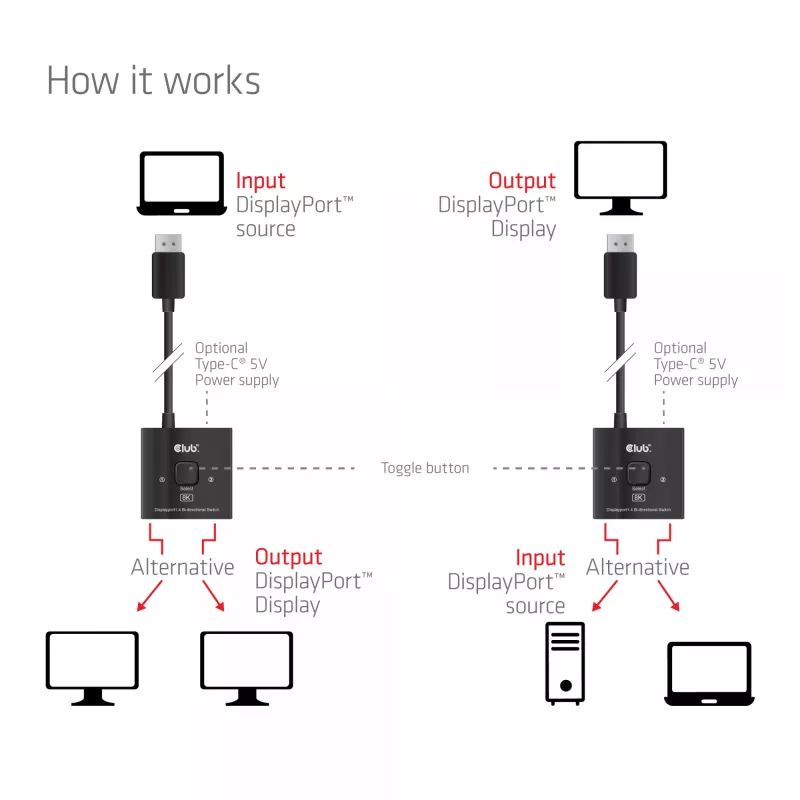

Connect the DisplayPort cables between the switch and your two video sources or between the switch and two displays depending on your configuration. Plug a single DisplayPort cable from the switch to your monitor if using two sources, or from your source to the switch if using two displays. Power the unit through the DisplayPort connection when available; if a connected device does not supply power via the DP port, supply power to the switch using the Type-C female port. Press the toggle button to switch the active video port — the blue LED on the corresponding side will indicate which port is selected.

Recommendations

For optimal signal stability and maximum performance at high resolutions, use high-quality or manufacturer-recommended DisplayPort cables and avoid using excessively long or thin cables that can increase the risk of signal instability.
