ComNet CNFE2MC Convertidor de medios Fast Ethernet 100Mbps 1 puerto SFP + 1 cobre RJ-45

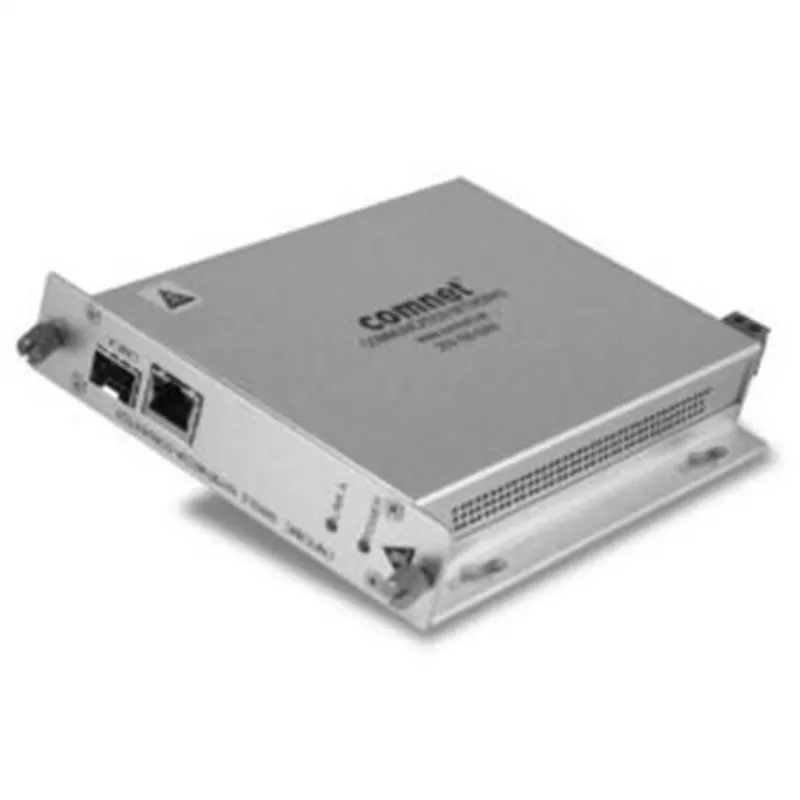

The ComNet CNFE2MC is a high-performance Fast Ethernet media converter designed to extend network distances by converting 100BASE-TX copper signals to 100BASE-FX fiber optics via an SFP slot. Built for industrial environments, it offers reliable data transmission over long distances with ruggedized metal housing and wide temperature tolerance.

Advantages

• Extends network reach up to distances determined by SFP module (not included)
• Rugged metal enclosure for harsh environments
• Supports auto-negotiation and auto MDI/MDI-X for easy installation
• Link Fault Pass-Through (LFP) for quick fault detection
• Low power consumption under 5W

Suitable for

• Industrial automation and control networks
• Security and surveillance systems
• Enterprise network expansion over fiber
• Remote site connectivity

Key specifications

• Product Type: Fast Ethernet Media Converter
• Data Rate: 100 Mbps
• Copper Port: 1 x 10/100BASE-TX RJ-45
• Fiber Port: 1 x 100BASE-FX SFP Slot
• Network Standards: IEEE 802.3u
• Power Input: 12 VDC (external power supply included)
• Power Consumption: < 5W
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0 to 95% (non-condensing)
• LED Indicators: Power, FX Link/Activity, TX Link/Activity
• Mounting: Standalone, DIN-Rail (optional kit), Rack (optional chassis)
• Housing: Ruggedized Metal
• Compliance: FCC Part 15, CE, RoHS
• Management: Unmanaged

Recommendations

For optimal performance, pair with a compatible 100BASE-FX SFP module (sold separately). Ideal for extending networks in demanding industrial or outdoor settings.
