Conector CAT 6A montable en campo STP Digitus 5 unidades conector RJ-45 plateado

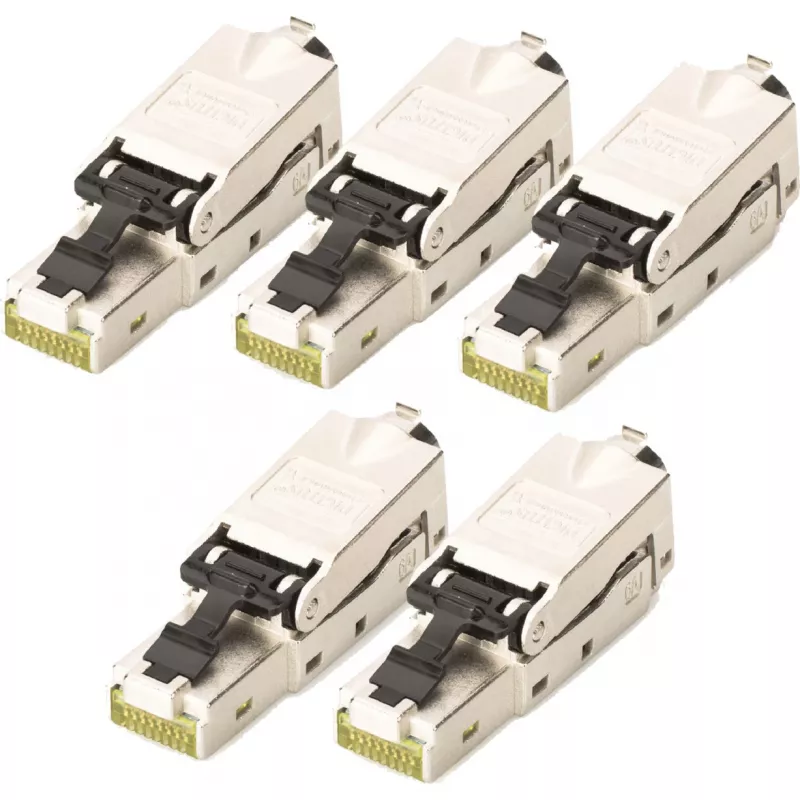

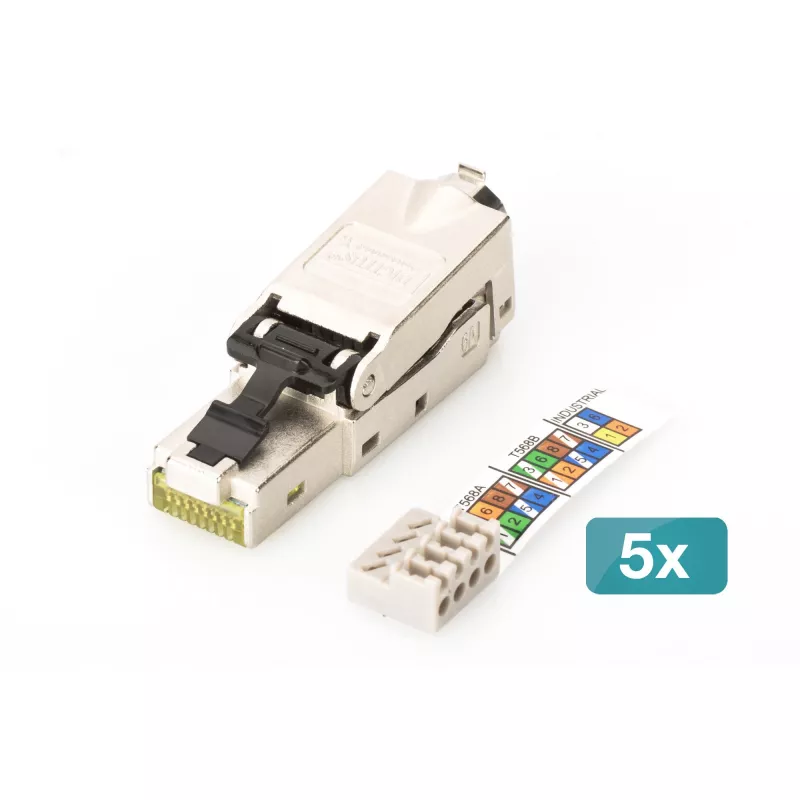

The DIGITUS CAT 6A Field Termination Plug (DN-93631-5) is a field-assembly RJ45 connector designed for quick and reliable termination of CAT 6A shielded cables. Supplied in packs of five, each plug includes a silver RJ-45 male connector, integrated bend relief and a dust cap. The compact plug supports up to 10 Gigabit Ethernet and is intended for creating custom network connections where fast, tool-free assembly and robust shielded performance are required.

Advantages

This CAT 6A RJ45 plug enables rapid field assembly — installation is possible in about 60 seconds without special tools — while maintaining shielded (STP) performance suitable for high-speed networks up to 10 Gigabit Ethernet. The product includes features such as a dust cap and bend relief for improved durability and cable protection. Packaged as five plugs, it offers a cost-effective option for on-site installations, repairs and maintenance.

Suitable for (tasks / use cases)

• Field termination of CAT 6A STP cables
• On-site network repairs and maintenance
• Creating custom-length Ethernet patch cables for 10 Gigabit networks
• Temporary or permanent connections in office and data center environments

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93631-5
• Type: CAT 6A STP RJ45 field termination plug, male
• Pack quantity: 5 pieces
• Connector finish: silver
• Supports: up to 10 Gigabit Ethernet
• Dimensions (each): width 12.5 mm × depth 45 mm
• Weight (each): 78 g
• EAN: 4016032495109

How to use

Prepare the CAT 6A STP cable by stripping the outer jacket and exposing the shielded pairs according to the cable manufacturer’s instructions. Insert the prepared cable into the plug, ensuring the shield makes contact with the plug’s metal parts, and push until the conductor terminations align. Secure the plug by following the plug’s assembly steps — the plug is designed for rapid assembly without special tools and includes a dust cap that can be fitted after termination. Verify continuity and shielding with appropriate network test equipment before installation into service.

Recommendations

Use this field termination plug with CAT 6A shielded (STP) cables and test each terminated cable with a cable tester supporting CAT 6A or higher standards. Avoid excessive bending at the plug by using the integrated bend relief and fully seating the dust cap to protect the contact area.
