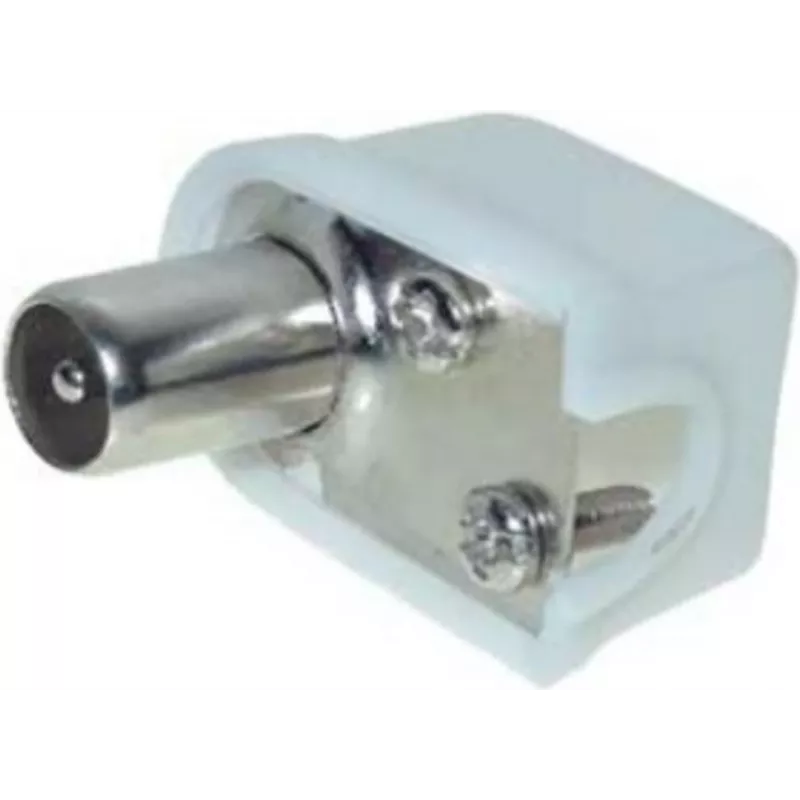

Conector coaxial acodado ShiverPeaks 82020-K — conexión roscada pequeña, adaptador coaxial en ángulo recto

Coaxial Angle Connector ShiverPeaks 82020-K is a right-angle coax adapter with a small screw connection designed to join coaxial cables and components in confined installations. The compact right-angle body provides a low-profile mechanical interface that preserves signal continuity while changing the cable routing direction. This adapter is intended for RF, CCTV, and antenna setups where space constraints require a screw-mounted coaxial coupling for repair, extension, or reconfiguration tasks.

Advantages

The adapter delivers a compact right-angle design that reduces strain on cable terminations and allows cleaner routing in tight spaces. Its screw connection ensures a stable mechanical and electrical contact without requiring soldering, supporting reliable signal transmission. The small form factor and standardized coaxial mating permit straightforward integration with compatible coax cables and devices, minimizing installation time and mechanical stress on nearby components.

Suitable for

• RF signal routing where space is limited
• CCTV camera cable connections and extensions
• Antenna feedline reconfiguration in confined enclosures
• Field repairs and temporary or permanent coaxial joins

Key specifications

• Right-angle coaxial adapter with small screw-type mechanical connection
• Compact, low-profile housing to reduce bending radius at the junction
• Designed for common coaxial signal types (RF/CCTV/antenna)
• Mechanical screw mounting for tool-assisted secure coupling
• Male/female mating faces compatible with standard coax connectors of similar form factor

How to use

Prepare the coaxial cable ends according to the cable and connector requirements, ensuring clean conductor and shield exposure. Align the cable or device connector with the adapter’s mating face and engage the screw connection, tightening until a secure mechanical and electrical contact is achieved without over‑torquing. Route the cable to avoid sharp bends near the right-angle body and secure the assembly to prevent movement that could loosen the screw connection over time.

Recommendations

For best performance, use this adapter with properly prepared coaxial cables and compatible connector types; avoid excessive bending at the adapter, and periodically inspect the screw connection in installations exposed to vibration or thermal cycling.
