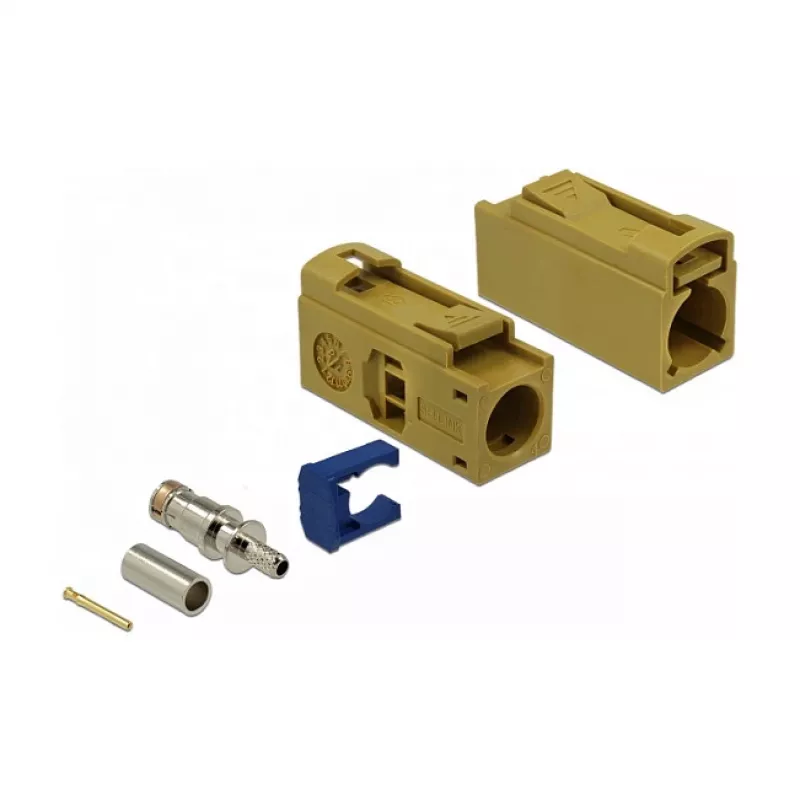

Conector coaxial DELOCK 89694 FAKRA K macho, contactos dorados, 13,8×25×9,5 mm

DELOCK 89694 is a compact FAKRA K male coaxial connector designed for reliable RF signal transmission in automotive and radio frequency systems. With gold-plated contacts and a standard mechanical interface for FAKRA K housings, the connector ensures stable electrical contact and improved corrosion resistance. The small footprint (approx. 13.8 × 25 × 9.5 mm) allows integration in space-limited assemblies and panels where a secure coaxial connection is required.

Advantages

The gold-plated contacts reduce contact resistance and offer better corrosion protection compared with unplated alternatives. The standard FAKRA K mechanical interface ensures compatibility with matching connectors and housings used in automotive and RF applications. Its compact size supports installation in constrained spaces while maintaining mechanical stability and consistent signal performance.

Suitable for

Key specifications

How to use

Align the FAKRA K male connector with the corresponding female receptacle and press until the mechanical latch engages to ensure a secure connection. Verify correct mating by confirming the physical lock and checking signal continuity with appropriate test equipment before final assembly. For panel or cable installations, follow the vehicle or device manufacturer’s routing and fixation requirements to avoid strain on the connector and cable.

Recommendations

To maintain optimal performance, avoid exposing the connector to aggressive chemicals or prolonged moisture. When installing in automotive environments, ensure proper strain relief and secure mounting to prevent repeated mechanical stress. Periodic inspection and gentle cleaning of contact surfaces with suitable contact cleaner can help preserve low contact resistance and reliable RF performance.
