Conector DC ShiverPeaks conector F a conector F hembra 100 V modelo 86150

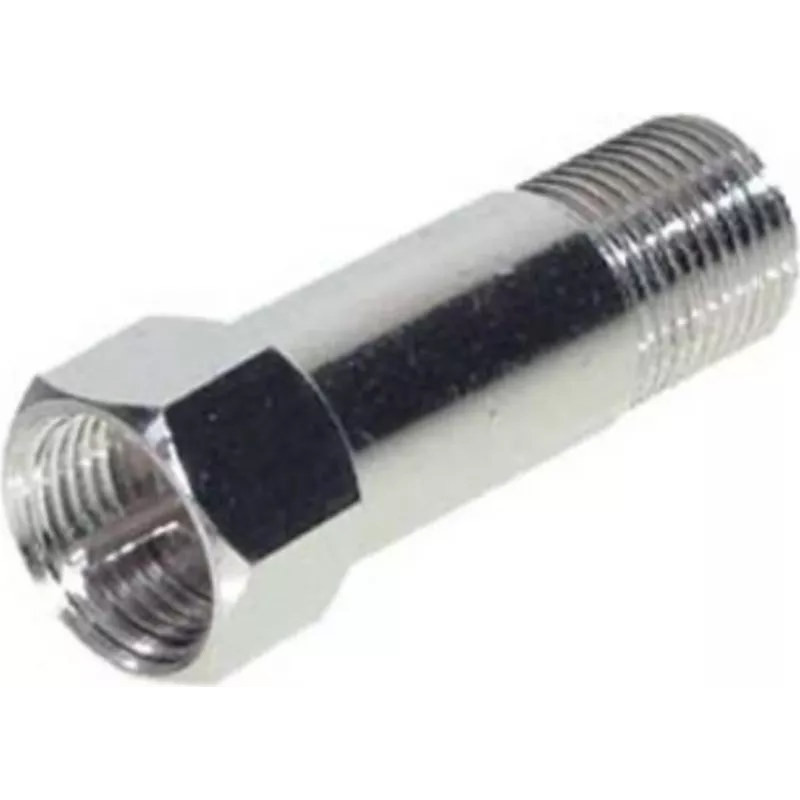

The ShiverPeaks DC Connector F-plug to F-socket Model 86150 is an adapter designed to convert a coaxial F-type male plug into an F-type female socket while providing DC continuity for 100 V DC applications. It allows devices or cable runs that terminate in an F-plug to be connected to equipment or extensions that require an F-socket, keeping the power signal intact for power-over-coax and CCTV installations. The adapter is compact and intended for in-line use where a simple gender change of the F-connector is needed without interrupting DC supply.

Advantages

This adapter preserves DC continuity up to 100 V, enabling combined signal and power transmission over a single coaxial line. Its F-plug to F-socket conversion simplifies connections between cable assemblies and equipment with female F inputs. The unit is compatible with standard F-type coaxial interfaces and is suitable for quick installation in confined spaces. The construction minimizes signal interruption and is intended for reliable mechanical and electrical mating within typical CCTV and distribution setups.

Suitable for (tasks / use cases)

• Connecting a cable terminated with an F-plug to equipment or extension cables requiring an F-socket
• Power-over-coax (PoC) systems where DC continuity at up to 100 V is required
• CCTV camera installations and signal distribution networks that combine power and RF signal on coax
• Temporary adapters during maintenance, testing, or system reconfiguration

Key specifications

• Connector conversion: F-type male (plug) to F-type female (socket)
• DC continuity supported up to 100 V
• Suitable for standard coaxial cables with F-type terminations
• Compact in-line adapter design for minimal added length
• Intended for signal and low-voltage DC applications such as CCTV and PoC

How to use

To use the adapter, align the F-plug on the cable with the adapter's F-socket and screw or push it into place according to the connector type. Then connect the adapter's F-plug end to the receiving F-socket on the device or extension cable. Ensure connectors are tightened securely to maintain good electrical contact and to preserve DC continuity. Verify that the system voltage does not exceed 100 V DC before use and power the system only after connections are confirmed.

Recommendations

Use the adapter only in systems where F-type connectors are compatible and the DC voltage does not exceed 100 V. Inspect connectors for damage and ensure proper mating to avoid signal loss or poor electrical contact. For outdoor or harsh-environment installations, use additional weatherproofing measures such as sealing tape or enclosures.
