Conector de alta frecuencia DeLOCK 89904

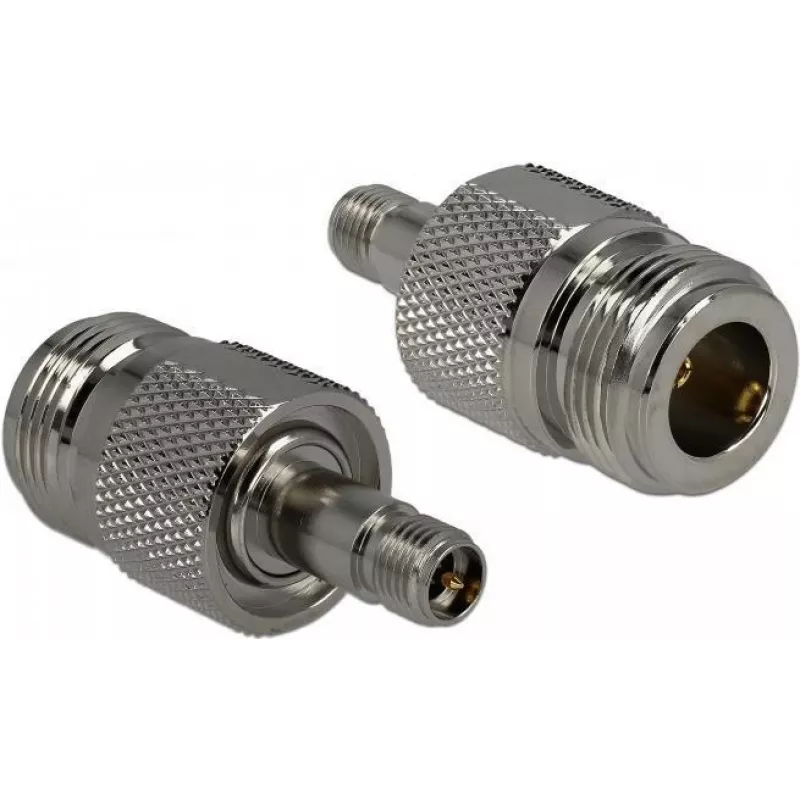

The DeLOCK 89904 is a compact radio frequency connector designed for reliable RF signal connections. It features an N jack and an RP 3.5 jack with a characteristic impedance of 50 Ω, and comes packaged in a polybag. With a length of 30.8 mm and a diameter of 1.6 cm, the connector is suitable for installations where space is limited and consistent signal transmission is required.

Advantages

The connector provides stable 50 Ω impedance for optimal RF performance and is compact for easy handling and installation. The combination of an N jack and an RP 3.5 jack allows compatibility with a range of RF components. The product is supplied in a simple polybag for protected storage and transport.

Suitable for

Key specifications

How to use

Align the N jack and RP 3.5 jack with the corresponding connectors on your devices or cables, then secure the connection according to the connector types (screw or push-fit as applicable). Ensure both mating connectors are clean and free of debris before assembly to maintain optimal signal quality. Verify the connection after installation to confirm signal continuity.

Recommendations

Use the connector only with compatible 50 Ω equipment. Avoid excessive mechanical stress or bending at the connector interface. Store in the original polybag when not in use to protect the contact surfaces from dust and moisture.
