Conector de cable BNC EFB Elektronik 52501.1

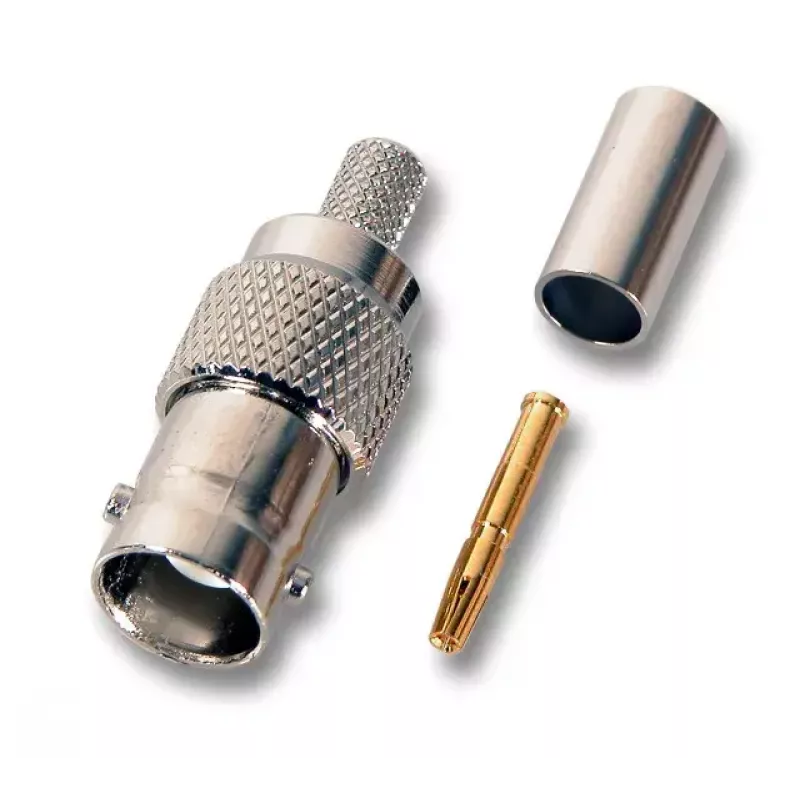

The EFB Elektronik 52501.1 is a BNC wire connector designed to provide reliable coaxial connections in electronic and RF applications. This female BNC connector features a silver finish and is supplied as a single piece per pack. It is intended for use where a secure, quick-disconnect coaxial interface is required and where consistent electrical contact and low signal loss are important.

Advantages

This BNC connector offers a compact design and stable mechanical coupling that reduces accidental disconnection. The female configuration ensures compatibility with standard male BNC plugs used in test equipment, signal distribution and instrumentation. The silver finish provides corrosion resistance and straightforward visual inspection for correct mating. As a single-piece pack, it is convenient for replacement, prototyping or small installations.

Suitable for

• Connecting coaxial cables to test and measurement instruments
• Audio/video signal transmission in broadcast or monitoring systems
• RF and low-frequency signal distribution in laboratory setups
• Repair and replacement of existing BNC-terminated cables

Key specifications

• Connector type: BNC, female
• Finish: silver
• Quantity: 1 piece per pack
• Contact style: bayonet coupling for quick connect/disconnect
• Intended use: coaxial cable connections for signal transmission

How to use

Strip the coaxial cable to the recommended dimensions for the connector, ensuring the inner conductor and shield are prepared according to the cable and connector instructions. Insert the cable into the connector body, secure the contact and shield per the connector's assembly method (crimp, solder or push-fit as appropriate), then mate the female BNC with a corresponding male BNC by aligning and engaging the bayonet coupling until it locks. Verify mechanical retention and electrical continuity before placing the assembly into service.

Recommendations

Use the connector with compatible coaxial cable types and follow manufacturer-recommended assembly tools and dimensions. Avoid excessive mechanical stress on the connection, and perform continuity and insulation checks after installation to ensure reliable signal transfer.
