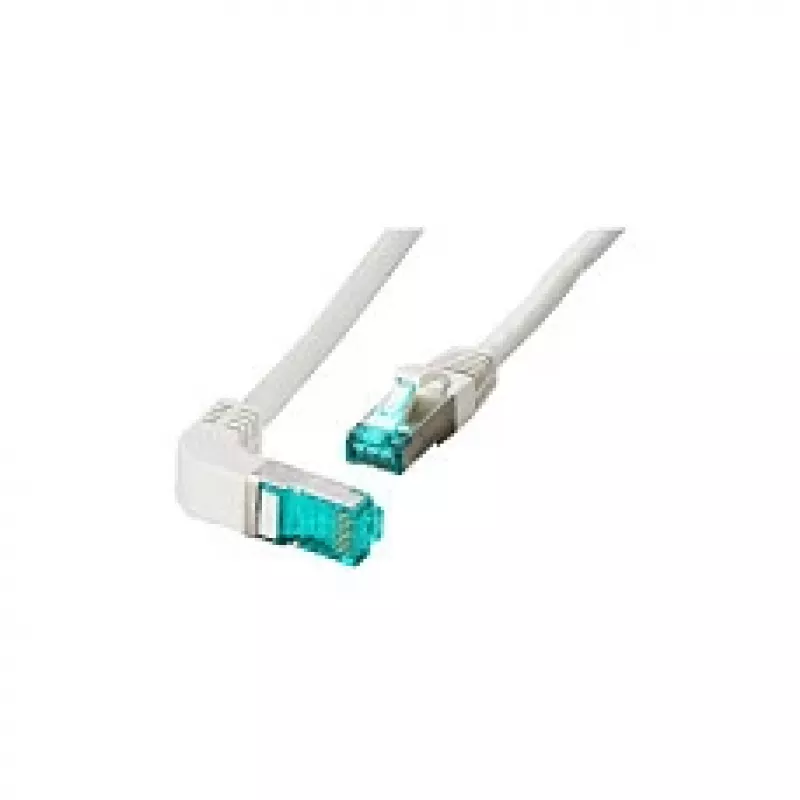

EFB-Elektronik Cable de conexión RJ45 Cat.6A S/FTP LSZH 1x90° gris 2m

The EFB-Elektronik RJ45 Patch Cable Cat.6A S/FTP LSZH 1x90° Grey 2m is a high-performance network cable designed for demanding data center and enterprise environments. With a 90° angled connector on one end, it facilitates easy installation in tight spaces and reduces cable strain. The cable supports 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 500 MHz, ensuring reliable high-speed data transmission.

Advantages

This patch cable offers superior shielding (S/FTP) to minimize electromagnetic interference, ensuring signal integrity even in high-density installations. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke and fumes in case of fire. The 90° angled connector allows for space-saving routing and reduces stress on the cable and port.

Suitable for

• Data centers and server rooms
• Network infrastructure for 10GBASE-T applications
• High-density patch panels and switches
• Industrial environments requiring robust shielding

Key specifications

• Cable Type: RJ45 Patch Cable
• Category: Cat.6A (Augmented Category 6)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 2 meters
• Color: Grey
• Connector 1: RJ45 Male, Straight
• Connector 2: RJ45 Male, 90° Angled
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA-568B
• Halogen Free: Yes
• Flame Retardant: Yes
• PoE Support: PoE, PoE+, PoE++
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain the bend radius and avoid signal degradation.
