Conector de cable D-Sub9 DeLOCK 66555 verde plata

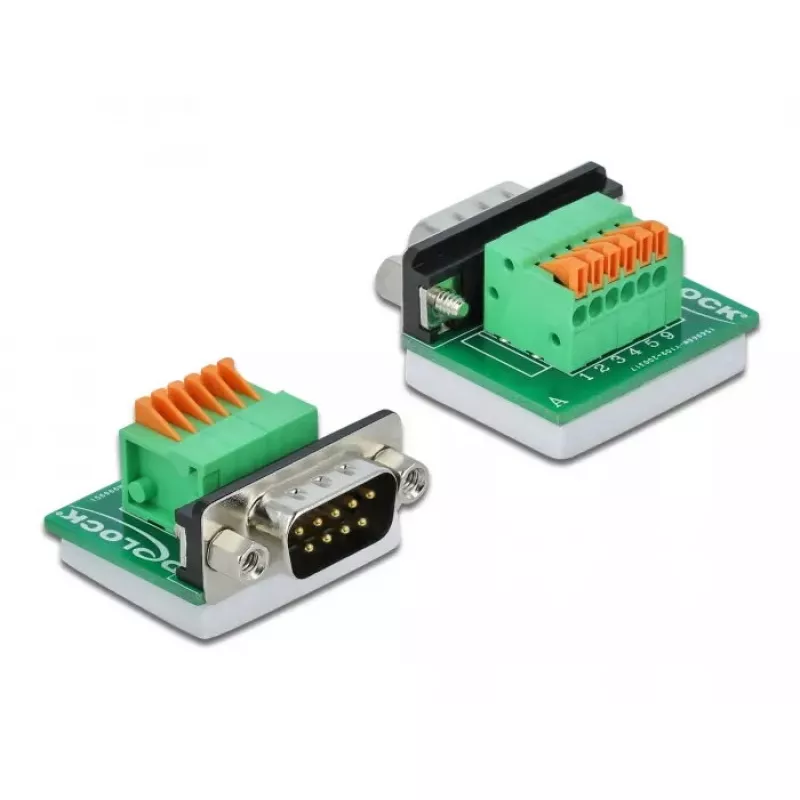

The DeLOCK Wire Connector D-Sub9 66555 in green and silver is a compact D-Sub9 male connector intended for connecting devices that use standard 9-pin D-Sub ports. The connector provides a wired interface suitable for serial and control signal lines where a reliable mechanical and electrical connection is required. Its compact housing and familiar D-Sub9 form factor make it compatible with common equipment and easy to install in tight setups.

Advantages

The connector combines a standard D-Sub9 male interface with a compact housing and distinctive green and silver finish for easy visual identification. It offers robust contact alignment for stable signal transmission and is designed for straightforward integration into existing cabling arrangements. The small footprint supports installation in confined spaces while maintaining compatibility with standard D-Sub9 sockets.

Suitable for

• Connecting serial devices (RS-232/RS-422/RS-485) with 9-pin D-Sub ports
• Industrial control panels and automation equipment requiring compact D-Sub connections
• Repair or replacement of existing D-Sub9 male connectors in cables and adapters
• Prototyping and lab setups where visible color coding helps identify connections

Key specifications

• Connector type: D-Sub9, male
• Colour: green and silver
• Form factor: 9-pin D-Sub standard layout
• Mounting: inline cable connector for solder or crimp style wiring (compatibility depends on cable termination method)
• Application: signal/serial data transmission
• Mechanical: compact housing suitable for limited-space installations

How to use

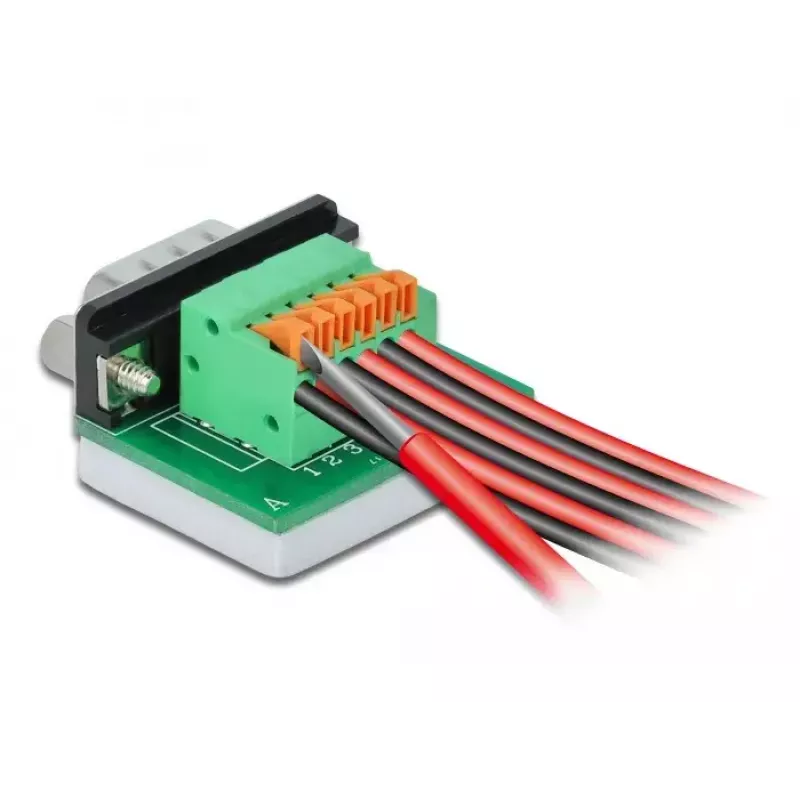

Prepare the cable according to the intended termination method and follow common safety procedures for low-voltage signal wiring. Align the connector with the mating D-Sub9 socket and gently insert until the connector is fully seated. Secure any screws or fasteners provided by the mating panel to ensure a stable mechanical connection. Verify pin assignments before powering the system to prevent incorrect wiring and potential signal issues.

Recommendations

Use the connector for low-voltage serial and control signals; avoid exposing it to high mechanical stress, moisture, or corrosive environments. Confirm pinouts and shielding needs for your application to maintain signal integrity, and choose appropriate cable types and strain reliefs for long-term reliability.
