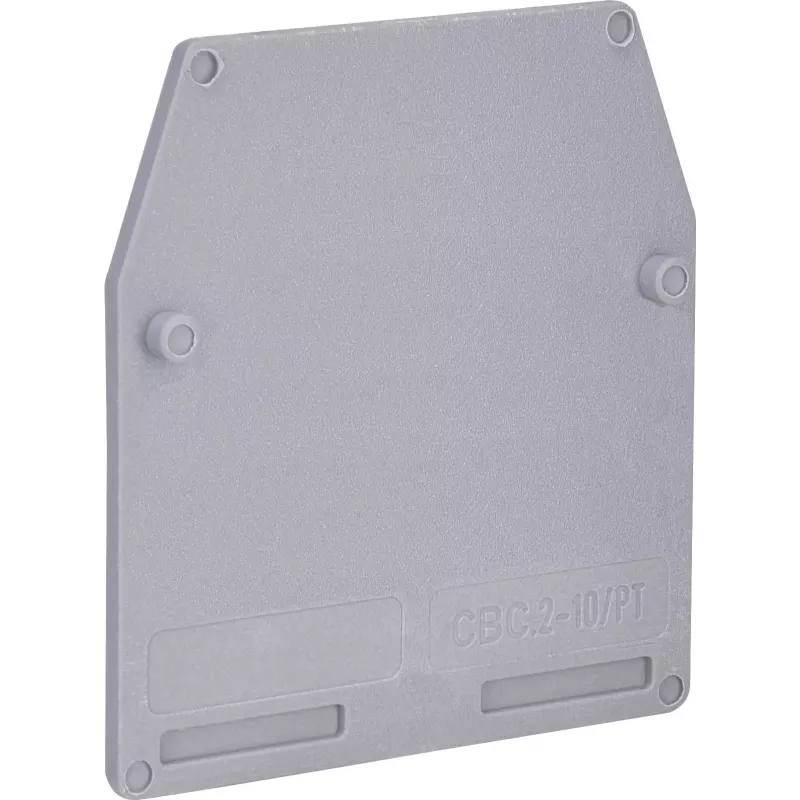

ETI ESC-CBC.2-10/PT cubierta para borne de carril, gris 003903010

The ETI ESC-CBC.2-10/PT is a dedicated end cover for the CBC.2-10 series terminal blocks, providing essential electrical insulation and mechanical protection at the ends of terminal block assemblies. Its snap-on design ensures secure placement without tools, while the grey polyamide construction blends seamlessly with standard industrial control cabinets. Unlike generic covers, this model is precision-molded for a perfect fit, maintaining the integrity of the terminal block row and preventing accidental contact with live parts.

Highlights

• Compatible with ETI CBC.2-10 series terminal blocks
• Snap-on mounting for quick and tool-free installation
• Made from halogen-free polyamide (PA) with UL94 V-0 flammability rating
• Provides electrical insulation and mechanical protection
• Operating temperature range: -40°C to +100°C

In daily use

Installing the end cover is straightforward: simply align it with the terminal block end and press until it clicks into place. The cover's 1.5 mm thickness adds minimal bulk while effectively sealing the assembly. Its grey color matches standard terminal blocks, maintaining a tidy appearance in control cabinets. The cover is designed for use in industrial electrical wiring applications where safety and reliability are paramount.

Full specifications

• Product Type: End Cover
• Compatible Series: ETI CBC.2-10
• Color: Grey
• Material: Polyamide (PA)
• Mounting Method: Snap-on / Clip-on
• Flammability Class: UL94 V-0
• Operating Temperature Range: -40°C to +100°C
• Thickness: 1.5 mm
• Insulation Group: I
• Pollution Degree: 3
• Halogen-Free: Yes
• Application: Industrial Electrical Wiring, Control Cabinets

Final note

Ensure correct orientation during installation to maintain the terminal block's insulation rating. The end cover is an essential accessory for completing any CBC.2-10 terminal block installation.
