Conector de cable DeLOCK 65534

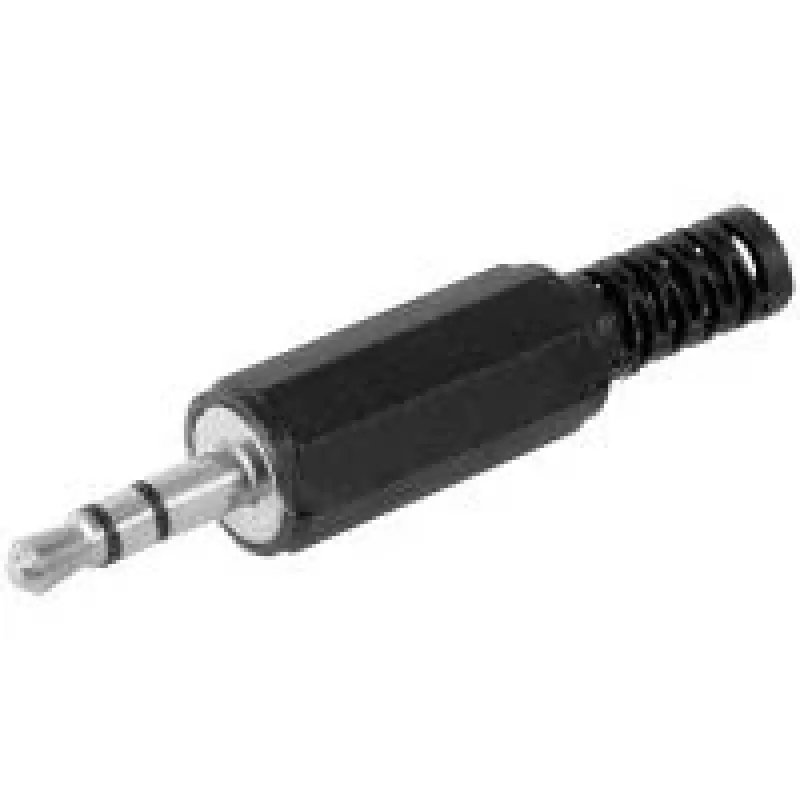

The DeLOCK 65534 wire connector is a solderable 3.5 mm stereo plug that you can attach to a cable for use with devices featuring a 3.5 mm stereo jack. The plug opens by unscrewing, providing access to soldering pads where the cable conductors are fixed. A rigid bending spring integrated into the housing gives additional strain relief and protection for the cable.

Advantages

This DeLOCK stereo plug offers a compact and durable metal housing with a screw-open design for straightforward soldering. The provided soldering lands allow secure electrical connections, while the hard bending spring reduces mechanical stress at the cable exit, increasing connection longevity.

Suitable for

• Repairing or replacing damaged 3.5 mm stereo plugs on headphones and audio cables
• Custom audio cable assemblies for consumer electronics
• DIY audio projects and prototypes requiring a soldered 3.5 mm connection

Key specifications

• Brand: DELOCK
• Model / MPN: 65534
• EAN: 4043619655342
• Connector type: 3.5 mm stereo plug (solderable)
• Housing: screw-open metal housing with integrated bending spring

How to use

Unscrew the housing to open the plug and expose the internal soldering lands. Strip the cable to the appropriate length, tin the conductor ends if desired, and solder each conductor to the corresponding land (tip, ring, sleeve) following the stereo wiring convention. After soldering, check the solder joints for continuity, position the cable and spring correctly, then reassemble and tighten the housing to secure the connection.

Recommendations

Use appropriate soldering tools and adequate ventilation. Verify wiring polarity before final assembly and avoid excessive pulling on the cable to prevent mechanical damage despite the bending spring protection.
