Conector de cable DeLOCK 67193 USB Type-E negro plata conector hembra

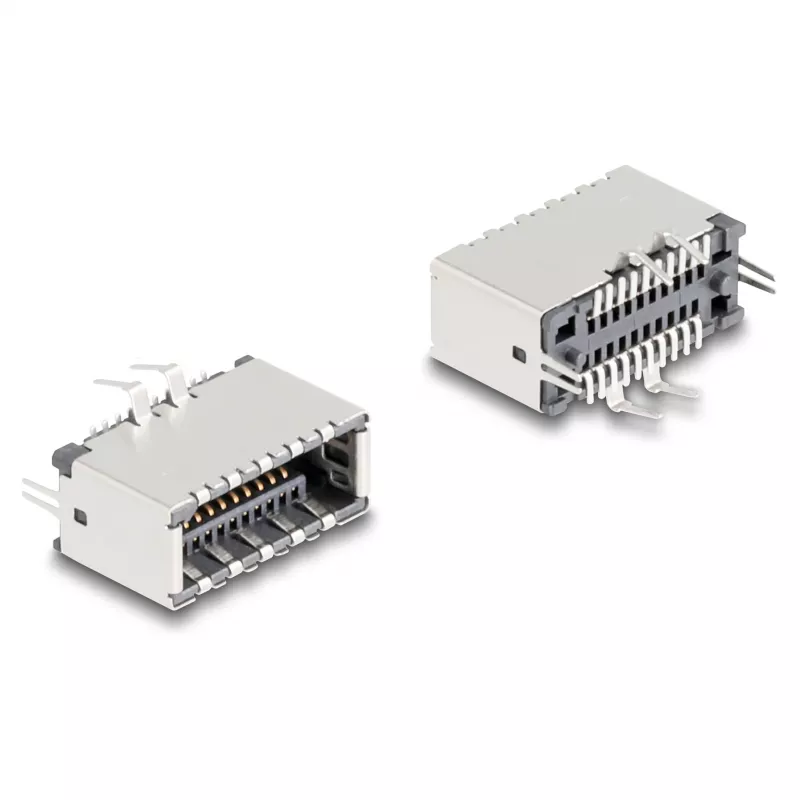

DeLOCK 67193 is a USB Type-E wire connector designed for SMT solder mounting on PCB boards. The connector is female, finished in black and silver, and conforms to CE standards. Its compact dimensions are 12.8 mm wide, 13 mm deep and 5.4 mm high, making it suitable for integration into devices and assemblies that require a USB Type-E interface.

Advantages

The connector supports surface-mount (SMT) soldering for secure PCB attachment and offers a space-saving form factor with a low profile. Being CE compliant, it meets relevant European safety and EMC requirements. The female Type-E design provides a standard USB wiring interface for internal or external cabling solutions.

Suitable for

• SMT mounting on printed circuit boards
• Embedded USB Type-E interfaces in electronic devices
• Internal wiring and cable assemblies requiring a female USB Type-E connector

Key specifications

• Brand: DELOCK
• Model / MPN: 67193
• Connector type: USB Type-E, female
• Mounting: SMT (surface-mount technology) solder
• Colour: Black, Silver
• Standards: CE compliant
• Dimensions (W×D×H): 12.8 mm × 13 mm × 5.4 mm
• Category: USB data cables / connectors

How to use

Position the connector pads on the PCB according to the manufacturer’s recommended footprint and secure the component using SMT soldering processes. After soldering, connect the appropriate USB Type-E cable or wiring to the female receptacle, ensuring correct pin alignment and secure seating. Verify solder joints and mechanical stability before powering the device.

Recommendations

Use standard SMT assembly practices: follow PCB footprint guidelines, apply appropriate solder paste volumes, and perform reflow soldering within recommended temperature profiles. Inspect solder joints and test connectivity after assembly to ensure reliable operation.
