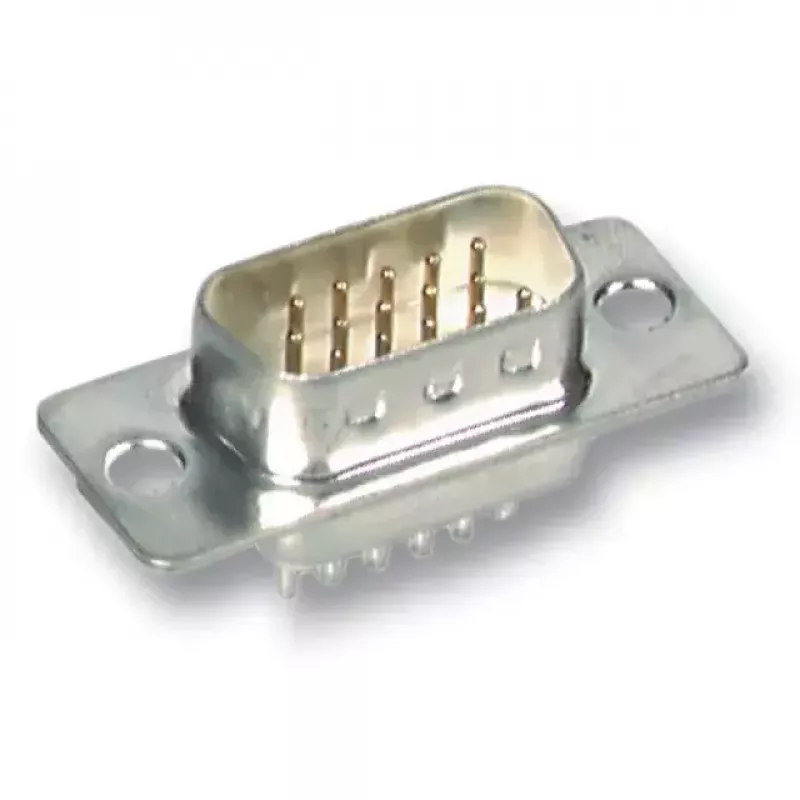

Conector de cable DSub 15 pines EFB Elektronik 34504.1

The EFB Elektronik 34504.1 wire connector is a D-Sub 15-pin connector with a tin-plated metal housing designed for reliable mating with standard D-Sub interfaces. Built to quality level III, it supports at least 50 mating cycles and is supplied as a single unit per pack. The connector is suitable for a range of electronic applications requiring a compact, robust 15-pin interface.

Advantages

The tin-plated housing provides corrosion resistance and a consistent contact surface, while the quality level III rating ensures a minimum of 50 mating cycles. The standard D-Sub 15-pin configuration guarantees compatibility with common equipment and cables. The single-piece packaging is convenient for individual repairs or small projects.

Suitable for

• Signal connections for computer and audio/video equipment
• Repairs and replacements of 15-pin D-Sub ports
• Prototyping and small-scale electronics projects

Key specifications

• Brand: EFB Elektronik
• Model/MPN: 34504.1
• EAN: 4049759052218
• Connector type: D-Sub 15-pin
• Housing: tin-plated metal
• Quality level: III (≥ 50 mating cycles)
• Pack quantity: 1 piece

How to use

Mount the connector to the corresponding D-Sub 15-pin receptacle and secure it using the standard mounting hardware or screws. Ensure contacts are aligned before mating to avoid bending pins. For installation into cables or housings, follow standard wiring and crimping procedures appropriate for D-Sub contacts and verify continuity after assembly.

Recommendations

Handle the connector gently during mating and unmating, keep contact surfaces clean and free from debris, and avoid excessive mechanical stress to maintain the specified minimum mating cycles and reliable signal transmission.
