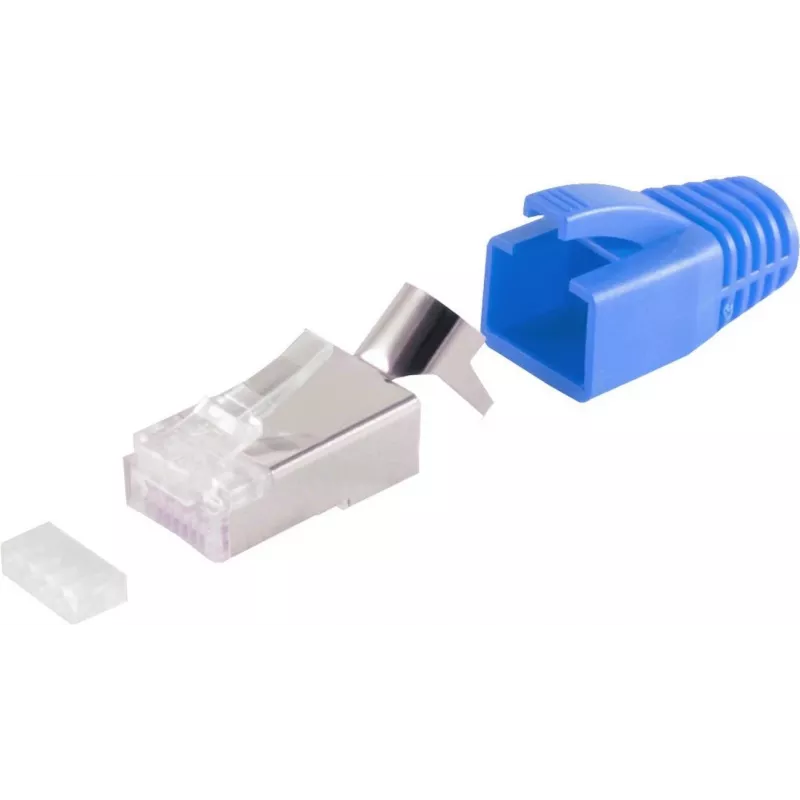

Conector de cable RJ-45 ShiverPeaks 72067-10B azul blanco

The ShiverPeaks Wire connector RJ-45 72067-10B in blue and white is an RJ-45 compatible network plug designed for terminating Ethernet cables and establishing reliable data connections. Its molded body and contact interface are intended to provide stable electrical contact for standard twisted-pair cables used in LAN and other networking systems. The compact design supports straightforward installation in patch cords and custom cable assemblies where an RJ-45 termination is required.

Advantages

This RJ-45 wire connector offers a durable molded housing in blue and white that resists deformation during insertion and removal. The contact interface is designed to ensure consistent conductivity and reduce connection loss over time. Ease of use is emphasized through a form factor that permits reliable hand or tool-assisted termination, while the construction supports repeated mating cycles suitable for both temporary and permanent cabling solutions.

Suitable for

• Terminating Ethernet patch cables (Cat5e/Cat6 compatible installations)
• Assembling custom network cables for offices and data closets
• Replacing damaged RJ-45 plugs on existing cords
• Small-scale network maintenance and field repairs

Key specifications

• Connector type: RJ-45 compatible modular plug
• Color: blue and white molded housing
• Application: termination of twisted-pair Ethernet cables
• Form factor: compact modular design for patch cords and assemblies
• Durability: designed for multiple mating cycles and repeated use

How to use

Prepare the Ethernet cable by stripping the outer jacket to expose the twisted pairs, untwist and align the conductors in the correct wiring order for the chosen pinout. Insert the aligned conductors fully into the RJ-45 connector until the cable jacket seats inside the housing. Use a compatible crimping tool to secure the contacts and strain relief, ensuring the contacts pierce the conductor insulation for reliable contact. Verify the termination with a cable tester before deployment to confirm continuity and correct pair mapping.

Recommendations

For consistent results, use the appropriate crimping tool rated for modular RJ-45 plugs, avoid excessive jacket stripping to maintain strain relief effectiveness, and test each terminated cable. Store connectors in a dry environment to prevent contamination of contact surfaces.
