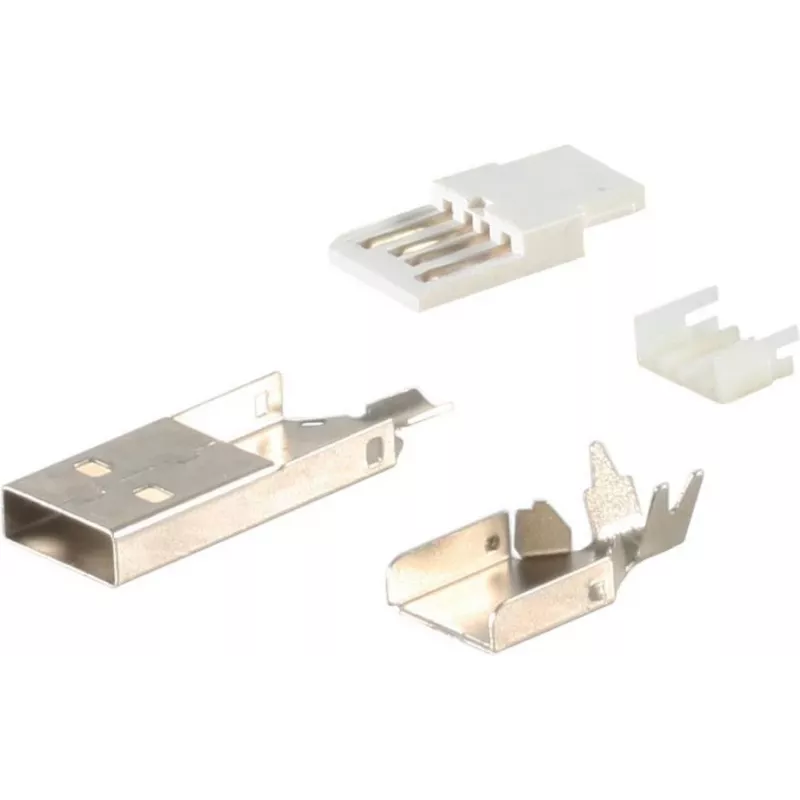

Conector de cable ShiverPeaks BS77056 USB A conector macho recto

The ShiverPeaks BS77056 USB A Male Straight is a single-piece USB A male wire connector designed for establishing a reliable, straight-line connection between cables and USB A ports. This connector is intended for use where a standard USB A male termination is required, offering a compact and conventional form factor that fits most USB A female sockets on computers, chargers, hubs and various peripherals.

Advantages

This straight USB A male connector provides a familiar mechanical fit and electrical contact pattern compatible with standard USB A ports. Its single-unit packaging makes it convenient for one-off repairs or custom cable assemblies. The straight design minimizes cable bending at the termination point and supports straightforward insertion and removal in tight or recessed ports.

Suitable for

• Repairing or replacing a damaged USB A male termination on cables
• Custom cable assembly for connecting peripherals to computers or chargers
• Prototyping and electronic projects requiring a standard USB A male plug

Key specifications

• Connector type: USB A male, straight orientation
• Pack quantity: 1 piece
• Compatibility: Designed for standard USB A female ports on computers, hubs, chargers and peripherals
• Form factor: Standard rectangular USB A housing for reliable insertion

How to use

Strip the cable to expose conductor wires according to the connector's assembly instructions, align conductors with the connector contacts following USB A pinout conventions, and secure them using the connector's termination method (soldering, crimping or screw clamp depending on the specific connector variant). Verify mechanical stability and insulation after assembly, then test electrical connectivity with a suitable device to ensure proper signal and power transmission.

Recommendations

Use appropriate tools for wire preparation and termination, follow USB wiring color codes and pinout standards, and inspect the assembled connector for secure contacts and strain relief. Avoid excessive bending near the connector and use heat shrink or cable boots where additional mechanical protection is needed.
