Placa base ASRock B860M-X GEN5 WIFI

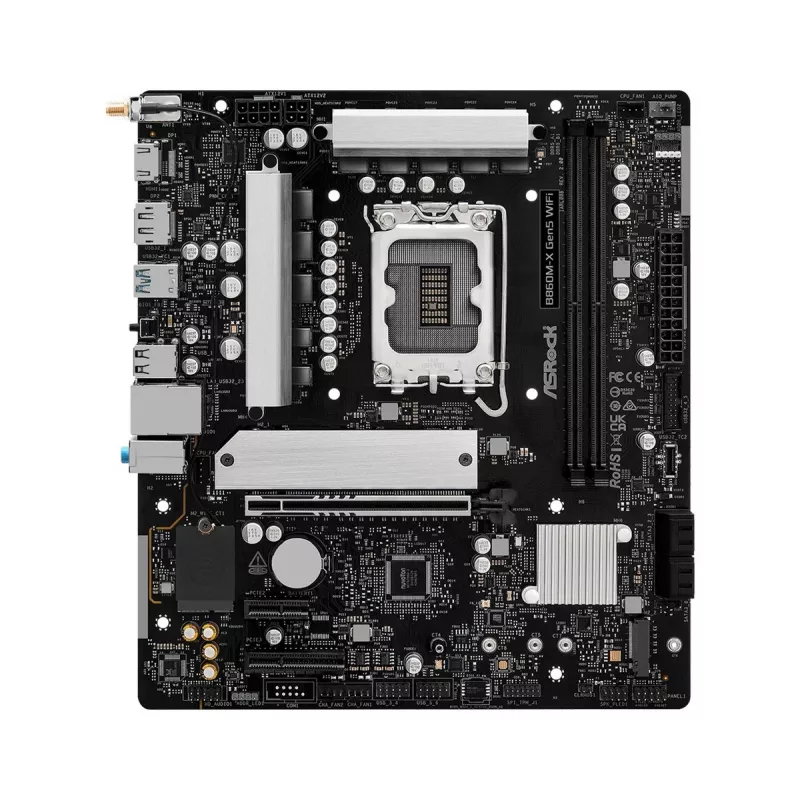

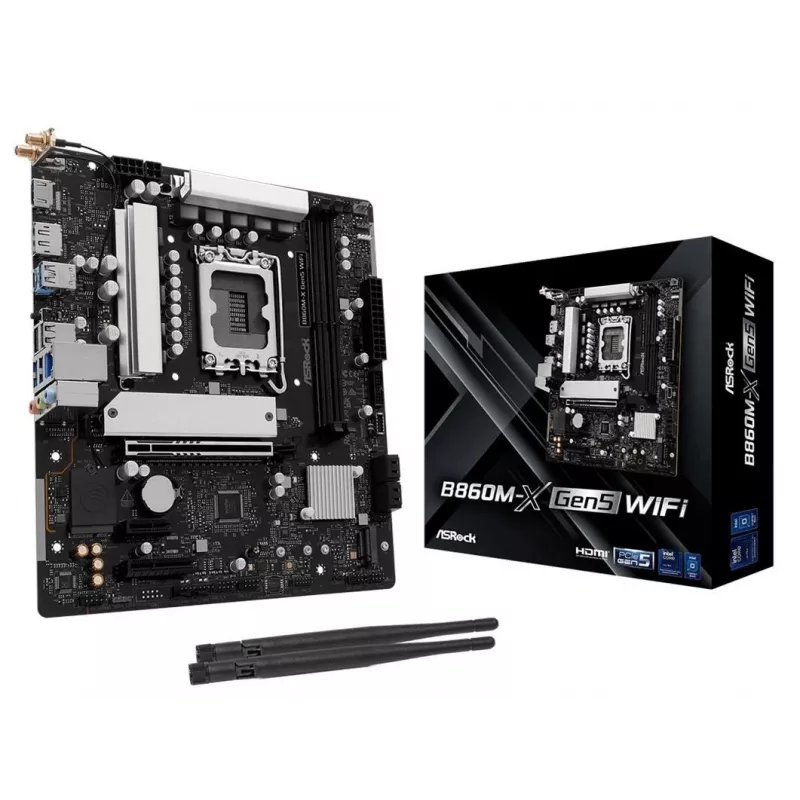

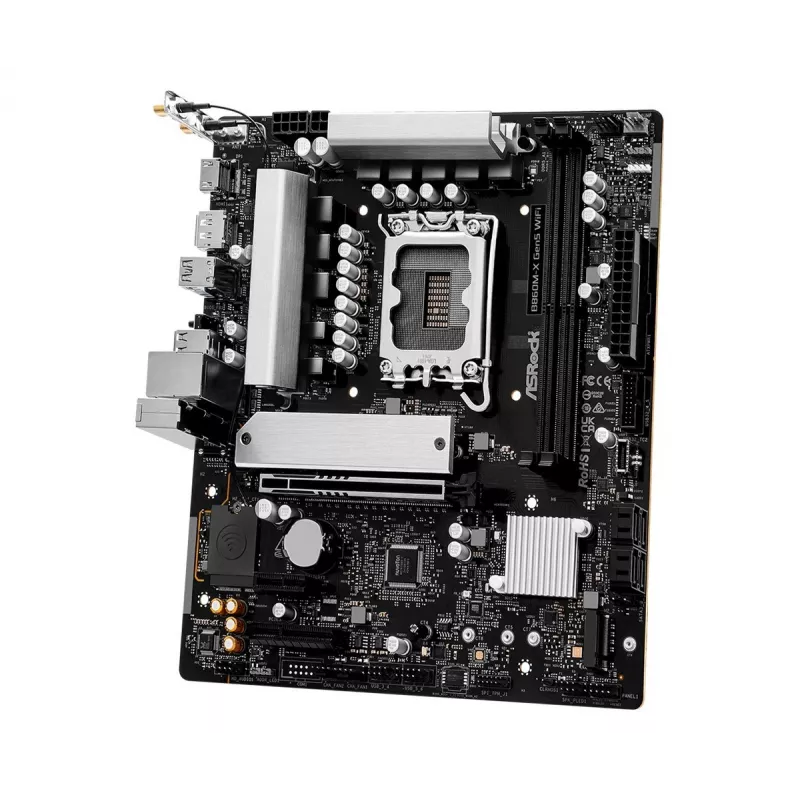

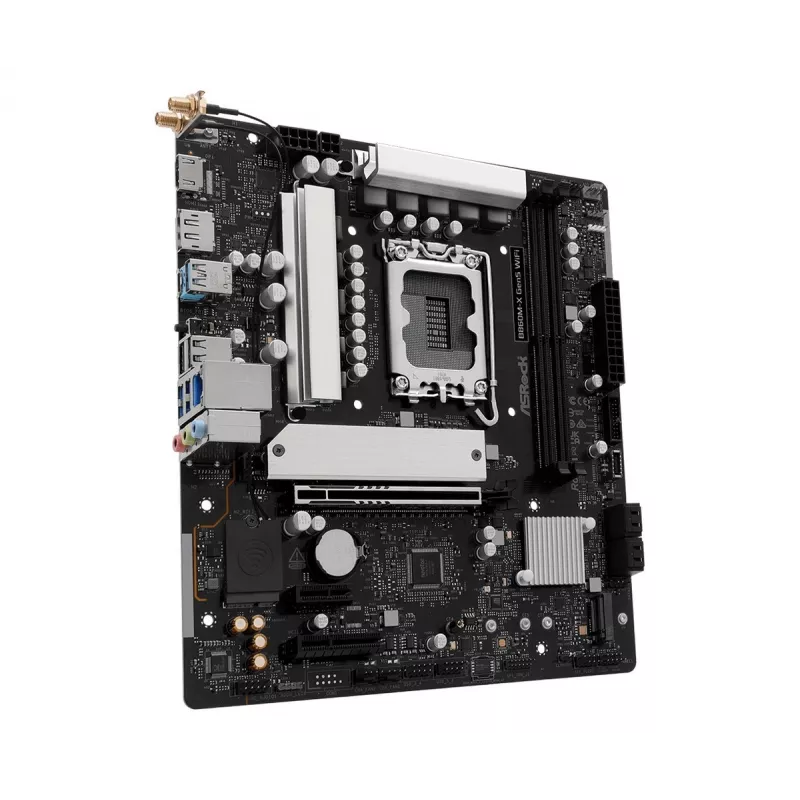

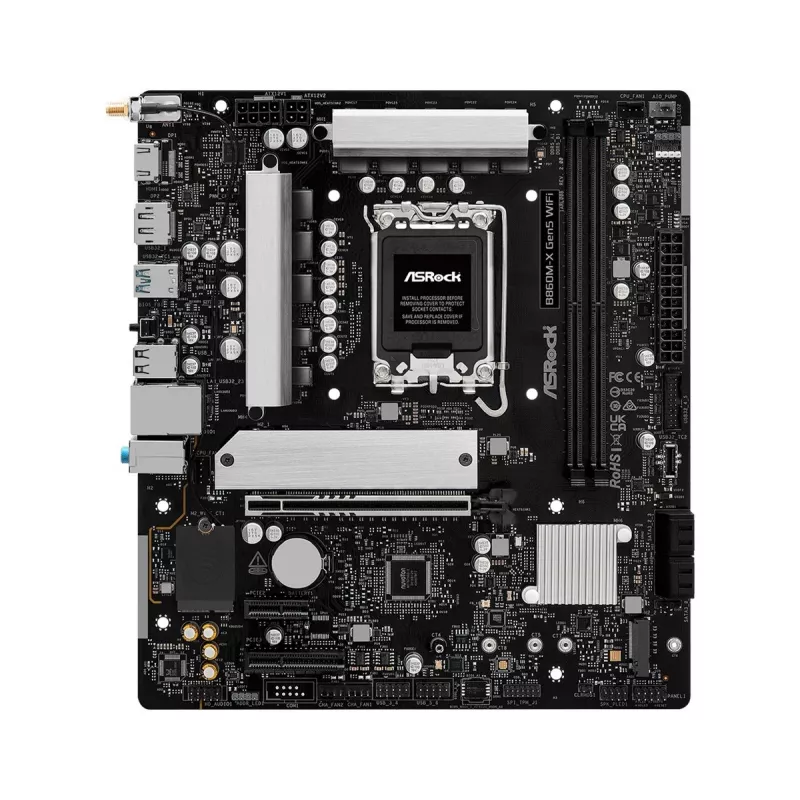

The ASRock B860M-X GEN5 WIFI Motherboard is engineered for Intel Core Ultra Processors (Series 2) with the LGA1851 socket, delivering robust performance in a compact Micro-ATX form factor. It supports dual-channel DDR5 memory, advanced PCIe Gen5 connectivity, and integrated Wi-Fi 6E for high-speed networking, making it an ideal foundation for modern builds.

Key features

• Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket with 7+1+1+1+1 power phase design
• 2 x DDR5 DIMMs supporting dual-channel up to 9066+ MHz (OC) with a maximum capacity of 128GB
• 1 x PCIe 5.0 x16 slot for high-performance graphics or storage
• 1 x Blazing M.2 (PCIe Gen5x4) and 1 x Hyper M.2 (PCIe Gen4x4) for ultra-fast SSDs
• Realtek 2.5G LAN and 802.11axe Wi-Fi 6E + Bluetooth for reliable wired and wireless connectivity

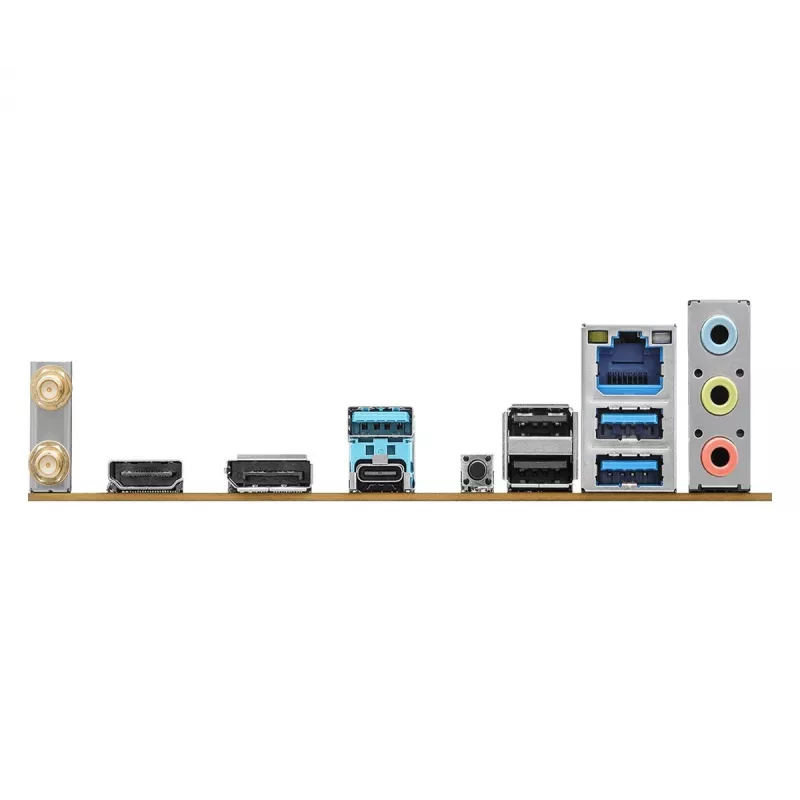

• Rear I/O includes 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1, and 2 x USB 2.0; front I/O offers 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, and 4 x USB 2.0
• Realtek ALC897 7.1 CH HD Audio Codec and BIOS Flashback for easy firmware updates
