Conector de cables DeLOCK 66258 VGA 15 pines regleta de bornes de 10 pines negro

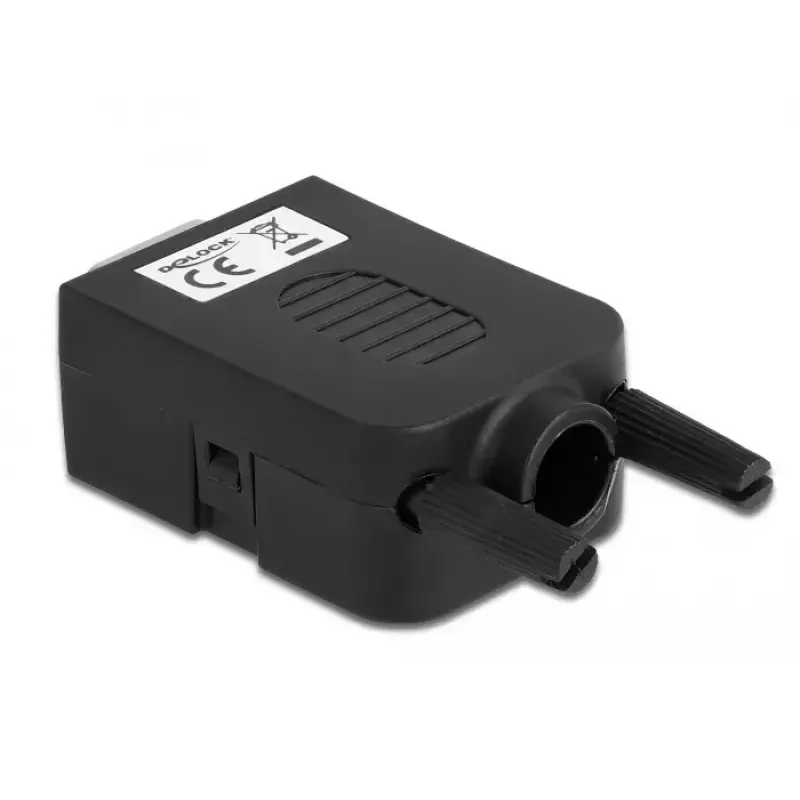

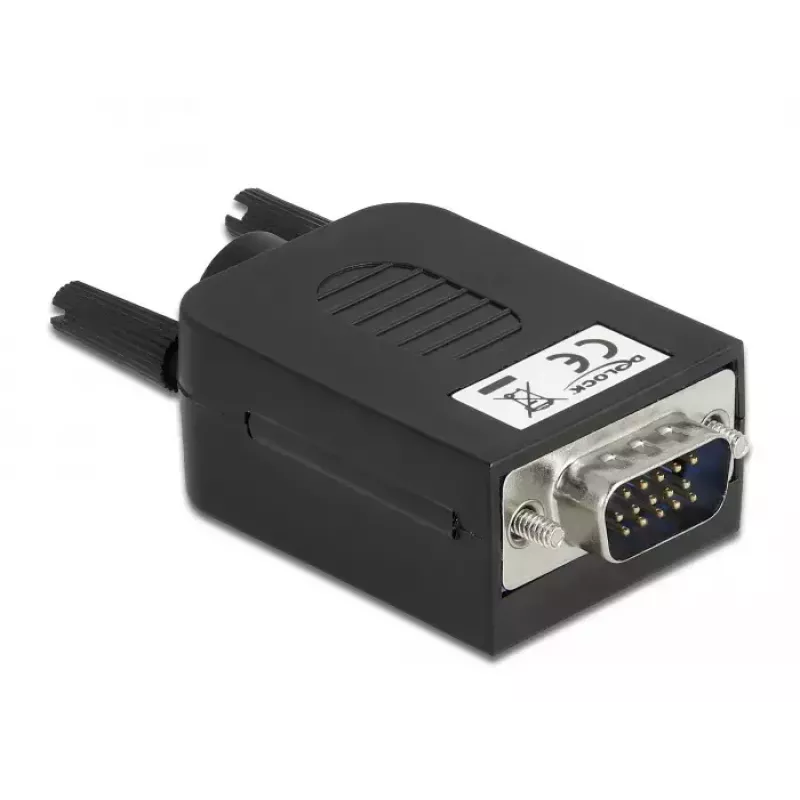

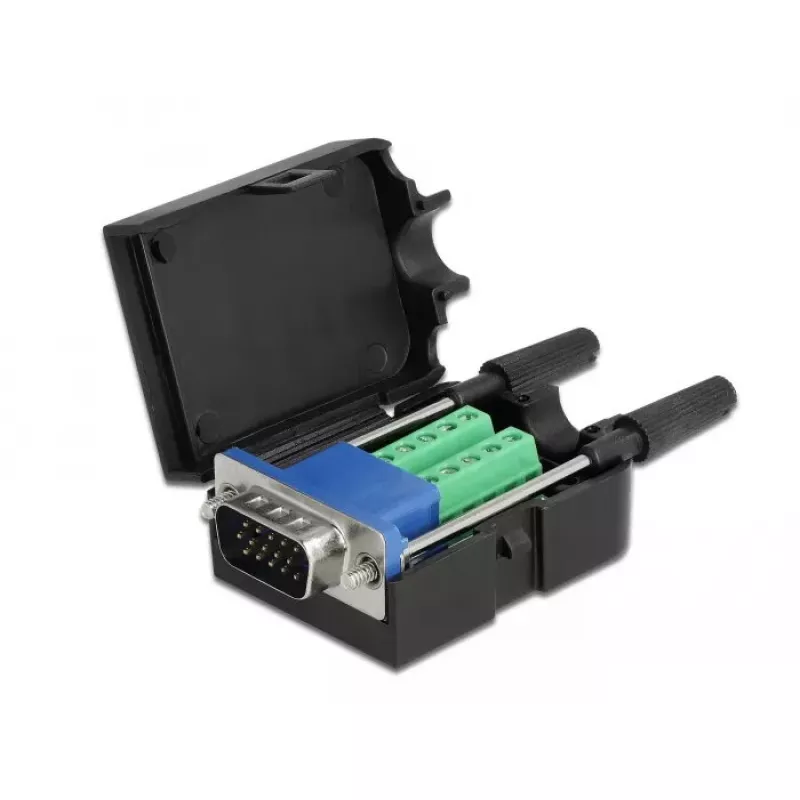

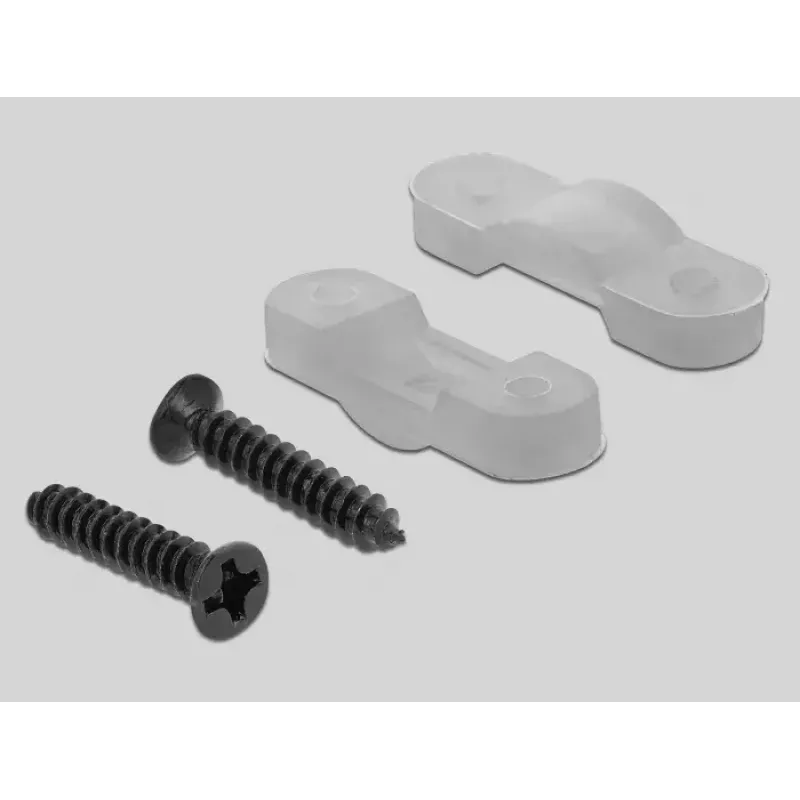

The DeLOCK 66258 wire connector combines a VGA 15-pin interface with a 10-pin terminal block in a compact black plastic enclosure. It allows direct connection of bare wires (AWG 26–18) to the VGA/10-pin interfaces and is suitable for industrial and hobby applications such as railway modelling. The enclosure protects the printed circuit board from dirt and mechanical damage while an integrated strain relief secures the cable within the housing.

Advantages

The plastic housing provides protection for the PCB and reduces the risk of short circuits caused by dust or debris. The integrated strain relief fixes and stabilises the cable, preventing accidental disconnection or stress on the wire contacts. The compact dimensions (34.4 mm × 51.8 mm × 21 mm) make the connector easy to mount in confined spaces. The product supports multiple wire gauges (AWG 26–18), offering flexibility for different wiring needs.

Suitable for

• Connecting bare wires to VGA 15-pin and 10-pin interfaces
• Industrial wiring tasks requiring compact terminal connections
• Hobby electronics and railway modelling
• Prototyping and small-scale installations

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66258
• EAN: 4043619662586
• Product colour: Black
• Supported wire size: AWG 26–18
• Connector types: VGA 15-pin and 10-pin terminal block
• Dimensions (W × D × H): 34.4 mm × 51.8 mm × 21 mm
• Packaging: 1 piece in polybag

How to use

Strip the insulation from the wire ends to the appropriate length for the terminal contacts. Insert the bare wires into the terminal block openings and secure them according to the terminal’s fastening method (e.g., screws or clamps). Route the cable through the enclosure and position it so the integrated strain relief can be engaged. Close the housing to protect the PCB and ensure the strain relief holds the cable firmly in place.

Recommendations

Use the connector with wires in the supported AWG range (26–18) to ensure reliable electrical contact. Avoid exposing the plastic enclosure to excessive heat or solvents. Check that all wire terminations are tightened properly and that the strain relief is engaged to prevent wire movement during operation.
