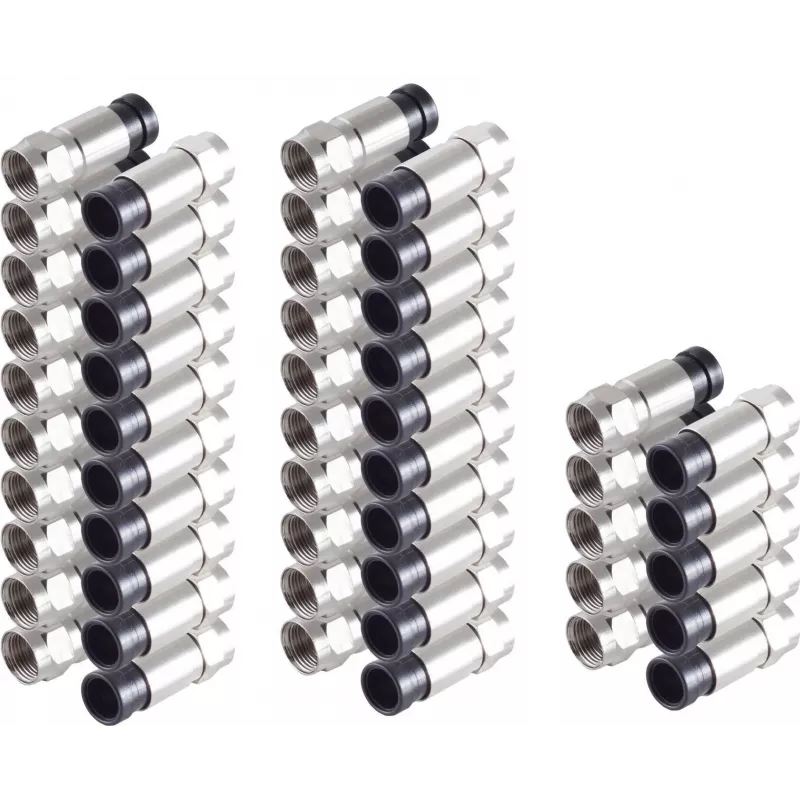

Conector de compresión ShiverPeaks 85029-A-SET25 para cable de 7 mm, set de 25

Compression connector ShiverPeaks 85029-A-SET25 for 7 mm cable, set of 25 is a group of compression-style F-connectors intended for use with 7 mm coaxial and similar cables. Supplied as a pack of 25 identical connectors, each unit creates a secure mechanical and RF-tight joint by compressing the connector body around the cable outer jacket and center conductor. The design is suitable for installations in TV, antenna and cable distribution systems where consistent, repeatable connections for 7 mm diameter cables are required.

Advantages

The compression mounting provides a reliable, corrosion-resistant mechanical connection and consistent RF performance over many installations. Supplied as a set of 25, these connectors enable efficient bulk installation and replacement. The connectors are compatible with standard 7 mm coaxial cables and are designed to deliver uniform contact pressure for predictable impedance and low signal loss.

Suitable for

• Home and apartment TV antenna installations
• Cable television distribution and branch connections
• Satellite and terrestrial receiver connections using 7 mm cable
• Service and maintenance tasks where multiple identical F-type terminations are needed

Key specifications

• Connector type: compression-style F-type
• Cable diameter compatibility: 7 mm
• Pack quantity: 25 connectors
• Connection method: mechanical compression for outer conductor and center contact
• Intended use: TV, antenna and cable distribution networks

How to use

Prepare the 7 mm coaxial cable by stripping the jacket and dielectric to the dimensions recommended for the connector, ensuring the center conductor is straight and exposed to the correct length. Slide the connector body onto the cable until the dielectric seats inside and the outer braid is held by the compression sleeve. Use the appropriate compression tool to compress the connector body evenly until a firm mechanical stop is reached. Verify the assembly visually and with a continuity or signal test to ensure correct installation and RF continuity.

Recommendations

Use a compression tool designed for the connector series to ensure correct compression force and repeatable results. Store connectors in a dry environment to avoid contamination during installation. For best signal performance, confirm cable preparation dimensions match the connector specifications and perform a brief signal test after installation.
