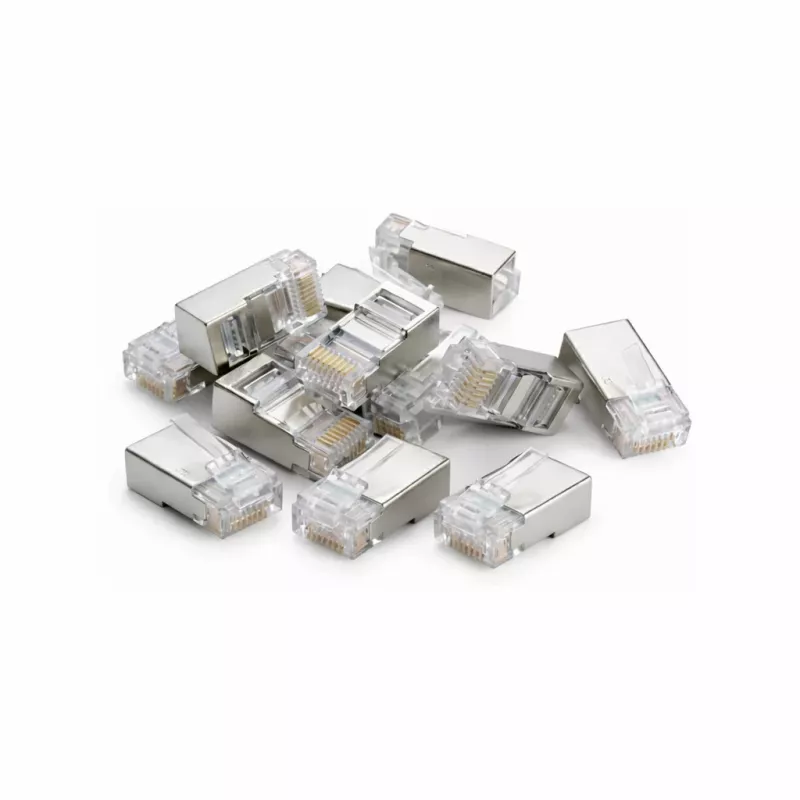

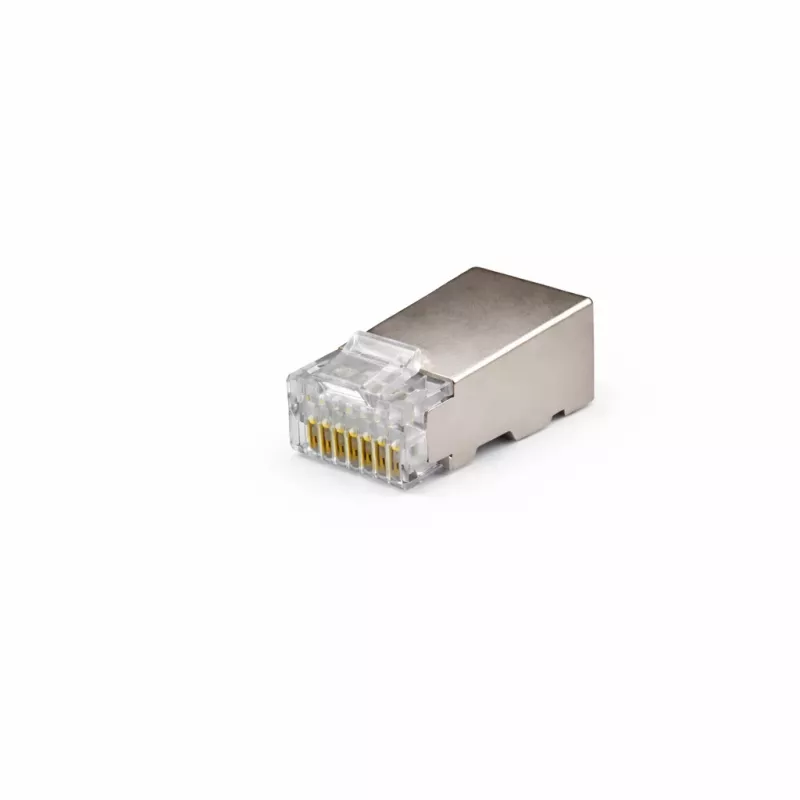

Conector de red DSIT FTP RJ45 CAT5e para hilos flexibles y macizos - pack de 10

Gold-plated contacts with 3µm plating ensure reliable Gigabit Ethernet performance, while the transparent polycarbonate housing allows visual inspection of termination quality. This 10-piece pack of DSIT FTP RJ45 CAT5e connectors is engineered for both flexible stranded and solid core cables, making it a versatile choice for professional network installations.

Overview

The DSIT FTP RJ45 CAT5e connector is a high-performance modular plug designed for terminating twisted-pair copper cables in Ethernet networks. It supports Category 5e cabling and is compliant with TIA/EIA-568-B.2 standards, ensuring compatibility with existing infrastructure. The connector features a foil shielded twisted pair (FTP) design, which provides protection against electromagnetic interference (EMI) and crosstalk, making it suitable for environments with high electrical noise. With support for Power over Ethernet (PoE), it can deliver both data and power to connected devices such as IP cameras, VoIP phones, and wireless access points.

What stands out

• Gold-plated contacts (3µm) for superior conductivity and corrosion resistance
• Transparent polycarbonate housing allows easy inspection of wire placement before crimping
• Compatible with both stranded (flexible) and solid core conductors, AWG 24-26
• Supports Gigabit Ethernet (1000 Mbps) and Power over Ethernet (PoE)
• Integrated strain relief protects the cable from bending stress
• Durable design rated for 750 mating cycles

Technical details

• Connector Type: RJ45, 8P8C
• Cable Category: CAT5e
• Shielding: FTP (Foiled Twisted Pair)
• Termination Method: Crimp-on
• Conductor Gauge: AWG 24-26
• Housing Material: Polycarbonate (PC)
• Contact Plating: Gold, 3µm
• Operating Temperature: -10°C to 60°C
• Standard Compliance: TIA/EIA-568-B.2
• Pack Quantity: 10 pieces

Our verdict

A reliable and cost-effective solution for network professionals, offering excellent performance, durability, and ease of use. The transparent housing and dual cable compatibility make it a standout choice for both new installations and repairs.
