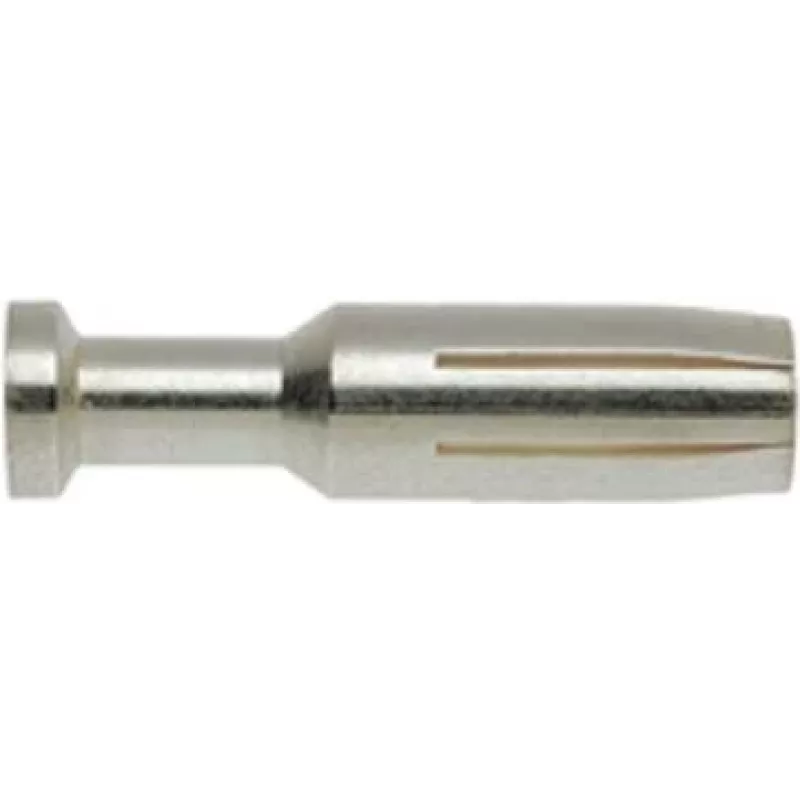

Conector Harting Han C 09320006209 para cable de 10 mm², conector rectangular de panel industrial

The Harting Connector Han C 10mm² is a robust industrial rectangular connector designed for reliable power and signal transmission in machinery and control cabinets. Built to withstand mechanical stress and frequent mating cycles, this Han C series connector offers a compact footprint while supporting conductors up to 10 mm². The construction focuses on secure contact retention and straightforward assembly, making it suitable for a variety of industrial installations where durability and consistent electrical performance are required.

Advantages

The connector provides stable electrical contact and mechanical protection in harsh environments, with a compact rectangular housing that facilitates panel or cable mounting. It is engineered for repeated connection cycles and offers reliable conductor clamping for cross-sections up to 10 mm². The design reduces installation time through accessible terminals and straightforward wiring, while the housing shields contacts from dust and incidental contact during operation.

Suitable for

• Power distribution in industrial control cabinets
• Machine-to-machine power and signal connections
• Panel mounting where space is limited
• Applications requiring frequent mating and unmating

Key specifications

• Conductor cross-section compatibility: up to 10 mm²
• Rectangular industrial connector format (Han C class size)
• Durable contact system designed for multiple mating cycles
• Protective housing for mechanical and environmental protection
• Suitable for power and signal connections in industrial equipment

How to use

Prepare conductors to the recommended stripping length and insert them into the appropriate terminals, ensuring secure clamping according to the terminal type. Mount the connector housing on the panel or secure it to the mating hood as required by the application. Align the mating halves and engage until the latch or locking mechanism secures the connection. Verify electrical continuity and torque settings where applicable before placing the equipment into service.

Recommendations

Use appropriately sized ferrules or cable lugs for stranded conductors to ensure reliable clamping. Verify compatibility with mating housings and sealing accessories for the intended environmental conditions. Follow applicable electrical standards and torque specifications during installation to maintain safe and durable connections.
