Conector hembra de 3,5 mm Kindermann 7456000411

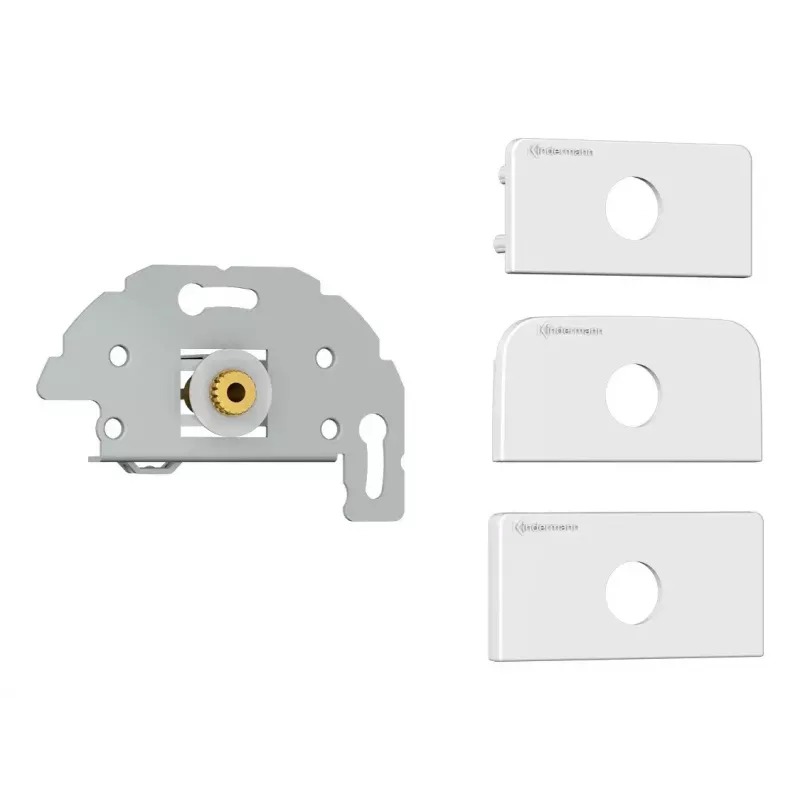

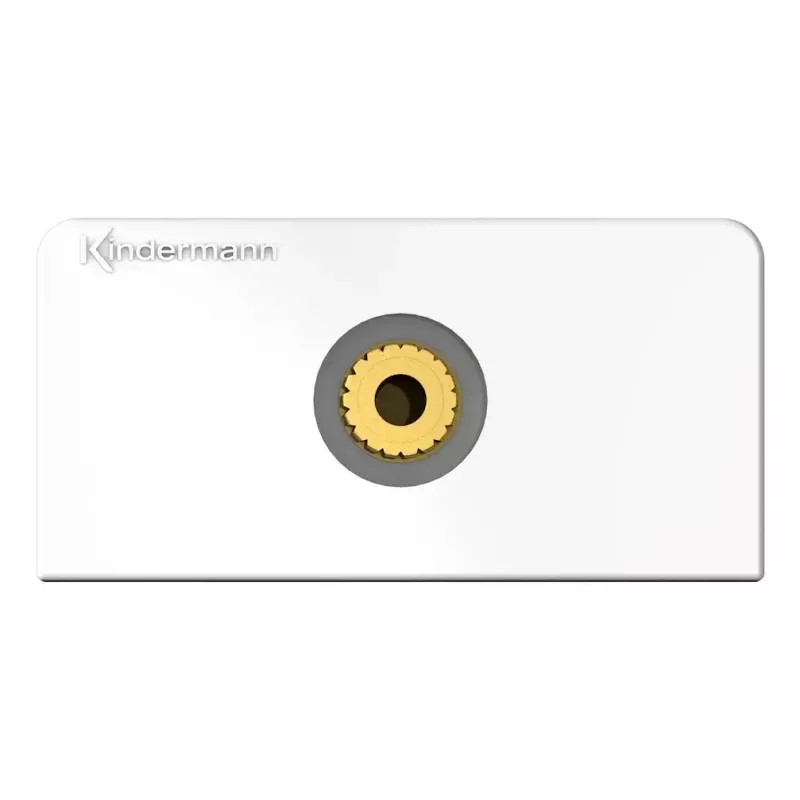

Kindermann 7456000411 is a 3.5 mm socket outlet in RAL 9010 white designed for audio connections. The delivery includes an adapter plate with a plastic cover in sizes 50 x 25 mm, 54 x 27 mm and 55 x 28 mm. The connector uses a soldering connection and the module is half-size with a minimum installation depth of 37 mm.

Advantages

The socket outlet provides a compact single-module solution for 3.5 mm audio jacks, made from durable plastic and finished in white (RAL 9010). Included adapter plates allow flexible mounting in different cutout dimensions. The soldering connection offers a reliable electrical contact for audio signals, and the new tool-free mounting option simplifies installation.

Suitable for

Key specifications

How to use

Prepare the mounting cutout matching one of the supplied adapter plate sizes. Connect audio wires to the socket by soldering them to the designated terminals, observing correct polarity where applicable. Insert the module into the wall or panel opening and secure it using the included mounting method; the product supports tool-free mounting for fast installation. After installation, plug in a 3.5 mm audio connector to verify signal transmission.

Recommendations

For reliable long-term operation, use appropriate soldering technique and ensure cables are strain-relieved. Verify compatibility of the installation depth and adapter plate size before fitting. If unsure about electrical work, consult a qualified installer.
