Toma XLR Kindermann 7444000416

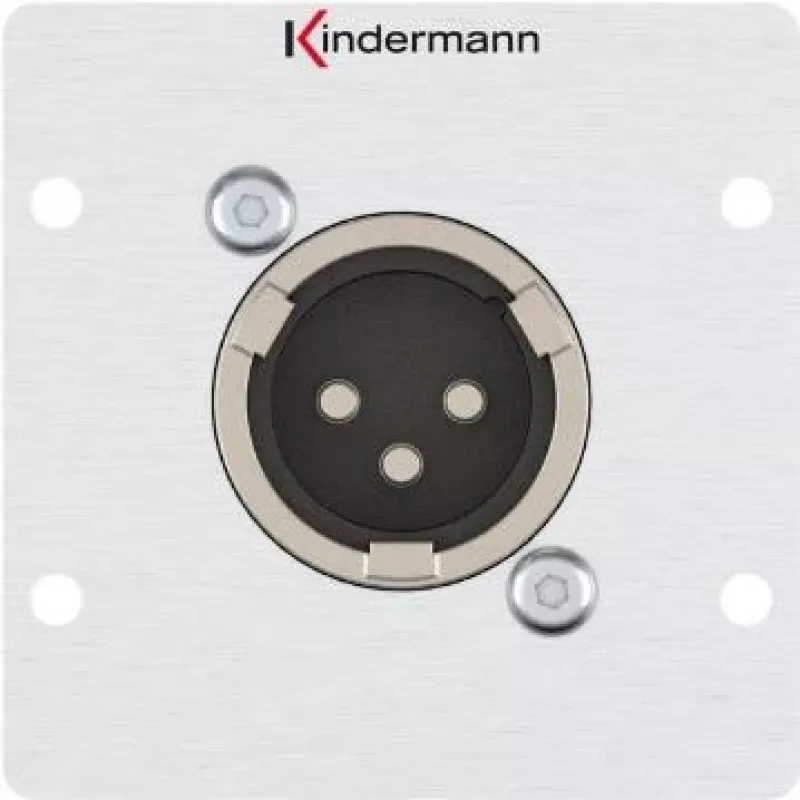

The Kindermann 7444000416 is a full-size adapter plate with a Neutrik 3-pin XLR female socket and soldering connections, made from anodized aluminium. Designed for professional audio installations, the plate accepts one module and has compact dimensions of 50 mm width, 32 mm depth and 50 mm height. The aluminium finish provides corrosion resistance and a consistent appearance in studio or live environments.

Advantages

The XLR socket offers secure microphone and line-level connections via solder terminals for permanent wiring. The anodized aluminium plate is lightweight yet robust, easy to mount in panels or housings, and matches metal installation systems. Compact dimensions save space while maintaining full-size XLR compatibility.

Suitable for

Key specifications

How to use

Mount the adapter plate into the appropriate panel cut-out or housing using compatible screws or fixing points. Solder audio cables to the XLR solder terminals following the standard pin assignment (pin 1 = ground, pin 2 = hot, pin 3 = cold). After soldering, check continuity and polarity before final assembly and secure the plate in place.

Recommendations

Use the socket outlet in dry, indoor environments and avoid mechanical stress on solder joints by providing strain relief for connected cables. For long runs or critical signals, verify shielding and grounding to minimise interference.
