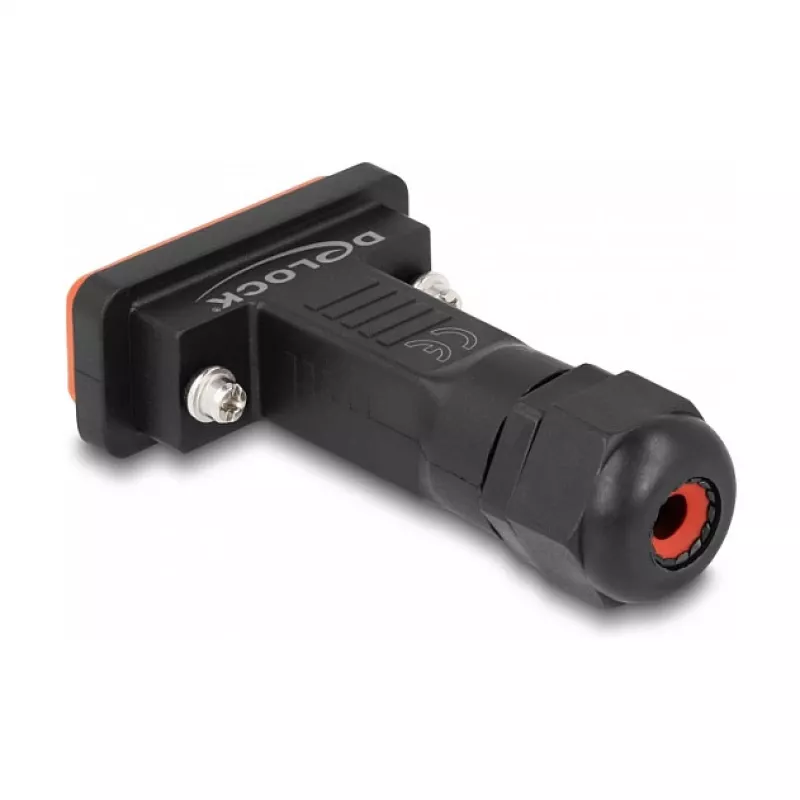

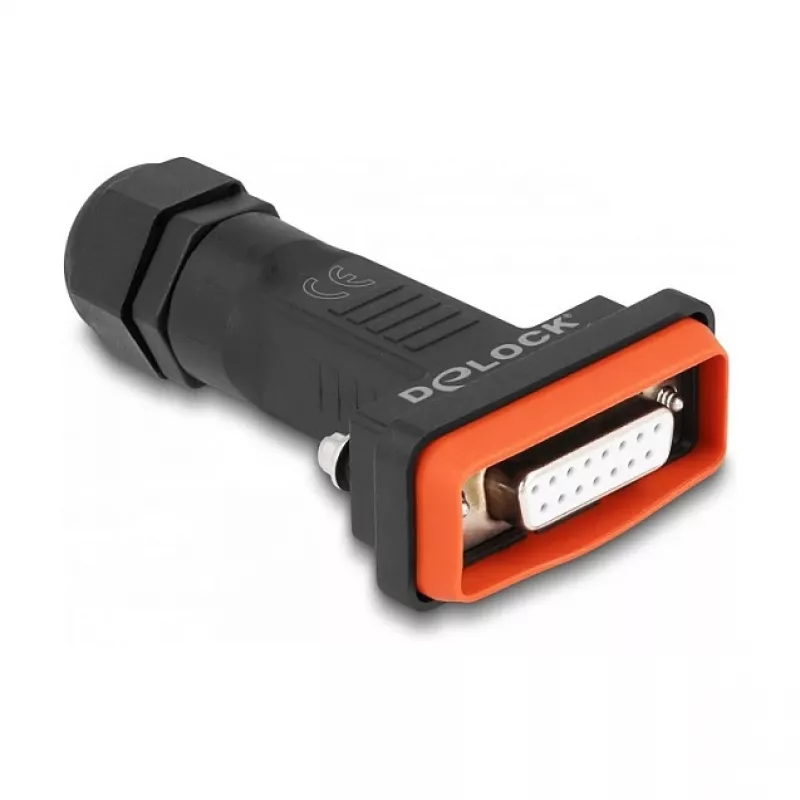

Conector hembra DeLOCK D-Sub de 15 contactos IP67 impermeable negro/naranja

The DeLOCK D-Sub 15 pin female connector with IP67 waterproof housing is designed for solder assembly and cable assembly. It provides protection against moisture for cable wires, making it suitable for installation in switch cabinets and other environments where a sealed connection is required. The product measures 80 mm in width, 49 mm in depth and 22 mm in height and is available in black and orange.

Advantages

The IP67-rated housing keeps cable wires protected from dust and water ingress. The 15 soldering pins allow secure electrical connections through solder assembly. The robust housing supports use in industrial settings and facilitates straightforward mounting of the soldered cable and connector to the enclosure.

Suitable for

• Cable assembly and custom cable harnesses
• Connections inside switch cabinets and control panels
• Industrial equipment requiring sealed D-Sub connections
• Environments where moisture protection is necessary

Key specifications

• Brand: DELOCK
• Model / MPN: 87807
• EAN: 4043619878079
• Connector: D-Sub 15 pin (female)
• Contacts: 15 soldering pins
• Protection class: IP67 (housing)
• Colour: Black, Orange
• Dimensions (W x D x H): 80 mm x 49 mm x 22 mm

How to use

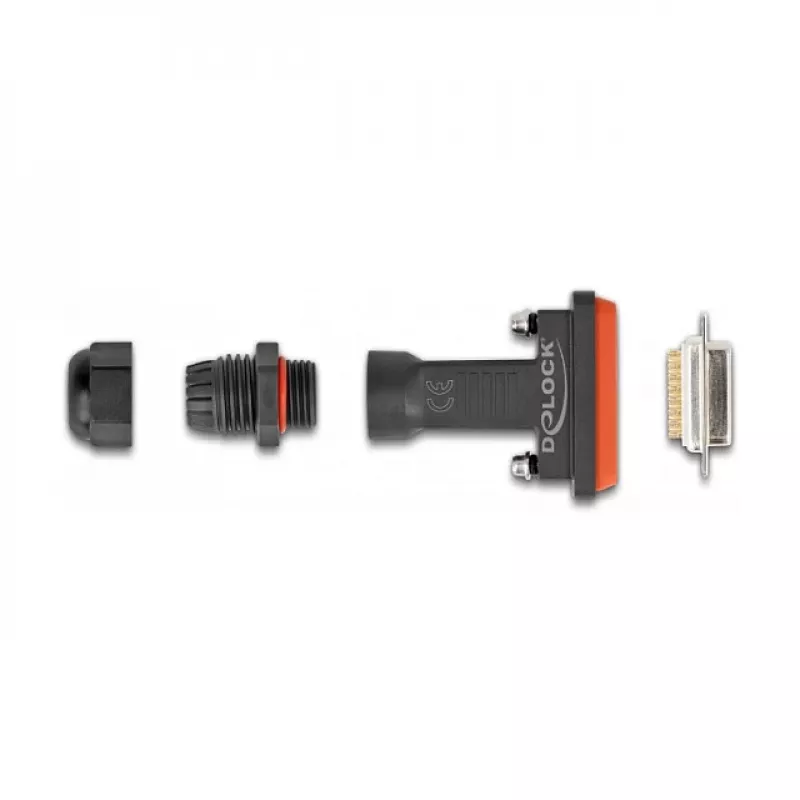

Feed the prepared cable wires through the IP67 housing and solder each wire to the corresponding soldering pins of the D-Sub 15 pin female connector. After soldering, position the connector assembly into the housing and secure it according to the enclosure’s mounting method so that the soldered cable and connector are fixed together within the sealed housing.

Recommendations

Ensure that cable insulation is stripped only as much as needed for reliable solder joints and verify pin assignment before soldering. Tighten housing seals and gaskets properly to maintain IP67 protection. Use this connector in installations where sealed, robust D-Sub connections are required and avoid exposing the connector to impacts beyond its mechanical rating.
