Conector de cables D-Sub de 25 pines DeLOCK 66710

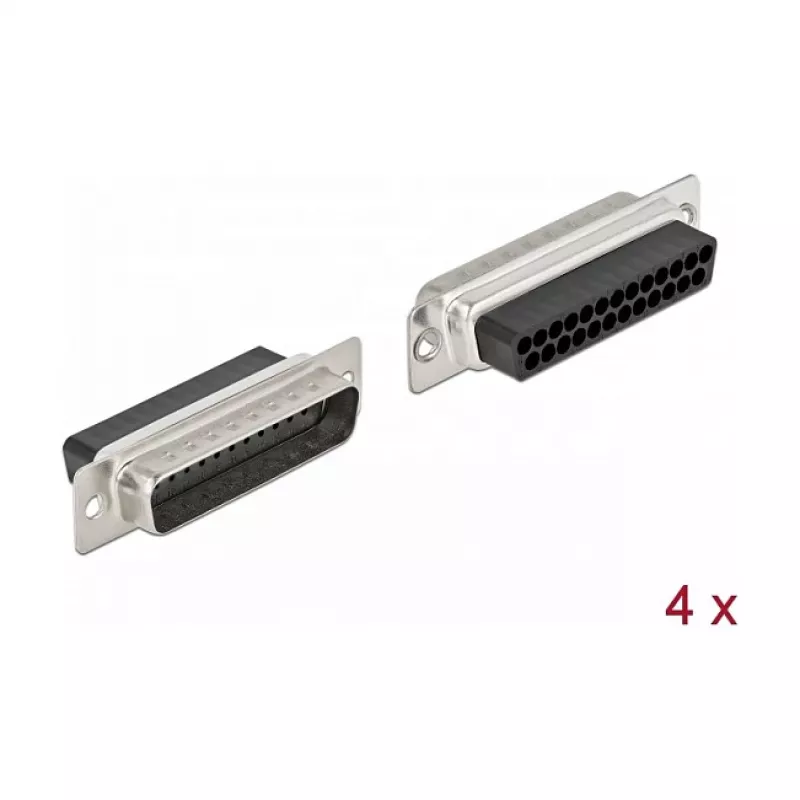

The DeLOCK 66710 wire connector is a D-Sub 25 pin male connector designed for connecting devices that use a 25-pin D-Sub interface. The connector features a black and silver finish and a compact form factor with dimensions of 17.5 mm width, 53 mm depth and 12.5 mm height. Each pack contains four identical connectors manufactured in China, suitable for installations where reliable D-Sub connections are required.

Advantages

The DeLOCK 66710 combines a standard 25-pin D-Sub male layout with a small footprint, enabling straightforward integration into cable assemblies or panel interfaces. Its metal and plastic construction in black and silver provides a durable mating surface and visual distinction for cable routing. Supplied in packs of four, the product allows multiple connections to be created or replaced without ordering single pieces.

Suitable for

• Cable assemblies and custom cable terminations using a 25-pin D-Sub male connector
• Replacement of worn or damaged D-Sub male connectors in equipment
• Prototyping and small-scale production where multiple connectors are needed

Key specifications

• Connector type: D-Sub 25 pin, male
• Color: Black and silver
• Dimensions: 17.5 mm (W) x 53 mm (D) x 12.5 mm (H)
• Pack quantity: 4 connectors per pack
• Country of manufacture: China

How to use

Prepare the cable conductors and align them with the corresponding D-Sub 25 pin contact points according to the wiring standard in use. Insert and secure the conductors or contact pins into the connector body following standard crimping, soldering, or assembly procedures appropriate for D-Sub connectors. After assembly, verify secure mechanical fastening and correct pin-to-pin continuity before placing the connector into service.

Recommendations

Handle the connector with care during assembly to avoid bending pins; use appropriate tools for crimping or soldering and perform continuity checks with a multimeter to ensure reliable connections. Store unused connectors in a dry environment to prevent corrosion or contamination.
