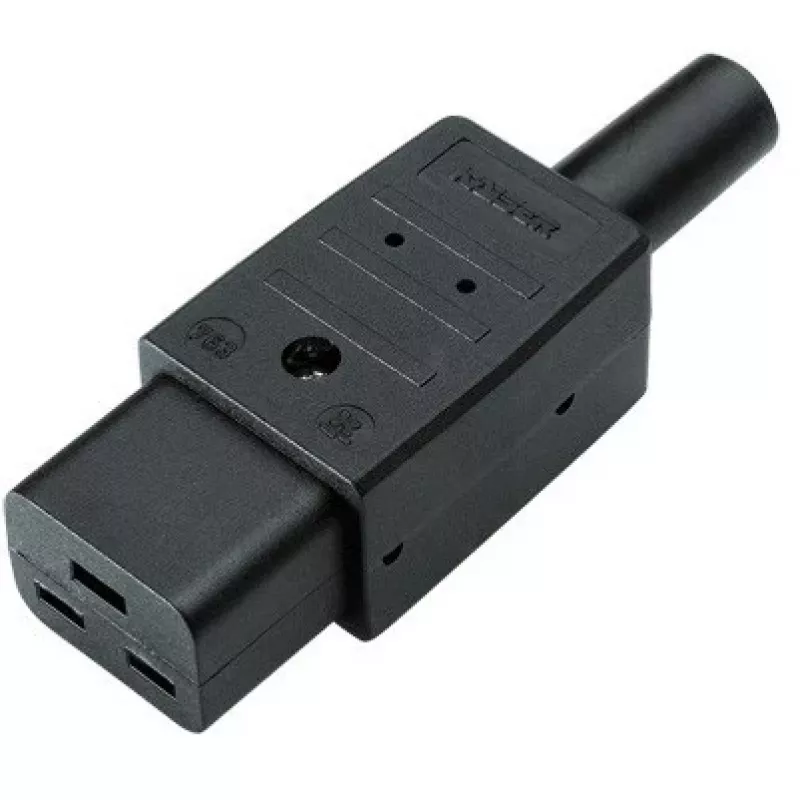

Conector hembra eléctrico Bachmann 915.174

The Bachmann 915.174 electrical socket coupler is designed for secure connections of cables up to 3G 1.50 mm² and rated for 16 A. It features a thermoplastic housing with an earthing contact (C19) and a kink protection nozzle for safe line assembly. The coupler is suitable for standard electrical systems and offers a compact, durable solution for connecting mating plugs.

Advantages

The thermoplastic version provides electrical insulation and resistance to wear, while the integrated earthing contact (C19) ensures grounding continuity. The kink protection nozzle protects the cable entry from bending stress and prolongs service life. The compact design enables straightforward installation in both residential and commercial settings.

Suitable for

• Connecting equipment with cables up to 3G 1.50 mm²
• Temporary or permanent line assembly requiring a 16 A coupler
• Applications needing earthing contact C19

Key specifications

• Manufacturer: Bachmann
• Model: 915.174
• EAN: 4016514014385
• Rated current: 16 A
• Cable compatibility: up to 3G 1.50 mm²
• Housing material: thermoplastic
• Earthing contact: C19
• Feature: kink protection nozzle for line assembly

How to use

Strip the cable to the appropriate length, insert conductors into the corresponding terminals of the coupler and secure them according to the manufacturer's torque or fastening instructions. Ensure the earthing conductor is connected to the C19 contact. Fit the kink protection nozzle over the cable entry and assemble the housing to secure the connection. Verify continuity and correct polarity before applying power.

Recommendations

Use the coupler only with cables that match the specified 3G 1.50 mm² rating and within the 16 A limit. Inspect the kink protection and housing for damage before installation and perform continuity and insulation checks after assembly.
