Conector hembra RCA para soldar DeLOCK 86787

Conector hembra RCA para soldar DeLOCK 86787
Conector hembra RCA para soldar DeLOCK 86787
-20%
Black Week
Conector hembra RCA para soldar DeLOCK 86787
Conector hembra RCA para soldar DeLOCK 86787
8,30 €
10,36 €−20 %
PDF
PDF

Envíos y devoluciones

Entrega estimada lunes, 7 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

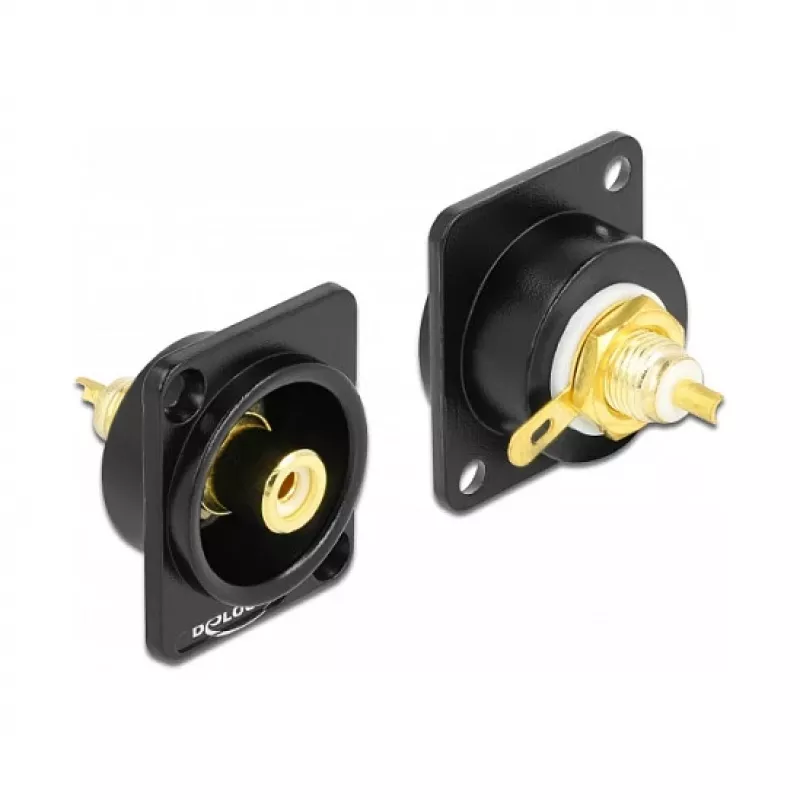

The DeLOCK RCA Female to Solder Connector (model 86787) is a compact panel-mount RCA socket designed for installation in panels or cases with D-type openings for XLR jacks. The black female RCA connector accepts standard RCA plugs and is intended for integrating analogue audio equipment into professional audio systems or custom installations. Its dimensions (25.6 mm width, 28.4 mm depth, 30.8 mm height) make it suitable for space-conscious assemblies and repair work.

Advantages

This RCA female connector provides a stable mechanical mounting for panels or cases with D-type cutouts and allows direct soldering of signal and ground conductors. The standard RCA female interface ensures compatibility with common analogue audio cables. The compact footprint and durable construction simplify integration into custom audio installations, repairs, or equipment modifications.

Suitable for

  • Integrating analogue audio devices into professional audio systems
  • Custom audio panel builds and enclosures with D-type/XLR-style openings
  • Repairing or replacing RCA sockets in audio equipment
  • DIY electronics projects requiring a panel-mounted RCA female connector

Key specifications

  • Brand: DELOCK
  • Model / MPN: 86787
  • EAN: 4043619867875
  • Connector type: RCA female (panel mount)
  • Mounting: fits D-type openings for XLR jacks (panel/case mount)
  • Termination: solder connections
  • Colour: Black
  • Dimensions (W × D × H): 25.6 mm × 28.4 mm × 30.8 mm

How to use

Prepare a D-type or compatible opening in the panel or enclosure, insert the DeLOCK RCA connector and secure it according to the panel design. Solder the signal and ground wires to the provided solder terminals, ensuring correct polarity and solid solder joints. Once soldered, verify mechanical stability and test the connection with appropriate RCA cables and audio equipment.

Recommendations

Use standard RCA cables and ensure solder joints are clean and insulated. When installing in professional racks or flight cases, confirm the D-type opening dimensions match the connector and allow strain relief for attached cables to prevent stress on the solder joints.
Aspectos destacados
  • Integrating analogue audio devices into professional audio systems
  • Custom audio panel builds and enclosures with D-type/XLR-style openings
  • Repairing or replacing RCA sockets in audio equipment
  • DIY electronics projects requiring a panel-mounted RCA female connector
  • Brand: DELOCK
  • Model / MPN: 86787
  • EAN: 4043619867875
  • Connector type: RCA female (panel mount)
  • Mounting: fits D-type openings for XLR jacks (panel/case mount)
  • Termination: solder connections
  • Colour: Black
  • Dimensions (W × D × H): 25.6 mm × 28.4 mm × 30.8 mm

Especificaciones

Especificaciones
Altura
30.8 mm
Ancho
25.6 mm
Color del producto
Negro
Conectores
RCA
Formato del conector
Recto
Género del conector
Hembra
Profundidad
28.4 mm
Recubrimiento de los contactos del conector
Zinc
Tipo de embalaje
Bolsa de plástico

Folleto

Abrir documento

Documento

Abrir documento
Historial de precios de los últimos 6 meses
Conector hembra RCA para soldar DeLOCK 86787
Actual
8,30 €
Mínimo 7 d
8,30 €
Máximo 7 d
9,83 €
Variación 24 h
-1,53 €   -16%
Variación 7 d
-1,43 €   -15%
Variación 30 d
-6,48 €   -44%
