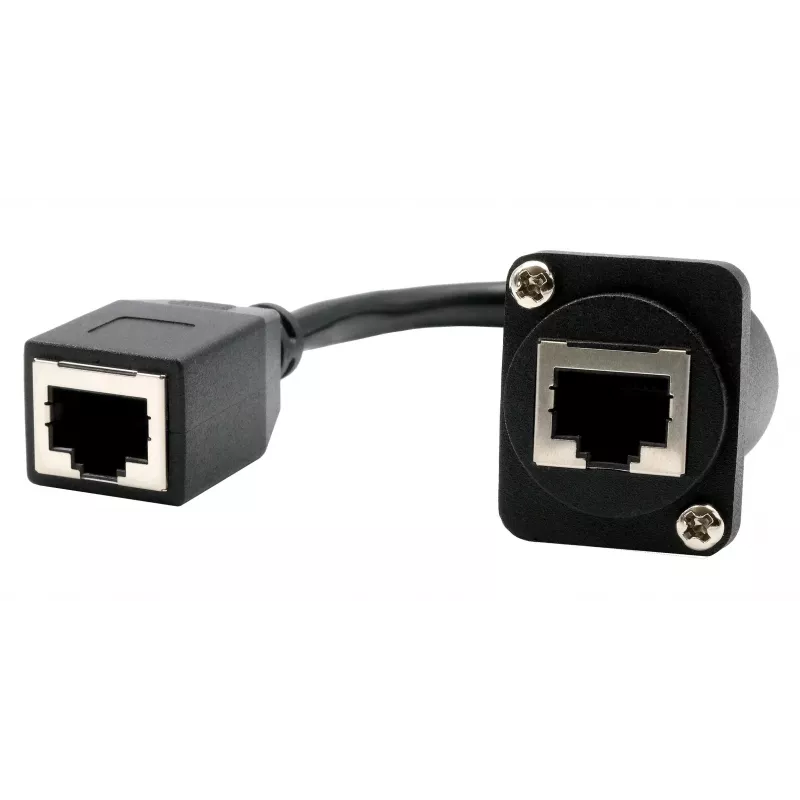

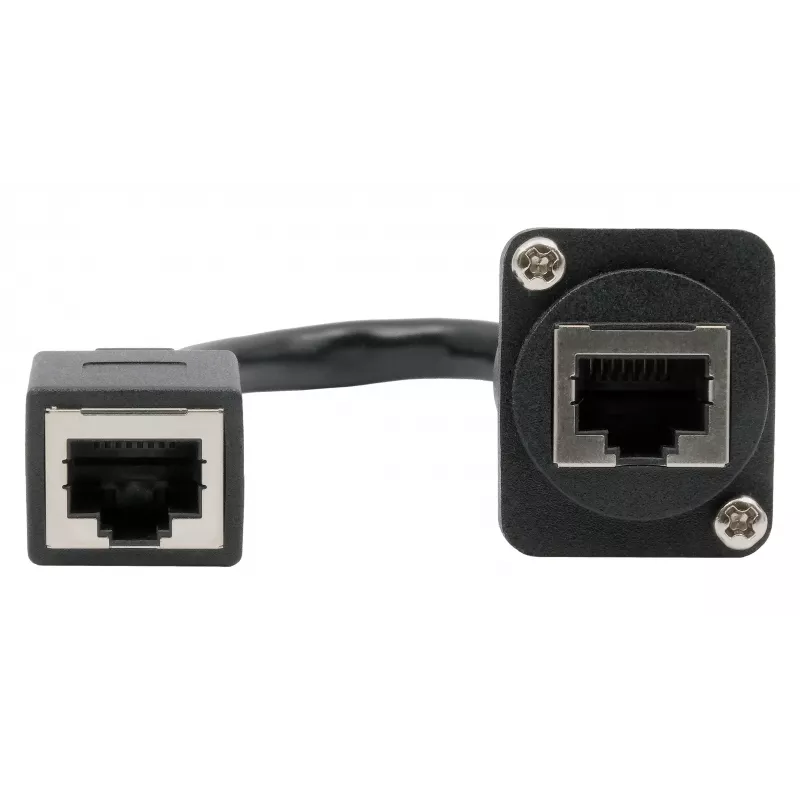

Conector hembra RJ45 tipo D para empotrar EXSYS, hembra a hembra, CAT.5e, 20 cm, apantallado, negro EX-49160

Connecting two RJ45 cables in tight spaces or through panels often requires a reliable coupler that maintains signal integrity. The EXSYS EX-49160 solves this by providing a shielded CAT.5e female-to-female adapter in a D-type panel mount housing, ideal for patch panels, wall plates, and industrial control setups.

Who is it for

This adapter is for network technicians, system integrators, and industrial users who need to extend Ethernet connections or create a pass-through point on a panel or enclosure. It suits environments where a secure, panel-mounted RJ45 connection is required.

Main features

• RJ45 female to RJ45 female coupler for joining two Ethernet cables.
• CAT.5e performance supports up to 1 Gbps data transfer and 100 MHz bandwidth.

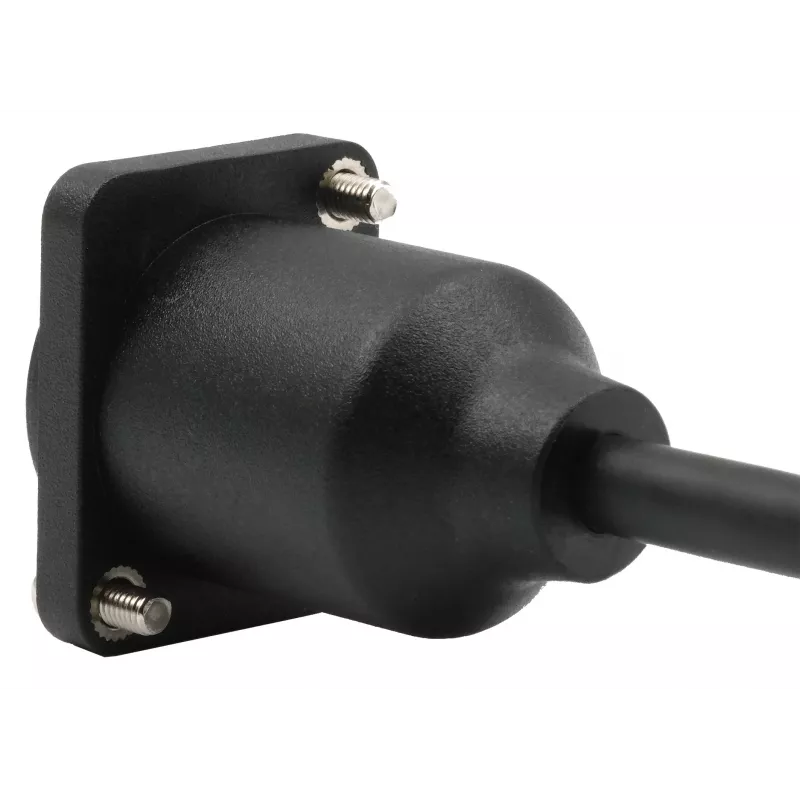

• D-type (XLR-style) metal housing for panel mounting.
• Shielded design reduces electromagnetic interference.
• Gold-plated contacts ensure reliable connectivity.
• 20 cm cable length provides flexibility in installation.

Specifications

• Connector 1: RJ45 female
• Connector 2: RJ45 female
• Cable category: CAT.5e
• Cable length: 20 cm
• Shielding: Shielded (FTP/STP)
• Data transfer rate: Up to 1 Gbps
• Frequency bandwidth: Up to 100 MHz
• Connector plating: Gold-plated contacts
• Housing material: Metal
• Colour: Black
• Impedance: 100 Ohm
• Operating temperature: -20°C to 70°C
• RoHS compliance: Yes

Tips

For best performance, pair with CAT.5e or higher rated cables and ensure proper grounding of the shielded housing to avoid ground loops.
