Conector macho coaxial SMA de crimpado DELOCK para cable LMR200 con tubo termorretráctil

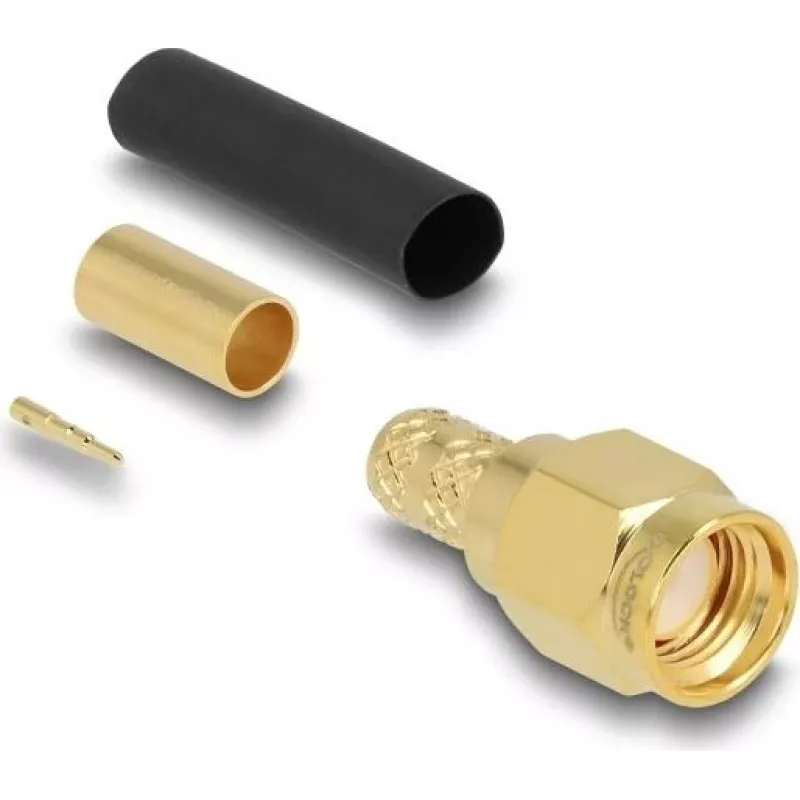

DELOCK SMA crimp-on plug for LMR200 cable with heat-shrink sleeve is a compact coaxial connector designed to terminate LMR200-type RF coaxial cables. The plug is intended to be crimped onto the cable by compressing the outer ferrule onto the braid and securing the centre conductor pin, creating a mechanically stable and electrically reliable SMA connection suitable for radio, antenna and general RF applications.

Advantages

The connector offers a compact SMA form factor that maintains consistent impedance and low signal loss when properly installed. The crimp termination provides secure mechanical retention and reliable electrical contact with the cable braid and centre conductor. A heat-shrink sleeve is included to provide additional strain relief, environmental protection and improved mechanical stability at the cable-to-connector transition.

Key specifications

How to use

Prepare the LMR200 cable by stripping the outer jacket, exposing the braid and centre conductor to the dimensions recommended for this connector type. Slide the supplied heat-shrink sleeve and the crimp ferrule onto the cable before assembling the connector body. Insert the centre conductor into the pin and position the braid over the connector body as specified, then crimp the ferrule with an appropriate crimp tool to secure the braid. If required by this specific variant, solder or properly secure the centre pin according to standard SMA assembly practice. Finally, slide the heat-shrink sleeve over the joint and apply heat to form a tight protective layer that provides strain relief.

Recommendations for use

Use calibrated crimp tools designed for LMR200 ferrules and verify electrical continuity and impedance with suitable test equipment after assembly. Follow ESD precautions and ensure the centre conductor and braid are correctly positioned before crimping to avoid signal degradation. Replace the heat-shrink if it shows signs of damage to maintain mechanical protection.

Keywords naturally included: DELOCK SMA crimp-on plug, LMR200 cable, heat-shrink sleeve, SMA connector, crimp termination, RF connector, antenna connection.
