Conector macho Ethernet Lapp ED-IE-AXS-6A-B-20-FC 21700653, adaptador RJ45 montaje en campo, apantallado

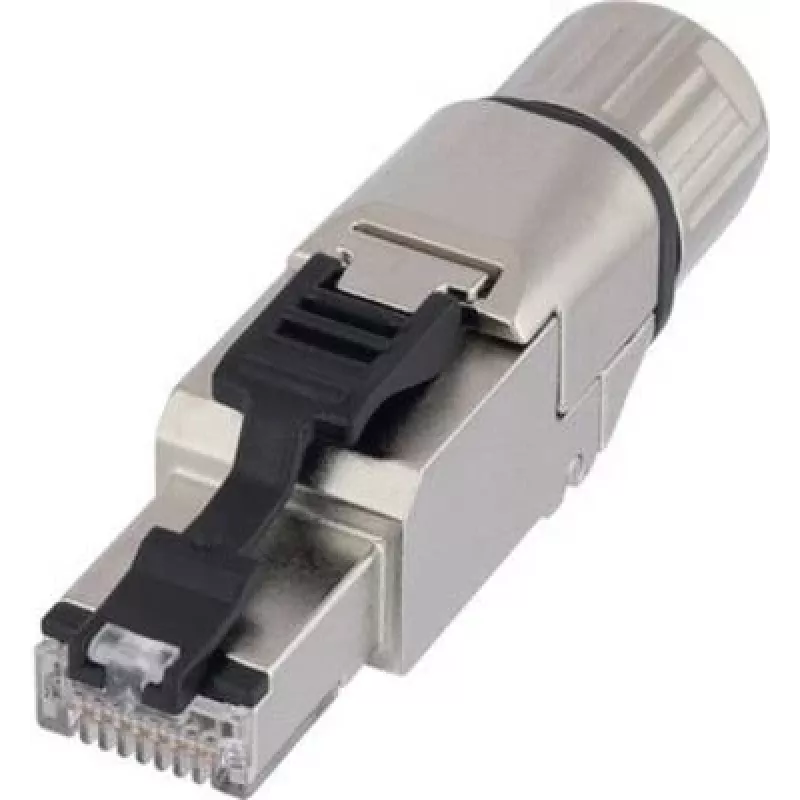

Lapp ED-IE-AXS-6A-B-20-FC (21700653) is a shielded, field-assembly RJ45 Ethernet connector designed for on-site termination of network cables. The adapter supports category-compatible cabling and provides mechanical protection and EMI shielding for industrial and commercial Ethernet installations.

Advantages

The shielded construction reduces electromagnetic interference and improves signal integrity. Field-assembly design allows cable termination without factory pre-assembled plugs, enabling flexible installation and repair on site. The adapter is compatible with standard RJ45 terminations and offers robust mechanical protection for the cable end.

Suitable for

Key specifications

How to use

Prepare the cable by stripping the outer jacket and arranging the conductors according to the required wiring standard. Insert the conductors into the adapter contacts following the product-specific wiring guide, then secure the shield and housing per the manufacturer's assembly steps. Use the built-in features or supplied parts to tighten and lock the connector to the cable for a stable mechanical and electrical connection.

Recommendations

Use with shielded twisted-pair cables and follow Lapp's wiring and assembly instructions to ensure correct shielding continuity. Verify category compatibility for desired data rates and perform a post-assembly cable test to confirm signal integrity.
