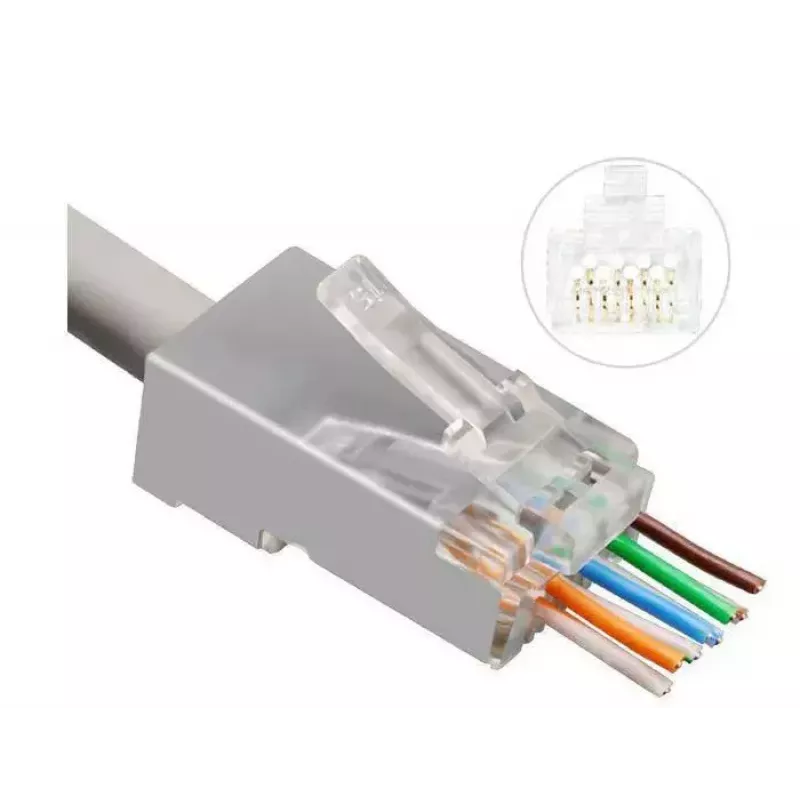

Microconnect KON506-50EZ conector de cable RJ45 plateado

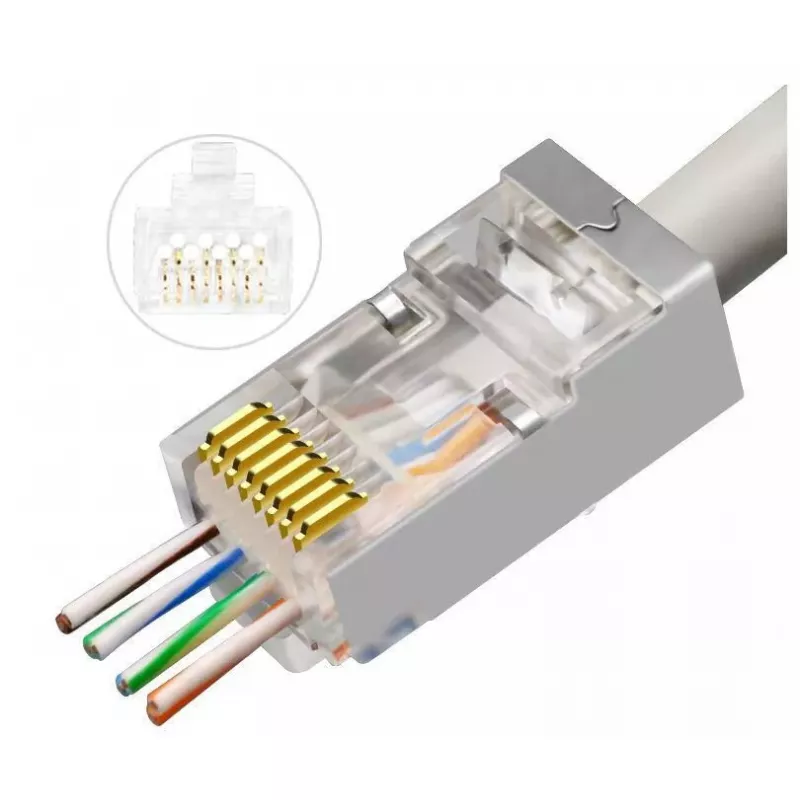

The Microconnect KON506-50EZ is a compact silver male RJ45 wire connector designed for CAT6 twisted-pair terminations. Its Easy-Connect design lets individual conductors be inserted through the connector and out the front, enabling quick visual verification of correct wiring. The connector is pulled down over the cable jacket and seated tightly at the rear to reduce the distance between wire twists and contacts and to optimize electrical performance.

Advantages

The Easy-Connect RJ45 CAT6 mechanism simplifies termination and inspection by allowing wires to extend through the connector for visual check. Pulling the connector over the cable jacket ensures a secure seating at the rear, minimizing untwisted conductor length and improving signal performance. The compact silver design provides reliable mechanical fit and is suited to space-constrained installations.

Suitable for

• CAT6 network cable terminations
• Patch panel and outlet wiring
• On-site network repairs and installations

Key specifications

• Model: Microconnect KON506-50EZ
• Connector type: Male RJ45
• Color: Silver
• Weight: 0.05 kg
• Package size: 199 mm x 175 mm x 29 mm
• EAN: 5706998943828

How to use

Strip the outer jacket of the CAT6 cable to expose the twisted pairs and arrange wires in the required pinout. Insert each conductor through the connector so the wires protrude from the front, verify the wiring order visually, then seat the connector by pulling it down over the cable jacket until it fits tightly at the rear. Terminate according to standard RJ45 crimping or insertion procedure for the chosen termination tool.

Recommendations

Use appropriate cable preparation tools to avoid nicking conductors. Verify the pinout before final crimping and test the terminated link with a network tester to confirm continuity and performance.
