Conector macho RJ45 DeLOCK, montaje en campo Cat.6A con prensaestopas y tapa antipolvo

The DeLOCK RJ45 plug field-assembly Cat.6A is a tool-free, field-assembly RJ45 male connector designed for Ethernet network cables. The silver-coloured plug measures approximately 14.2 mm (W) x 56.2 mm (D) x 12.5 mm (H) and is suitable for Cat.6A installations where quick assembly and reliable protection of the cable end are required.

Advantages

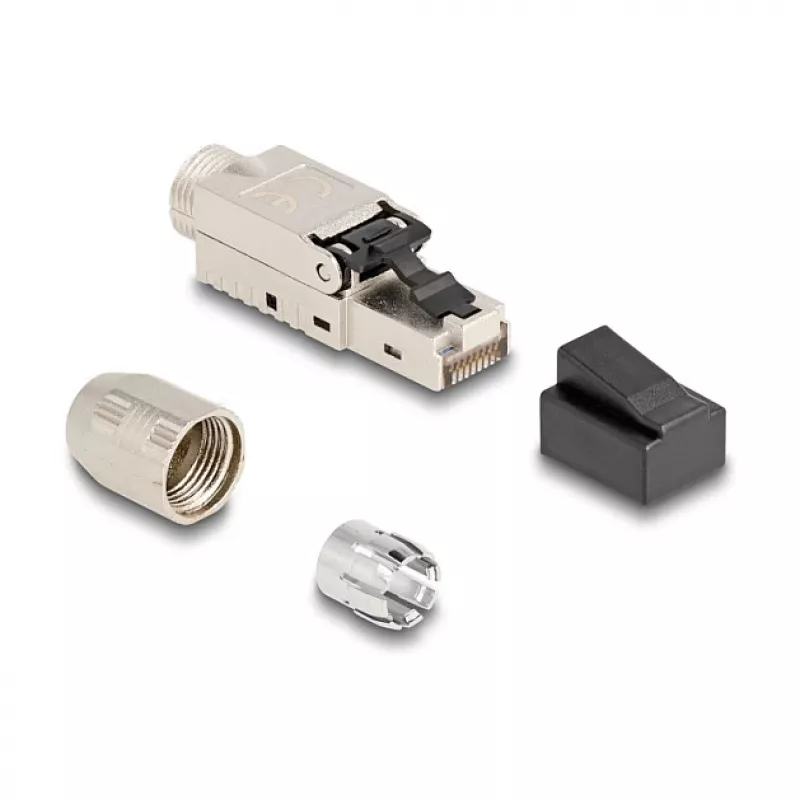

This RJ45 plug allows fast, tool-free installation directly onto network cable ends, reducing setup time on site. It includes a cable gland to protect the cable from abrasion and tensile stress and a dust cover to keep the RJ45 port free from dirt when not in use. The metal-coloured housing provides a robust appearance and supports standard RJ45 connectivity for Cat.6A performance.

Suitable for

Key specifications

How to use

Prepare the cable by stripping the outer jacket and arranging the twisted pairs according to the required wiring standard. Insert the prepared cable into the plug body until the conductors engage with the contact points. Secure the cable gland over the jacket and tighten it by hand to provide strain relief; no special tools are required. Fit the dust cover over the plug when the connector is not inserted into a port to protect against dirt.

Recommendations

Use this plug with Cat.6A-rated cables and verify pair wiring before final insertion. Avoid excessive bending or tension at the termination point and replace the dust cover when the connector is idle to maintain port cleanliness.
