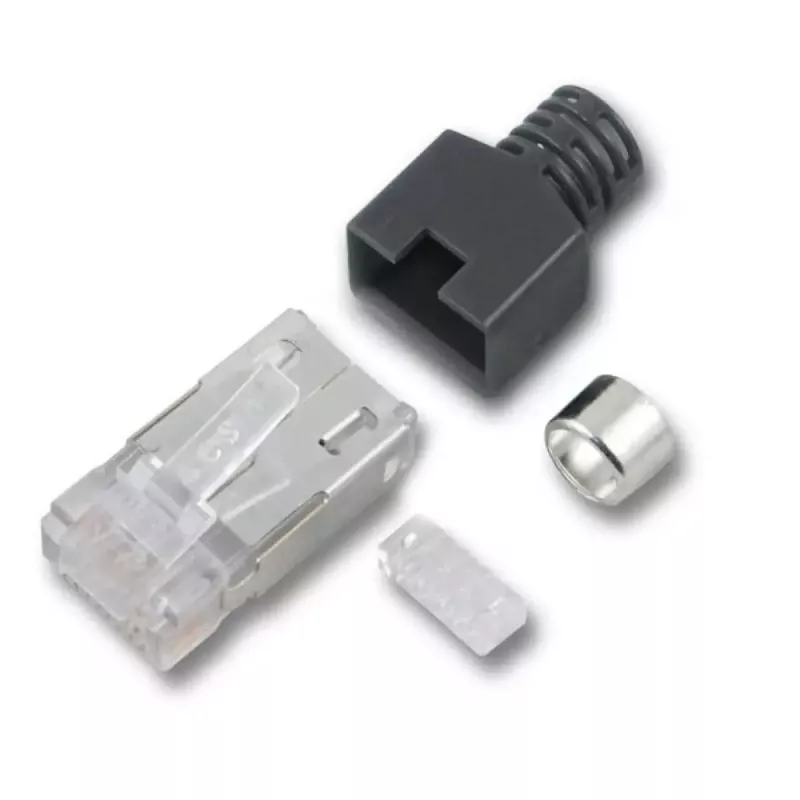

Conector macho RJ45 EFB Elektronik H7515.12-50

The EFB Elektronik H7515.12-50 wire connector RJ45 is a male network plug designed for creating reliable Ethernet terminations. Offered in black and white and supplied in a pack of 50 pieces, this connector is intended for professional and DIY network cabling tasks where consistent contact and durable mechanical construction are required.

Advantages

This RJ45 connector provides consistent electrical contact and mechanical stability suitable for repeated insertions. Manufactured with materials that resist wear and maintain shape under normal installation conditions, the connector supports stable network performance. The availability in two colours helps with visual organisation of cabling runs, and the 50-piece pack is convenient for larger projects, reducing the need for frequent reordering.

Suitable for

• Installing Ethernet cables in offices, server rooms, and homes
• Bulk network cabling projects and structured cabling installations
• Replacement of damaged RJ45 plugs on patch cords and custom-length cables
• Low- to medium-volume manufacturing or assembly of network cables

Key specifications

• Connector type: 8P8C (RJ45) male modular plug
• Colour options: black and white
• Package quantity: 50 pieces
• Suitable for common Ethernet cable types (e.g., Cat5e, Cat6, depending on cable outer diameter and conductor arrangement)
• Mechanical design optimised for secure wire retention and plug stability

How to use

Strip the cable jacket and arrange the conductors according to the desired wiring standard (T568A or T568B). Insert the conductors fully into the RJ45 connector so each wire reaches its contact slot. Use an appropriate crimping tool or insertion tool designed for modular plugs to crimp the connector onto the cable, ensuring the strain relief and contacts engage correctly. After crimping, visually inspect the termination to confirm all conductors are seated and make a continuity test with a cable tester to verify correct wiring and contact integrity.

Recommendations

For best results, select the connector size and type that match the cable diameter and conductor arrangement. Use a quality crimping tool compatible with RJ45 8P8C plugs and perform testing after assembly to ensure network reliability. Store unused connectors in a dry environment away from extreme temperatures to preserve material properties.
