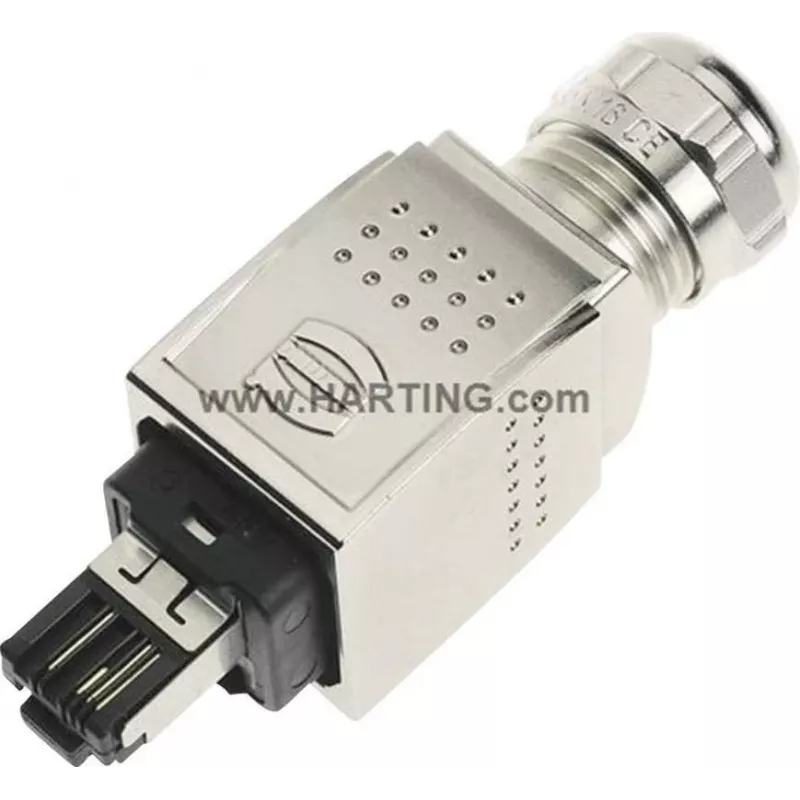

Conector macho RJ45 Harting Han PushPull 09 35 226 0401 recto, 4 polos, inserto empotrable

Harting RJ45 Han PushPull connector model 09 35 226 0401 is a straight, 4‑pole panel‑mount insert engineered for industrial Ethernet installations. The insert integrates a PushPull quick‑release mechanism for secure mating and simple disengagement during maintenance. Built for shielded Ethernet use, it supports reliable signal transmission, reduces downtime with fast mating operations and enables compact, space‑efficient panel integration in control cabinets and equipment housings.

Advantages

The panel‑mount insert provides a PushPull locking system that ensures positive retention and tool‑free release, simplifying cable changes and service in confined spaces. Its straight RJ45 interface accepts shielded Ethernet plugs, preserving cable screening continuity for improved EMC performance. The compact form factor and robust housing materials deliver mechanical stability and resistance to typical industrial stresses, allowing dependable operation in control panels and machinery.

Suitable for

• Industrial Ethernet connections in control cabinets and switchgear
• Shielded data transmission where EMC performance is required
• Machine tool and automation equipment panel installations
• Environments requiring quick replacement and maintenance of network links

Key specifications

• Connector orientation: straight
• Contact count: 4 poles (RJ45 interface)
• Mounting type: panel‑mount insert
• Locking mechanism: PushPull quick‑release
• Cable compatibility: shielded Ethernet plugs (RJ45)
• Mechanical design: compact, panel‑integrated housing suitable for industrial enclosures

How to use

Install the panel‑mount insert into the prepared cutout of the equipment front panel and secure it according to the panel thickness and mounting instructions from the equipment designer. Connect the mating shielded RJ45 plug until the PushPull mechanism engages; verify the positive lock by a light pull to confirm retention. To disconnect, press and hold the PushPull release sleeve and withdraw the plug smoothly. Maintain proper cable shielding continuity by using compatible shielded plugs and ensuring correct panel grounding.

Recommendations

For reliable performance, use shielded RJ45 cables and ensure the connector body is properly grounded to maintain EMC protection. Avoid excessive mechanical stress on the mating interface and follow regular inspection routines to check for contamination or wear that could affect contact integrity.
