Conector macho RJ45 Televes CAT6AS-F 209924 — conector macho RJ45 para cables blindados CAT6A

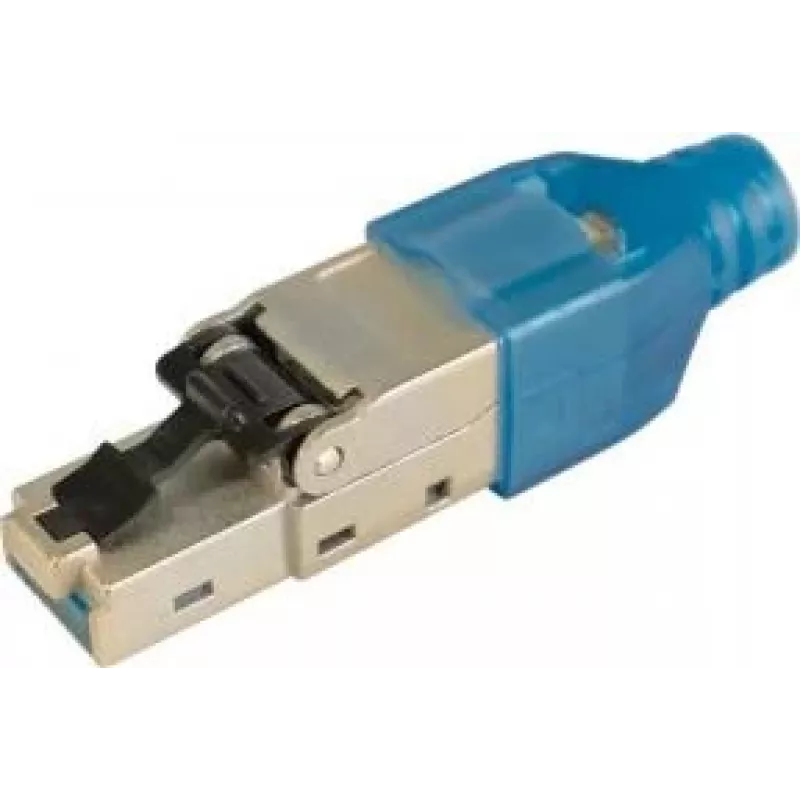

Televes RJ45 Connector CAT6AS-F is a shielded RJ45 plug designed for terminating CAT6A network cables. It provides a compact, metallic-housing connector that maintains electrical shielding continuity between cable and connector, supporting high-speed Ethernet installations and minimizing electromagnetic interference. The connector is intended for use in structured cabling where durable, low-loss terminations are required.

Advantages

The shielded construction ensures improved protection against crosstalk and external interference compared with unshielded plugs. Its mechanical design allows reliable contact with individual conductor pairs and consistent insertion into standard RJ45 jacks. The plug is suitable for repeated mating cycles and contributes to long-term connection stability in LAN and data center environments.

Suitable for

• Termination of CAT6A shielded twisted-pair network cables
• Professional LAN installations and patch panels
• Data centers and server room cabling
• Structured cabling projects requiring shield continuity

Key specifications

• Connector type: shielded RJ45 plug compatible with CAT6A cable
• Shielding: metallic housing to maintain cable foil/braid continuity
• Contact arrangement: 8-position, 8-contact (8P8C)
• Rated for high-speed Ethernet up to CAT6A performance levels
• Mechanical durability suitable for multiple insertion/removal cycles

How to use

Prepare the CAT6A shielded cable by stripping the outer jacket and exposing the foil or braid shield as specified by the cable manufacturer. Align and insert individual conductor pairs into the plug following the chosen wiring standard (T568A or T568B), ensuring the shield is folded back and makes contact with the plug body to preserve grounding continuity. Terminate the plug using the appropriate crimping or insertion tool recommended for shielded RJ45 connectors. Verify the termination with a cable tester to confirm pair continuity and correct wiring before installation.

Recommendations

Use the connector with properly prepared CAT6A shielded cables and a compatible crimping tool to ensure reliable electrical shielding and mechanical retention. Maintain proper grounding of the cable shield at patch panels or outlets to realize the benefits of the shielded connector in environments with potential electromagnetic interference.
