Conector macho SMB para crimpar RG-174 / RG-316 DeLOCK 90040

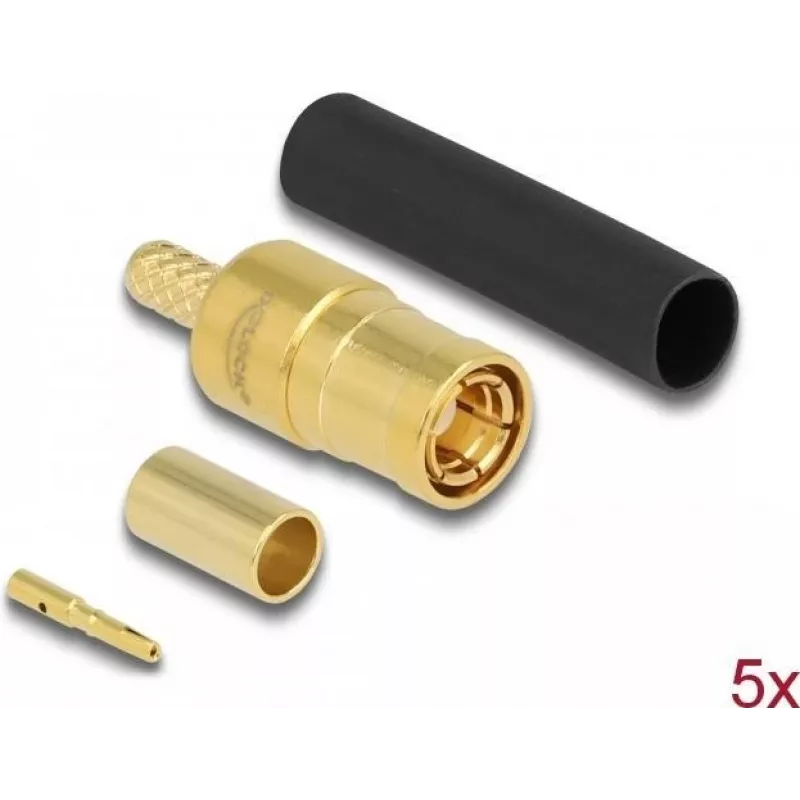

The DeLOCK SMB plug for crimping RG-174 and RG-316 cables is a male radio frequency connector supplied in packs of five. It measures 7 mm in width, 18.2 mm in depth and 7 mm in height. A matching shrink tube is included to protect and finish the cable termination, making it suitable for creating reliable RF connections in small coaxial installations.

Advantages

The connector is compatible with both RG-174 and RG-316 cable types and is supplied with a shrink tube for improved strain relief and insulation. Its compact dimensions allow use in tight spaces, and the crimp design enables consistent mechanical and electrical contact when installed correctly. Supplied as a pack of five to cover multiple terminations.

Suitable for

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid and dielectric to the lengths recommended for SMB crimp fittings. Slide the supplied shrink tube onto the cable before fitting. Insert the prepared cable into the SMB plug and perform the crimping operation with the appropriate crimp tool for the connector and cable size. After crimping, position the shrink tube over the termination and apply heat to shrink it, ensuring insulation and strain relief.

Recommendations

Use a correctly sized crimp tool and follow manufacturer strip/crimp dimensions for RG-174 and RG-316 to ensure reliable electrical contact. Apply heat evenly to the shrink tube and avoid excessive force on the terminated connector during installation.
