Conector macho SUB-D 90° Harting 9 pines soldar, MPN 09 65 162 6812-1

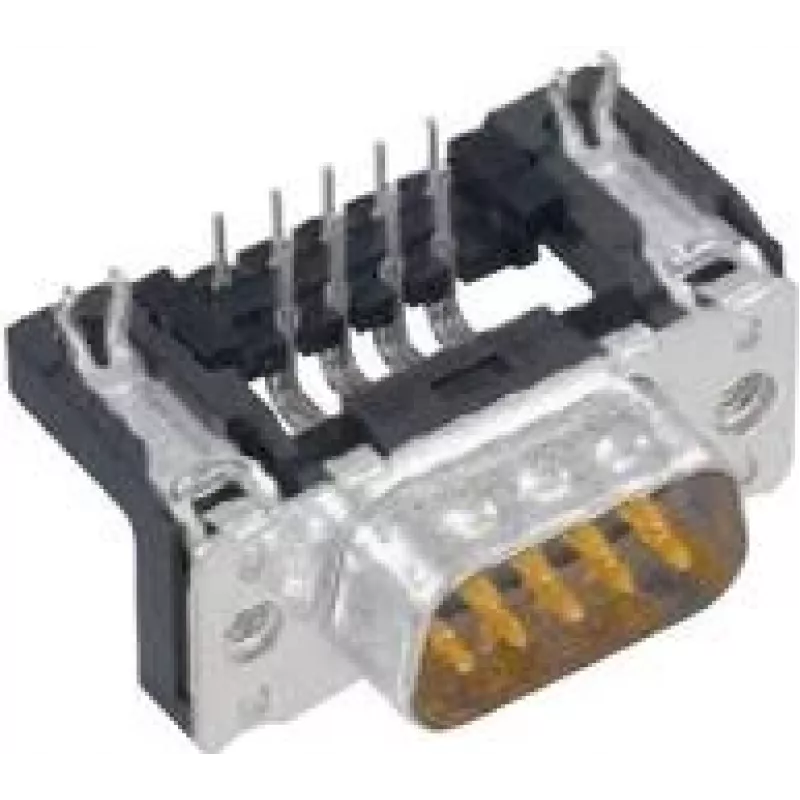

Harting 09 65 162 6812-1 is a male SUB-D (D‑sub) connector with a 90° right-angle housing and nine solder-type contacts. It provides a compact, standard 9‑pin layout suitable for serial and control-signal connections in electronic and industrial equipment, and is intended for assemblies requiring soldered terminations or angled mounting on PCBs or cable harnesses.

Advantages

The connector features a right-angle orientation that saves board space and eases cable routing. The solder-type pins offer reliable electrical contact and durable mechanical attachment when properly soldered. The standard 9‑pin D‑sub layout ensures compatibility with common serial interfaces and control circuitry.

Suitable for

• Serial communication interfaces (RS-232/RS-422 style applications)
• Control signal connections in industrial equipment
• PCB assemblies requiring an angled D‑sub termination
• Cable harnesses where soldered pin terminations are preferred

Key specifications

• Manufacturer: Harting
• MPN: 09 65 162 6812-1
• EAN: 2050001836526
• Connector type: Male SUB-D (D‑sub), 9‑pin
• Orientation: 90° (right-angle)
• Contact termination: Solder
• Quantity: 1 piece

How to use

Mount the connector to the PCB or position it within the cable assembly so the 90° orientation matches the required cable exit direction. Solder each pin to the corresponding pad or wire following standard soldering practices and the board manufacturer’s instructions. Verify pin numbering and wiring before powering the system to avoid misconnection. Use appropriate strain relief or mounting hardware where necessary to reduce mechanical stress on solder joints.

Recommendations

Use suitable soldering temperature and flux for reliable joints, inspect solder joints for cold or bridging faults, and apply mechanical strain relief for long-term reliability in industrial environments.
