Conector hembra SMB para crimpar RG-174 / RG-316 DeLOCK 90041

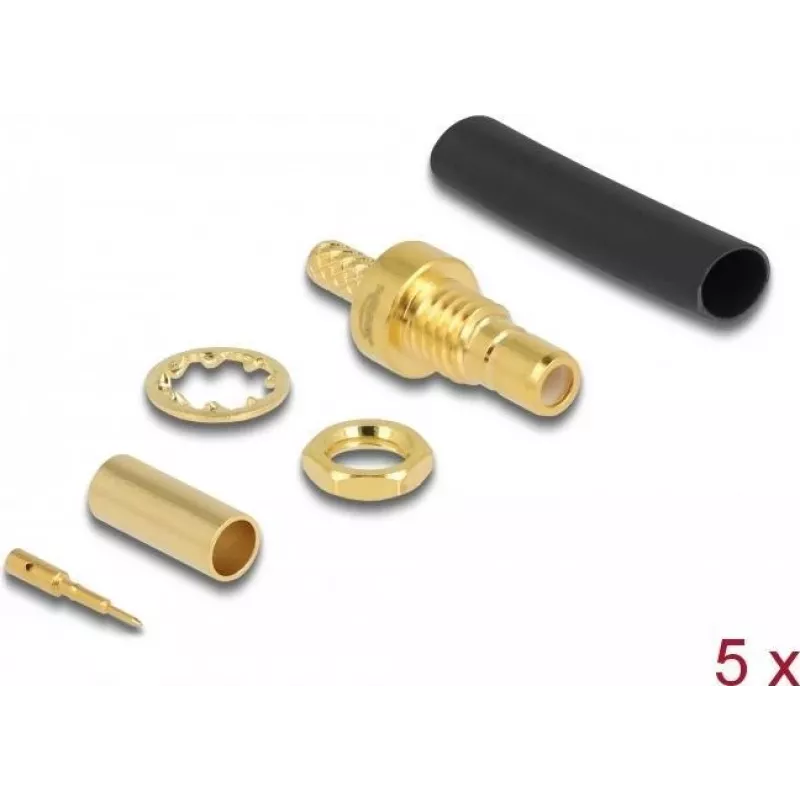

The DeLOCK SMB jack is a male 50 Ω connector designed for crimping onto RG-174 and RG-316 coaxial cables. Supplied in packs of five with matching shrink tube, it provides a compact, industry-standard interface for radio frequency and telecommunications applications.

Advantages

The connector set includes five SMB jacks and shrink tubes for a neat, protected finish. Its 50 Ω impedance and compatibility with RG-174 and RG-316 ensure reliable signal transmission. Crimp-style assembly enables fast installation and secure mechanical and electrical contact.

Suitable for

Key specifications

How to use

Strip the RG-174 or RG-316 cable to the recommended dimensions for SMB crimp connectors, insert the conductor and dielectric into the connector body, slide the ferrule into position and crimp with the appropriate tool. After crimping, apply the provided shrink tube over the joint and heat until it contracts to provide mechanical protection and strain relief.

Recommendations

Use a crimp tool and ferrule sized for RG-174/RG-316 to ensure a reliable electrical and mechanical connection; verify impedance continuity with appropriate test equipment after assembly.
