Conector macho TNC para crimpar RG-174/RG-316 DeLOCK 90015

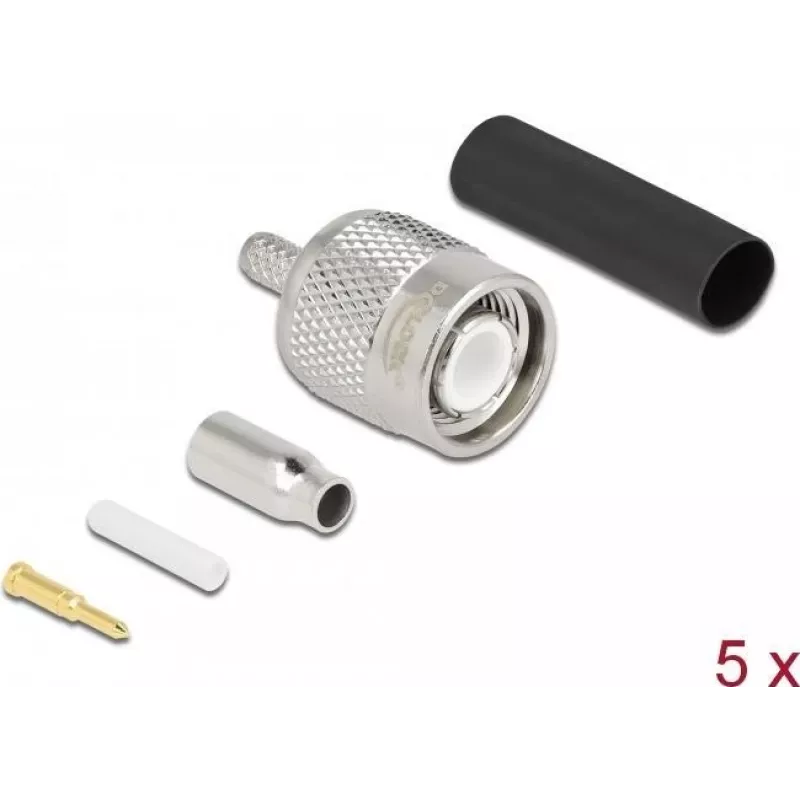

The DeLOCK TNC plug for crimping is intended for use with RG-174 and RG-316 coaxial cables. It provides a 50 Ω impedance and comes with a matching shrink tube. The connector has nickel-plated contacts and compact dimensions (14.4 mm × 23.8 mm × 14.4 mm). Each pack contains five connectors, suitable for assembly and repair of RF cabling systems.

Advantages

Nickel-plated contacts ensure corrosion resistance and stable signal transmission. The included shrink tube offers strain relief and additional insulation for the crimped connection. Compact size makes the connector suitable for installations with limited space. A pack of five provides multiple spare connectors for small projects or maintenance.

Suitable for

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid, and dielectric according to the connector manufacturer's crimping instructions. Insert the prepared cable into the TNC plug so the centre conductor contacts the pin and the braid contacts the body. Fit the crimp ferrule and secure it using an appropriate crimping tool. Apply the shrink tube over the joint and heat it to create a protective sleeve. Verify continuity and impedance after assembly.

Recommendations

Use a compatible crimping tool sized for the connector and cable type to ensure reliable mechanical and electrical contact. Avoid excessive heating of the shrink tube and connector during assembly. Test assembled connectors with suitable RF test equipment to confirm proper 50 Ω performance.
