Conector RJ45 Cat.8.1 montable en campo LogiLink MP0085, apantallado, extra corto

Supporting 25/40 Gigabit Ethernet and frequencies up to 2000 MHz, this field-assembly RJ45 plug delivers Category 8.1 performance in an extra-short, tool-free design.

Overview

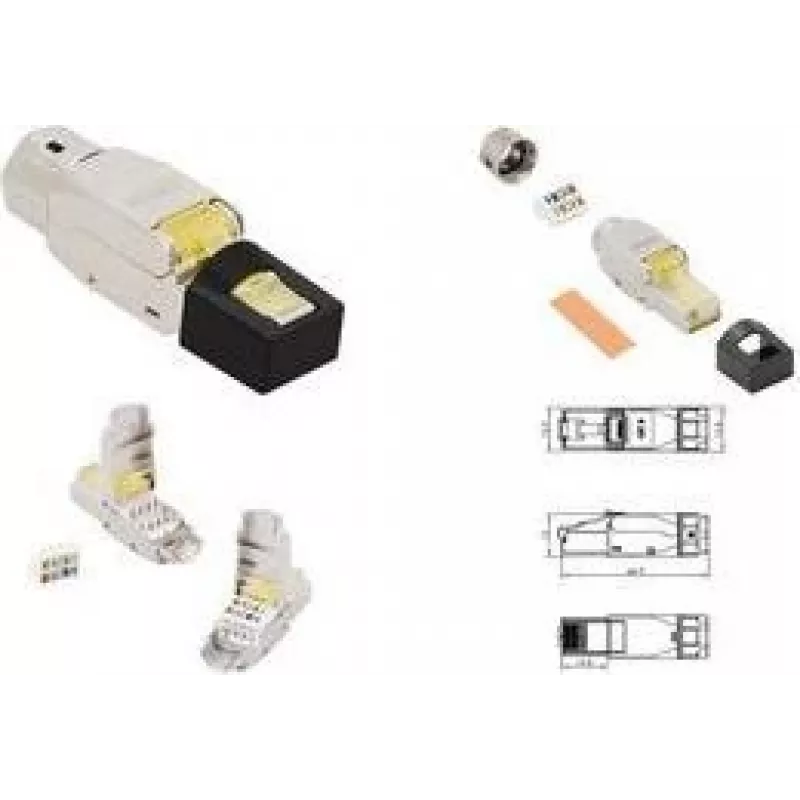

The LogiLink MP0085 is a shielded RJ45 connector engineered for high-speed networking, compatible with Cat.6A, Cat.7, and Cat.8 cables. Its compact, extra-short housing fits tight spaces, while the die-cast zinc body ensures durability. The plug supports solid and stranded conductors from AWG26/7 to AWG22/1, with a cable diameter range of 5.0 to 9.0 mm. Gold-plated contacts (50µ") guarantee reliable signal integrity, and the connector is reusable up to five times.

What stands out

• Tool-free field assembly for quick, on-site termination
• Extra-short design ideal for high-density patch panels and confined areas
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for power delivery
• Robust die-cast zinc housing with nickel plating for long-term reliability
• Wide operating temperature range from -40°C to +85°C

Technical details

• Connector type: RJ45 plug, shielded (STP/FTP)
• Category: Cat.8.1 (Class I), backward compatible with Cat.6A and Cat.7
• Data rate: 25/40 Gigabit Ethernet (25GBASE-T / 40GBASE-T)
• Transmission frequency: up to 2000 MHz
• Conductor compatibility: solid and stranded wire, AWG26/7 to AWG22/1
• Contact plating: gold, 50µ"
• Housing material: die-cast zinc, nickel-plated
• Mating cycles: ≥ 750
• Reusability: up to 5 times
• Standards: ISO/IEC 11801-1, EN 50173-1, TIA-568-C.2, IEC 60603-7-81

Our verdict

A professional-grade connector that combines Cat.8.1 speed with tool-free convenience, perfect for demanding network installations.
