Conmutador de vídeo ATEN VS0202 VGA

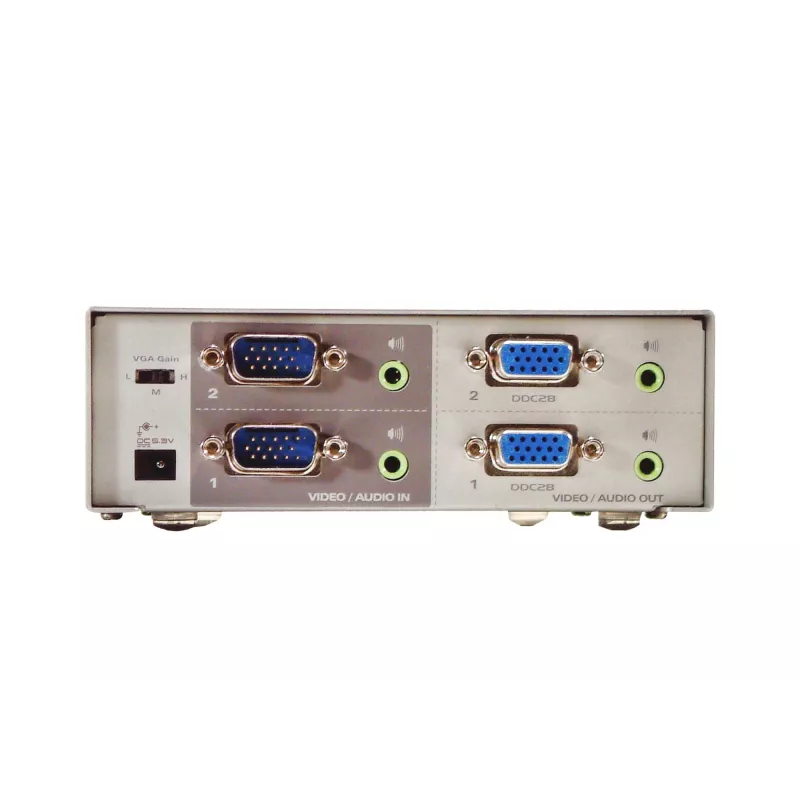

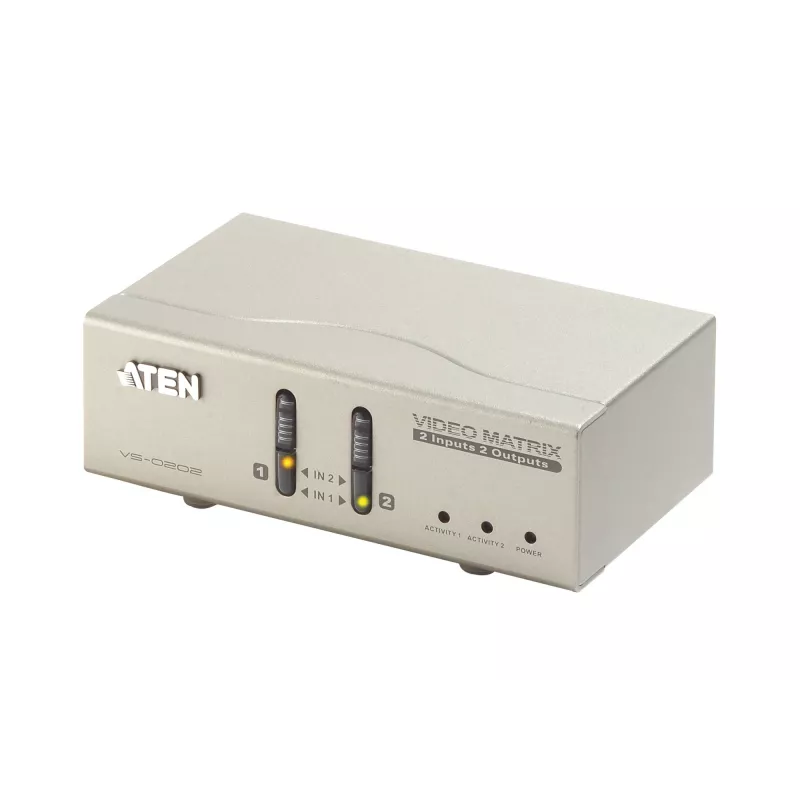

The ATEN VS0202 Video Switch VGA is a compact metal device that lets two VGA sources be routed to two VGA displays and audio outputs. It provides 2 x HDB-15 male inputs and 2 x HDB-15 female outputs for standard VGA connections, operates effectively up to 30 metres, and includes VGA cables for immediate setup. The unit’s silver finish and small footprint (130 mm × 76.1 mm × 44 mm) make it easy to install in meeting rooms, classrooms or AV racks while maintaining low power consumption (approximately 2.39 W).

Advantages

The switch offers straightforward source switching between two computers and two displays, durable metal construction for stable operation, and plug-and-play compatibility with standard VGA equipment. Its compact size and included VGA cables simplify installation, and the low power draw reduces operational cost.

Suitable for

• Conference rooms for presentation switching
• Classrooms and lecture halls
• Small control rooms and AV setups
• Temporary event installations or portable demo stations

Key specifications

• Video port type: VGA (HDB-15)
• Inputs: 2 x HDB-15 Male
• Outputs: 2 x HDB-15 Female
• Operating distance: up to 30 m
• Power consumption: ~2.39 W
• Dimensions: 130 mm (W) × 76.1 mm (D) × 44 mm (H)
• Weight: 0.47 kg
• Colour: Silver
• Includes: VGA cables

How to use

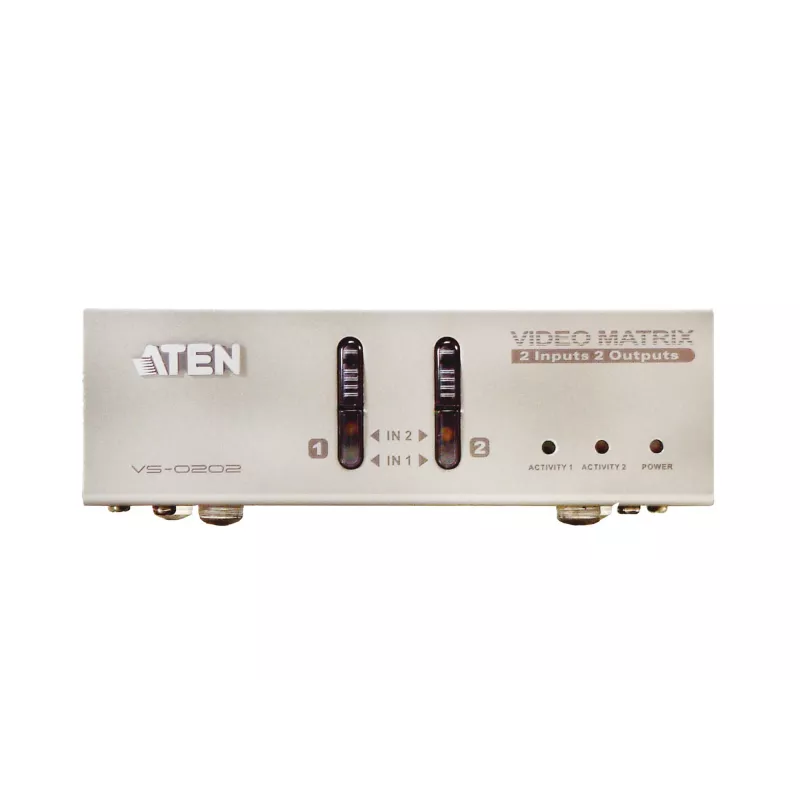

Connect up to two VGA source devices to the HDB-15 input ports and connect up to two VGA displays to the HDB-15 output ports. Power the unit and use the front-panel controls or switching method provided to select which source is routed to each display. Verify signal quality and adjust monitor settings as needed. No additional drivers are required for basic VGA signal routing.

Recommendations

For reliable signal transmission keep VGA cable lengths within the specified operating distance (up to 30 m) and use shielded VGA cables in electrically noisy environments. Place the switch in a well-ventilated area and secure connections to prevent accidental disconnects during presentations.
