Conmutador gestionado PLANET LRP-822CS

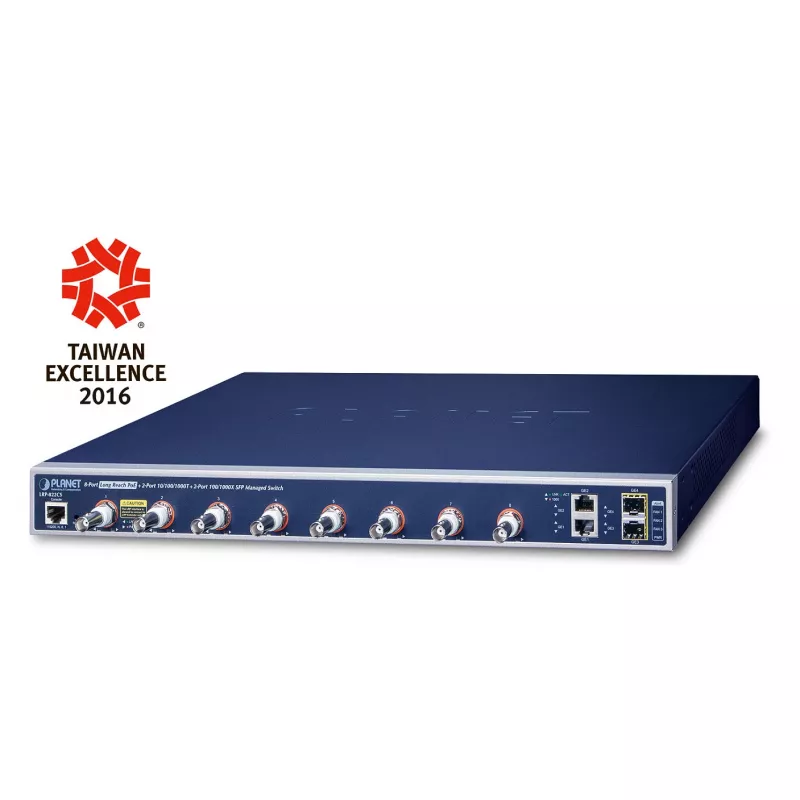

PLANET LRP-822CS is a managed Gigabit Long Reach PoE switch designed to extend Ethernet and PoE over existing coaxial cable infrastructure to remote IP devices. It provides 8 BNC Long Reach PoE injector ports, 2 Gigabit RJ-45 ports and 2 SFP slots, supports IPv4/IPv6 dual stack and a Layer 2/4 Gigabit switching engine. Each BNC port can deliver up to 36 W, with a total PoE budget of 240 W, enabling centralized power delivery and long-distance deployment of PoE cameras, access points and access control devices.

Advantages

The LRP-822CS converts existing coaxial cabling into a long-distance PoE distribution system, supporting data and power transmission up to 1,000 m over coax plus 100 m over Ethernet to the powered device. Centralized 240 W power management reduces the need for local power outlets at remote sites. Built-in PoE management features — PD Alive Check, Scheduled Power Recycling, PoE Schedule and PoE Usage Monitoring — improve device availability and make administration more efficient. Additional benefits include IPv6/IPv4 dual-stack support, robust Layer 2 features, QoS, advanced security functions and a smart fan design for quiet, reliable operation.

Suitable for

• Upgrading analog CCTV networks to HD IP surveillance using existing coaxial cabling
• Deploying centrally-managed PoE IP cameras across large or remote sites
• Supplying PoE to remote wireless access points and access control systems
• Small to medium enterprise networks requiring managed Layer 2 switching with PoE

Key specifications

• Model: PLANET LRP-822CS (MPN: LRP-822CS, EAN: 4711605281171)
• Ports: 8 BNC Long Reach PoE injector ports, 2 Gigabit RJ-45 ports (10/100/1000), 2 SFP slots
• PoE: 36 W per BNC port, total PoE budget 240 W; supports 802.3af/at PDs via LRP extenders
• Long reach: up to 1,000 m over coaxial cable + 100 m over Ethernet to PD
• Switching capacity: 9.6 Gbit/s; MAC table: 8,000 entries
• Management: Web, CLI (console/Telnet), SNMP, SSH/SSL, SNMP v3
• Layer 2 features: VLAN (802.1Q/Q-in-Q), LACP, MSTP, IGMP/MLD snooping, LLDP
• Security: ACL (L2–L4), 802.1X, Port Security, DHCP Snooping, IP Source Guard, DAI
• Form factor: 1U rack-mountable, metal housing; weight ~3.878 kg; color: blue

How to use

Install the LRP-822CS in a standard 19-inch rack and connect the uplink to your NVR, server or backbone switch via the RJ-45 or SFP ports. Use the 8 BNC ports to connect to PLANET Long Reach PoE Extenders (for example LRP-101CE) over existing coaxial cables; each extender then connects to an IP camera, wireless AP or access control device via Ethernet. Configure IP addressing (IPv4/IPv6), VLANs, PoE schedules and PD Alive Check through the web management interface or via SNMP/CLI. Monitor PoE consumption with the built-in power usage chart and set PoE schedules or scheduled power recycling as needed.

Recommendations

For reliable long-reach operation, use recommended PLANET Long Reach PoE extenders and quality coaxial cables; keep total PoE consumption within the 240 W budget and enable PoE over-temperature protection and PoE schedules to maintain stable operation in high-load or high-temperature environments.
