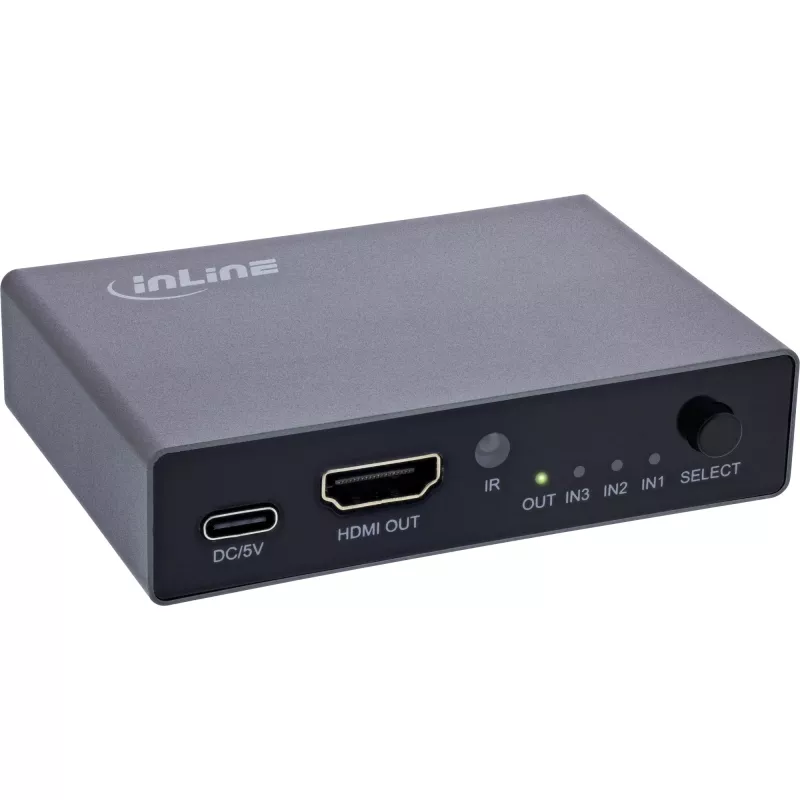

Conmutador HDMI InLine 65020 3 puertos 8K 60Hz HDCP 2.3

The InLine HDMI Switch 65020 3-Port 8K 60Hz HDCP 2.3 enables connection of up to three HDMI sources to a single display. It supports resolutions up to 8K at 60Hz and compliance with HDCP 2.3 for protected content playback. The compact switch is designed for home theater systems, gaming consoles and media players, allowing seamless selection between devices while maintaining signal integrity and image quality.

Advantages

The switch preserves high-resolution video and multichannel audio when routing between connected sources and a display, ensuring consistent picture quality at up to 8K/60Hz. Automatic and manual switching options simplify device selection, and HDCP 2.3 support ensures compatibility with modern protected content. Its slim form factor and straightforward setup reduce clutter and integrate easily into existing AV setups.

Suitable for

• Home theater systems with multiple HDMI sources
• Gaming consoles and PC gaming rigs requiring high-resolution output
• Streaming devices, Blu-ray players and set-top boxes connected to one display
• Small AV installations where switching between sources is needed without a receiver

Key specifications

• Number of HDMI inputs: 3
• Supported maximum resolution: up to 8K at 60Hz
• HDCP support: HDCP 2.3 compliant
• Audio formats: supports multichannel digital audio (pass-through)
• Switching modes: automatic detection and manual selection
• Connectivity: HDMI input and HDMI output ports
• Form factor: compact, low-profile housing

How to use

Connect each HDMI source (for example, a game console, streaming player or Blu-ray) to one of the three HDMI input ports, then connect the HDMI output of the switch to the HDMI input on the display. Power the switch if it requires external power, then use automatic switching or the manual select control to choose the active source. When switching, allow a few seconds for the display and source to negotiate resolution and HDCP handshake before playback.

Recommendations

For reliable 8K/60Hz performance, use high-quality HDMI cables rated for the bandwidth required by 8K signals. Ensure connected sources and the display support the desired resolution and HDCP version. If experiencing handshake or compatibility issues, try power-cycling connected devices and the switch, and verify cable connections.
