Splitter HDMI Equip splitter HDMI de 4 puertos

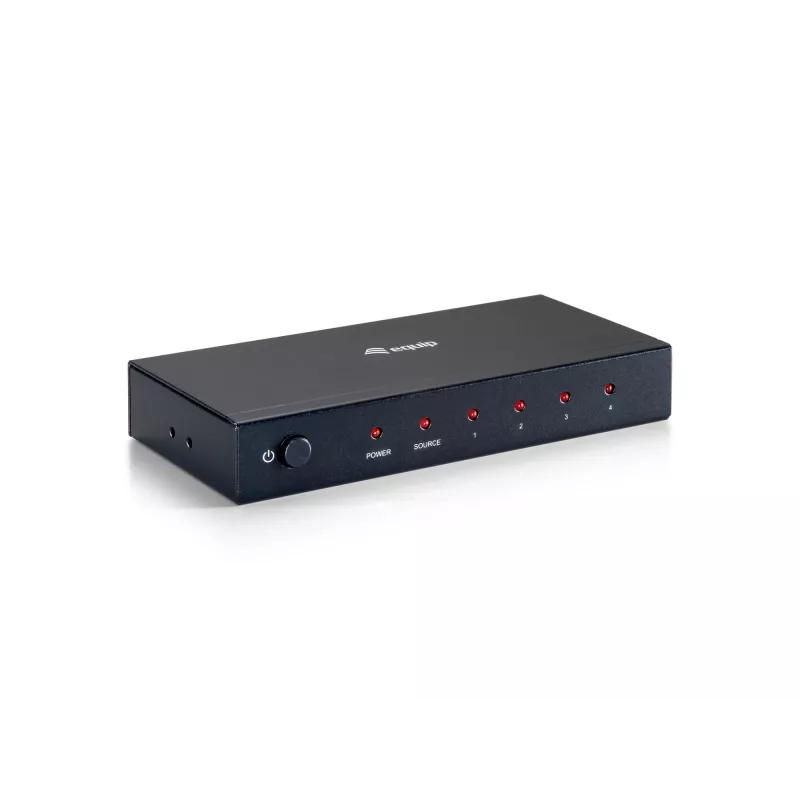

The equip® 4-Port HDMI Splitter distributes a single HDMI video stream to four displays simultaneously, delivering synchronized high-definition video for convention centres, home theatres, retail displays and campus signage. The unit supports a maximum resolution of 1920 x 1080 pixels, comes in a durable black metal housing and is compact and lightweight for easy integration into existing AV setups.

Advantages

The splitter provides four identical HDMI outputs from one source without loss of synchronization. Its metal enclosure offers durability and heat dissipation, while the 5V/1A power input ensures stable operation. The compact dimensions (213 x 150 x 55 mm) and 384 g weight make it simple to install in racks, media cabinets or behind displays.

Suitable for

• Conference rooms and convention centres
• Home theatre systems
• Retail and shop window video displays
• Educational campuses and digital signage

Key specifications

• Brand: EQUIP
• Model / MPN: 332714
• EAN: 4015867161951
• Video port type: HDMI
• Number of HDMI outputs: 4
• Maximum resolution: 1920 x 1080 pixels
• Power input: 5 V DC, 1 A
• Product colour: Black
• Dimensions: 213 x 150 x 55 mm
• Weight: 0.384 kg

How to use

Connect the HDMI source (PC, media player or set-top box) to the splitter input using a standard HDMI cable. Connect up to four displays to the HDMI outputs. Plug the included 5V/1A power adapter into the splitter and a mains outlet. Power on the source and the displays; the splitter will mirror the source signal to all connected screens at up to 1920 x 1080 resolution. If a display does not show an image, check cable seating and ensure the display supports the selected resolution.

Recommendations

Use high-quality HDMI cables for best signal integrity over short to medium lengths. For longer cable runs consider using active HDMI cables or extenders. Ensure all connected displays support 1080p to avoid scaling or compatibility issues.
