Conmutador KVM InLine de 4 puertos DVI-D + USB + audio con 2 sets de cables

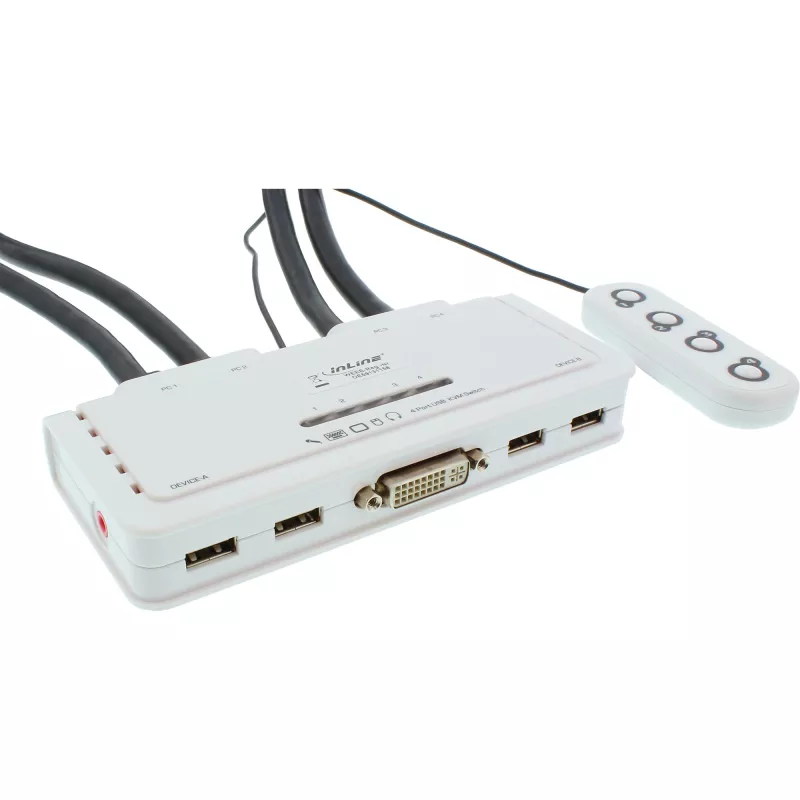

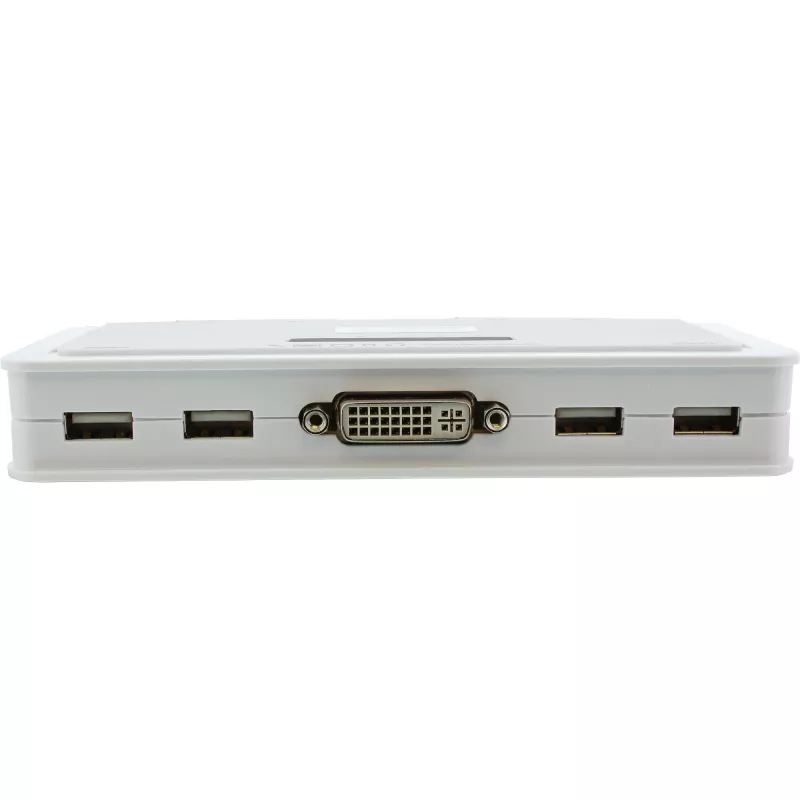

The InLine 4 Port DVI-D USB Audio KVM Switch (model 61614I) is a compact 4-port cable KVM solution that lets you control up to four DVI-D equipped computers using one USB keyboard, USB mouse, single DVI monitor and a speaker/microphone set. The unit includes fixed USB KVM and audio/mic combo cables and supports a maximum resolution of 1920 x 1200 at 60 Hz. LED indicators show the active port and the package includes two 0.9 m cable sets for convenient connection.

Advantages

This KVM switch provides a simple physical installation with fixed cable sets and multiple switching methods: a wired QuickSwitch button, keyboard hotkeys and a software switching client for Windows and Mac. The QuickSwitch button can be placed within easy reach using either a soft magnetic base or a hook-and-loop sticker. The Switching Software displays the active computer in the system tray, lets you change ports and configure hotkeys, enabling efficient control and clear status feedback.

Suitable for

• Multi-PC workstations where one keyboard, mouse and monitor are shared
• Offices and home studios requiring audio and microphone switching between systems
• Environments needing quick manual switching with a desktop QuickSwitch button
• Setups using DVI-D displays with resolutions up to 1920 x 1200 at 60 Hz

Key specifications

• Brand: InLine
• Model: 61614I
• Ports: 4 DVI-D video, USB keyboard/mouse support
• Audio: Speaker and microphone support via combo cables

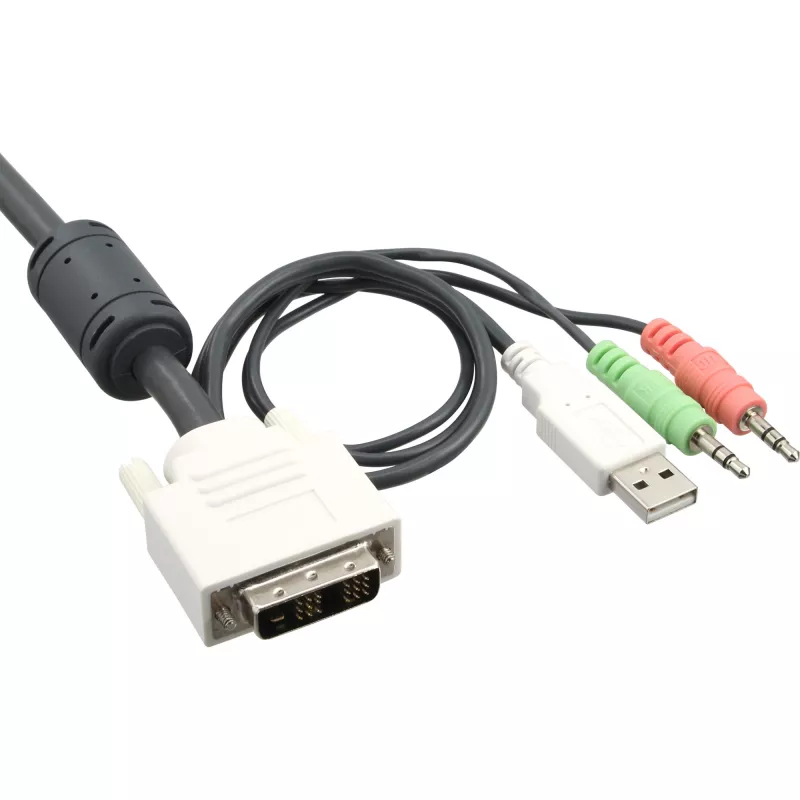

• Included cables: Fixed USB KVM & audio/mic combo cables; two 0.9 m cable sets
• Switching methods: Wired QuickSwitch button, keyboard hotkeys, Switching Software (Windows, Mac)
• Maximum resolution: 1920 x 1200 @ 60 Hz
• Indicators: LED status for each port

How to use

Connect up to four computers to the KVM switch using the included fixed cable sets and attach your USB keyboard, mouse, DVI monitor and audio devices to the KVM. Install the provided Switching Software on each connected Windows or Mac computer if you want on-screen control and hotkey configuration. To change the active computer, press the wired QuickSwitch button, use the configured keyboard hotkeys or select the target PC from the Switching Software tray icon.

Recommendations

The QuickSwitch button is intended to be placed within easy reach; use the magnetic base on metal surfaces or the hook-and-loop sticker for other locations. Install the Switching Software on all connected systems to ensure consistent hotkey behaviour and visible port status in the system tray.
