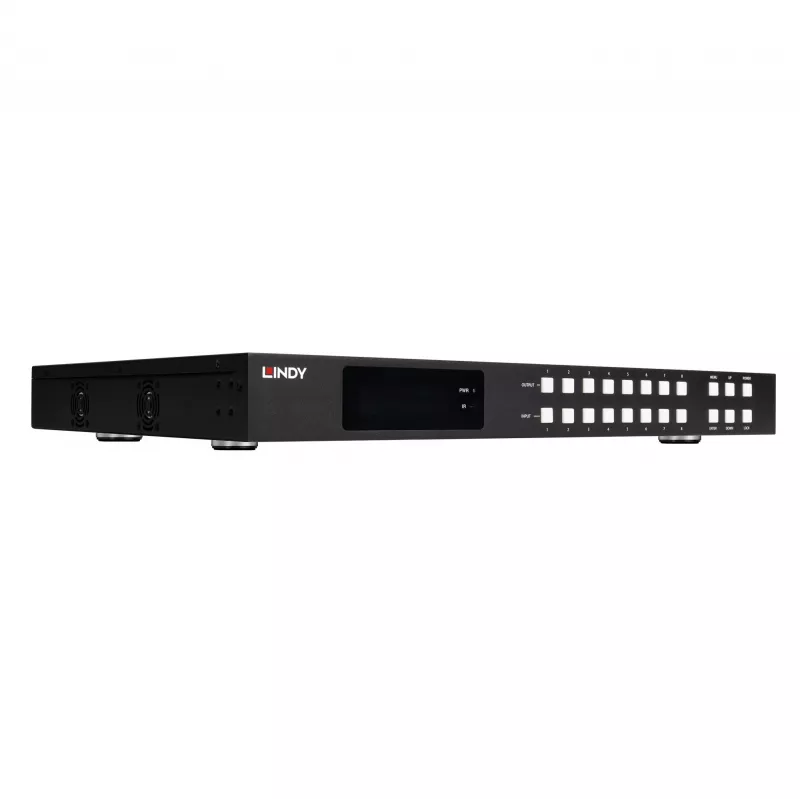

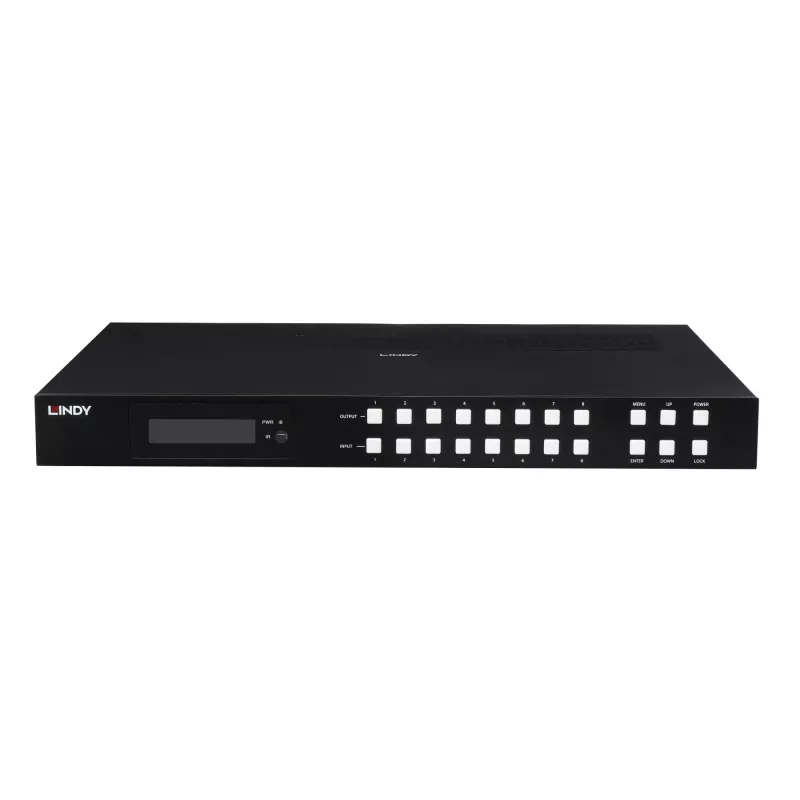

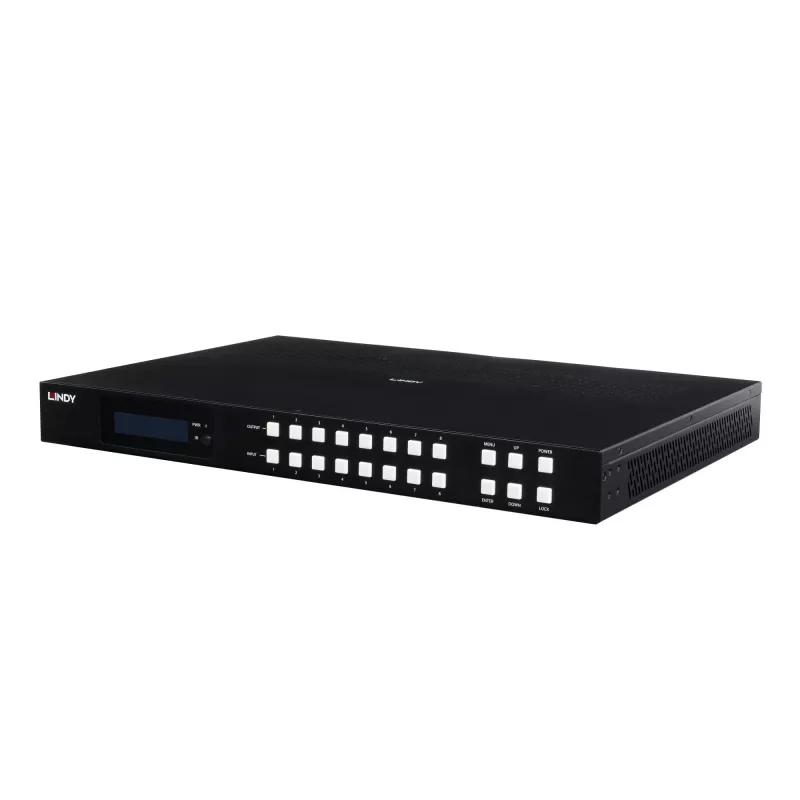

Lindy 38434 matriz HDMI 8x8 4K60 Multi-View sin interrupciones con escalado de videowall

The Lindy 38434 is an 8x8 HDMI 4K60 seamless multi-view matrix that allows switching between 8 HDMI sources and 8 HDMI displays. It supports the creation of video walls with different layouts for up to 8 displays and offers 16 different multiview layouts.

Key features

• Switch between 8 HDMI sources and 8 HDMI displays as a professional matrix
• Create various video walls with different layouts for up to 8 displays
• Seamless switching between devices (< 0.1ms)
• Choose from 16 different multiview layouts
• Multi-View, Video Wall, Seamless Switching

Specifications

• AV interface: HDMI
• Interface standard: HDMI 2.0b
• Supported bandwidth: 18Gbit/s
• Maximum resolution: 3840x2160@60Hz RGB 8bit
• HDCP support: 2.2
• Audio: HDMI audio pass-through up to 7.1 channel; optical up to 5.1 channel; analog L/R
• IR support: 38 kHz
• CEC support: Yes
• Serial interface: RS-232
• LED/LCD display: LCD display
• Control: Push buttons, IR, RS-232, IP
• Inputs: 8 x HDMI (socket)

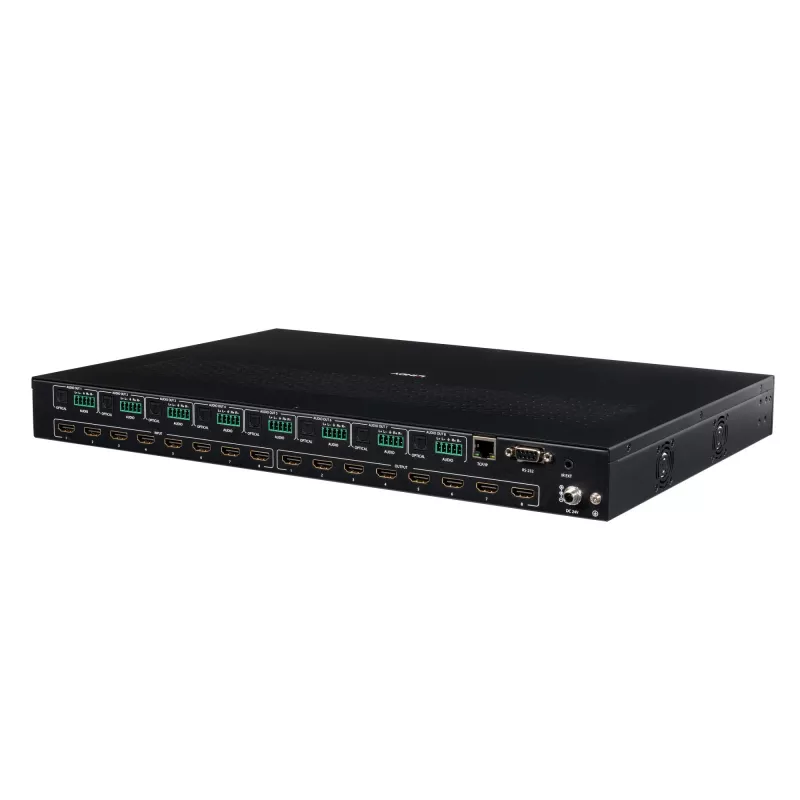

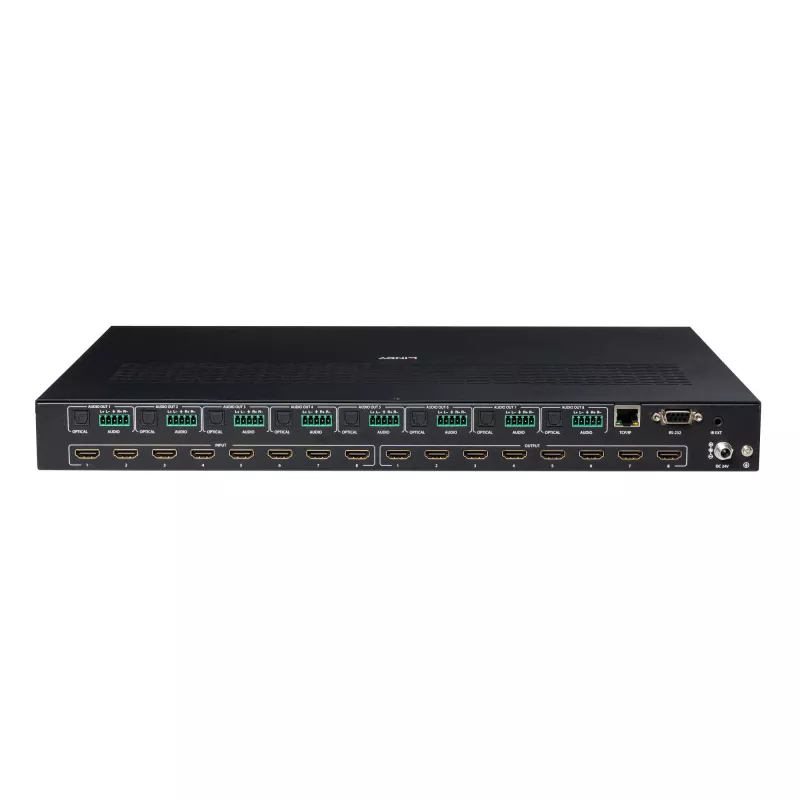

• Outputs: 8 x HDMI (socket), 8 x Phoenix (socket), 8 x TosLink (optical) (socket)
• Control: RS-232 (socket), RJ45 (socket)
• Power supply: 5.5/2.1mm
