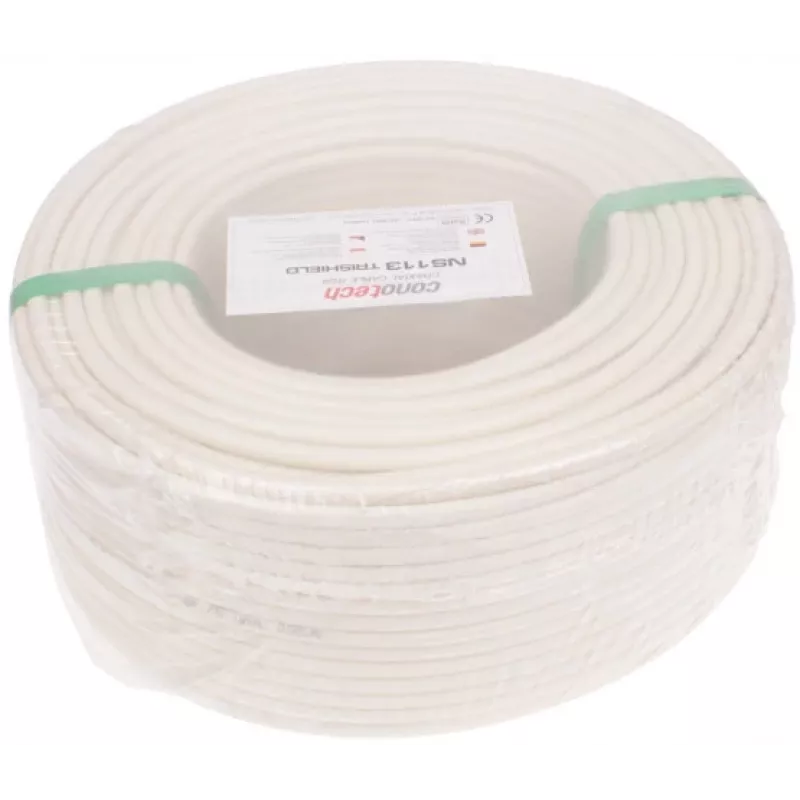

CONOTECH NS-585 Cable coaxial NS113TRI HQ 1m 75 Ohm triple apantallado blanco

Satellite and cable TV installers rely on the CONOTECH NS-585 coaxial cable for dependable signal transmission in residential and commercial setups. This 1-meter cable features a triple-shielded design with a 75 Ohm impedance, ensuring minimal interference and stable performance for DVB-T, DVB-S, CATV, and CCTV applications. The white PVC jacket blends neatly into interior spaces, while the 1.13 mm copper inner conductor and foamed polyethylene dielectric maintain signal integrity across a wide frequency range.

Key specifications

• Impedance: 75 Ohm
• Shielding: Triple (bonded aluminum foil, aluminum braid 77% coverage, aluminum foil)
• Inner conductor: 1.13 mm copper (Cu)
• Dielectric: Foamed polyethylene (PE), 4.8 mm diameter
• Outer jacket: PVC, 6.8 mm diameter, white
• Screening effectiveness: >100 dB (Class A+)
• Attenuation: 8.0 dB @ 200 MHz, 17.5 dB @ 860 MHz, 28.0 dB @ 2150 MHz (per 100 m)
• Return loss: >20 dB
• Length: 1 m (sold per meter)

Why choose it

The triple shielding provides excellent protection against electromagnetic interference, making this cable ideal for areas with high signal noise. The low attenuation values ensure strong signal strength even over longer runs, and the durable PVC jacket withstands everyday handling. Its white color offers a clean look for visible installations.

Ideal use cases

• Connecting satellite dishes to receivers in homes
• Distributing cable TV signals in multi-dwelling units
• Linking CCTV cameras to DVRs for surveillance
• Extending antenna connections for DVB-T reception

Good to know

This cable is sold per meter, so you can order the exact length needed for your project. It does not come with connectors, allowing you to attach the appropriate F-type, BNC, or IEC connectors based on your equipment. The cable's construction meets Class A+ screening standards, ensuring reliable performance in demanding environments.
