Consola de rack ATEN CL3000N 19" (48,3 cm) LCD 1280 x 1024 VGA USB/PS/2 QWERTZ suizo 1U aluminio negro

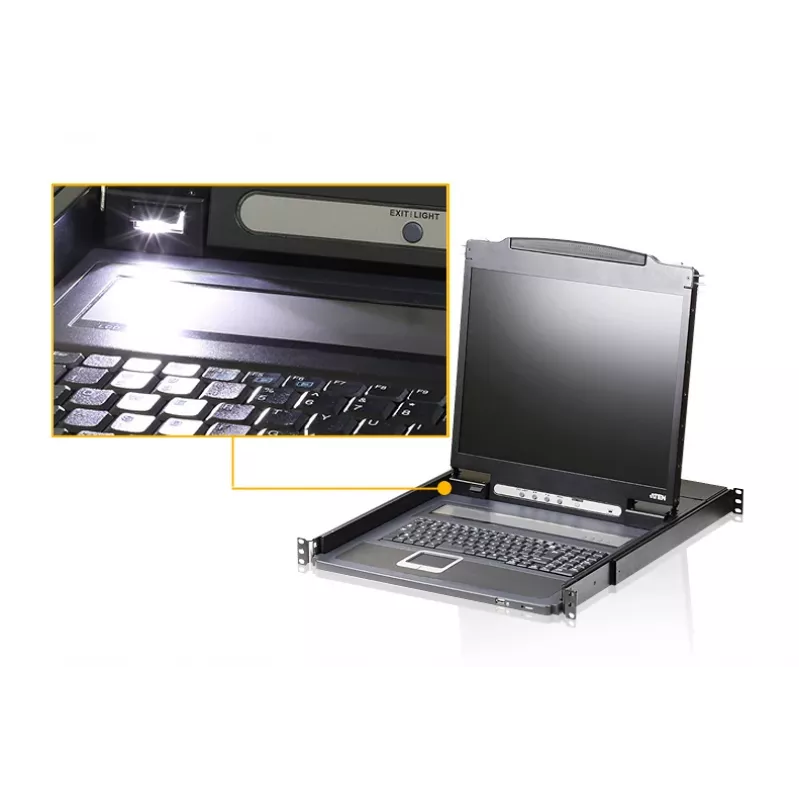

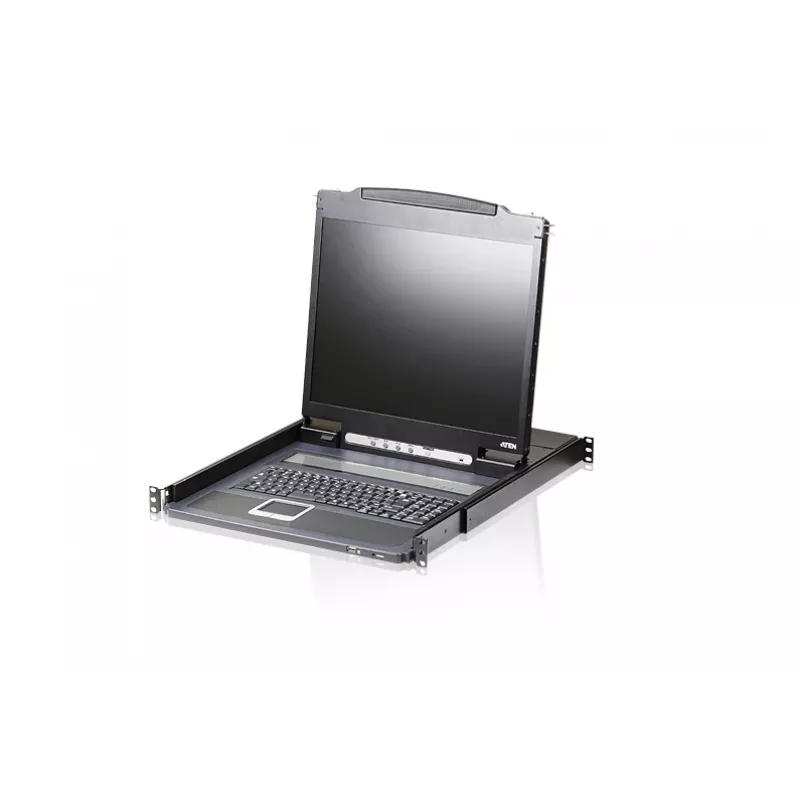

The CL3000 Lightweight PS/2-USB LCD Console is a 1U LCD KVM console that integrates a keyboard, LED-backlit 19" (48.3 cm) monitor and touchpad, designed to serve as the front-end console for compatible KVM switches. The unit offers a space-saving design with a 1280 x 1024 resolution display and a durable aluminium housing in black finish.

Advantages

The console combines keyboard and pointing device connectivity for both USB and PS/2 interfaces and supports VGA video input. Its LED-backlit display provides power-saving illumination with a 250 cd/m² brightness and 1000:1 contrast ratio. Built to withstand harsh environments, the CL3000 has undergone MIL-STD-810G vibration testing (Method 514.6, Procedure I, Category 4) to verify reliable operation under real-world vibration conditions such as vehicle or industrial floor use.

Key specifications

• Display: 48.3 cm (19"), 1280 x 1024 pixels
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Form factor: 1U rackmount
• Keyboard port type: USB, PS/2
• Mouse port type: USB, PS/2
• Video port type: VGA
• Keyboard layout: QWERTZ
• Housing material: Aluminium
• Color: Black

How to use

Install the CL3000 into a standard 19" rack taking up 1U of space. Connect the console to a compatible KVM switch using the appropriate video (VGA) and keyboard/mouse (USB or PS/2) connections. Power the KVM switch and the connected systems according to their instructions. Use the integrated keyboard and touchpad for local control of the selected KVM port and adjust monitor settings as needed for optimal visibility.

Recommendations

For reliable operation in environments with high vibration, verify that cables are secured and routed to minimize movement. Ensure the connected KVM switch supports PS/2 and USB peripheral connections and use the QWERTZ keyboard layout where required by regional settings.
